Malfunction A

To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the voltage is unusually high during various driving conditions such as fuel cut.

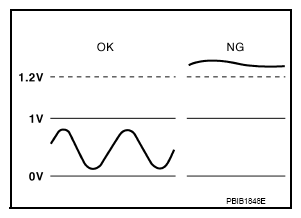

Fig 1: Identifying Waveform (Malfunction A)

Courtesy of NISSAN NORTH AMERICA, INC.
