Assembly Inspection And Adjustment: Backlash
WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

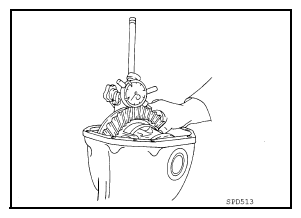

- Fit a dial indicator to the drive gear face to measure the backlash.
Backlash: Refer to "INSPECTION AND ADJUSTMENT "
- If the backlash is outside of the specification, change the thickness of the side bearing adjusting washers.
If the backlash is greater than specification:
Make side bearing adjusting washer thicker on drive gear back side, and side bearing adjusting washer thinner on drive gear tooth side by the same amount. Refer to "INSPECTION AND ADJUSTMENT ".
If the backlash is less than specification:
Make side bearing adjusting washer thinner on drive gear back side, and side bearing adjusting washer thicker on drive gear tooth side by the same amount. Refer to "INSPECTION AND ADJUSTMENT ".
CAUTION: Do not change the total thickness of side bearing adjusting washers as it will change the side bearing preload torque. - If the backlash is outside of the specification, change the thickness of the side bearing adjusting washers.
