AUTOMATIC SPEED CONTROL DEVICE (ASCD): System Diagram

WARNING: This page is about a different car, the 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

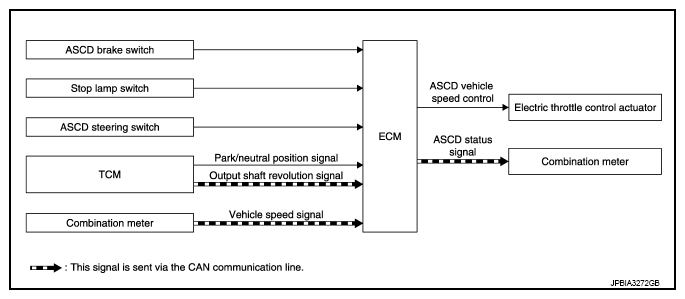

Fig 1: Automatic Speed Control Device System Diagram
G08884406Courtesy of NISSAN NORTH AMERICA, INC.
