Exploded View

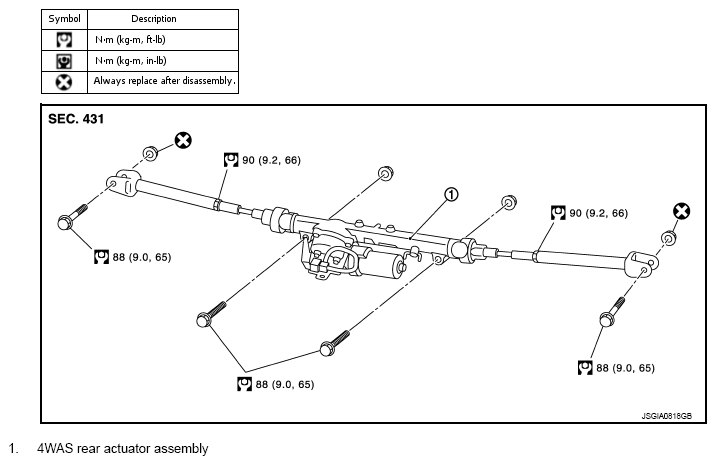

Fig 1: Exploded View Of 4WAS Rear Actuator Assembly With Torque Specifications
G08891653Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
