WITHOUT 4WAS: Exploded View

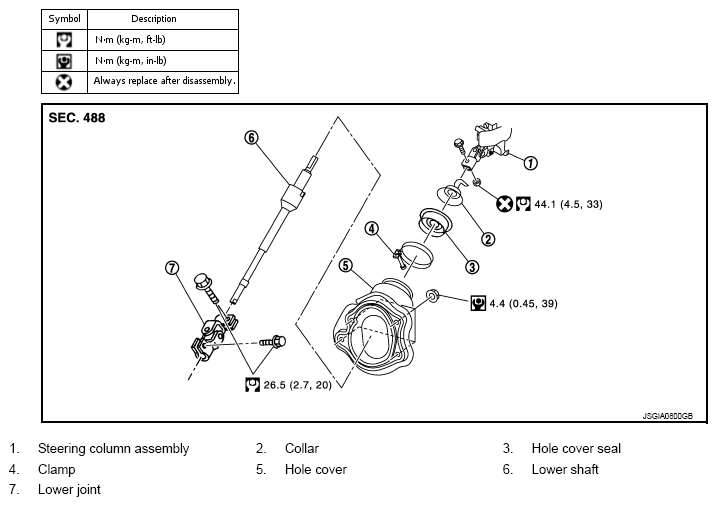

Fig 1: Exploded View Of Lower Shaft With Torque Specifications (Without 4WAS)
G08891512Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
