Exploded View

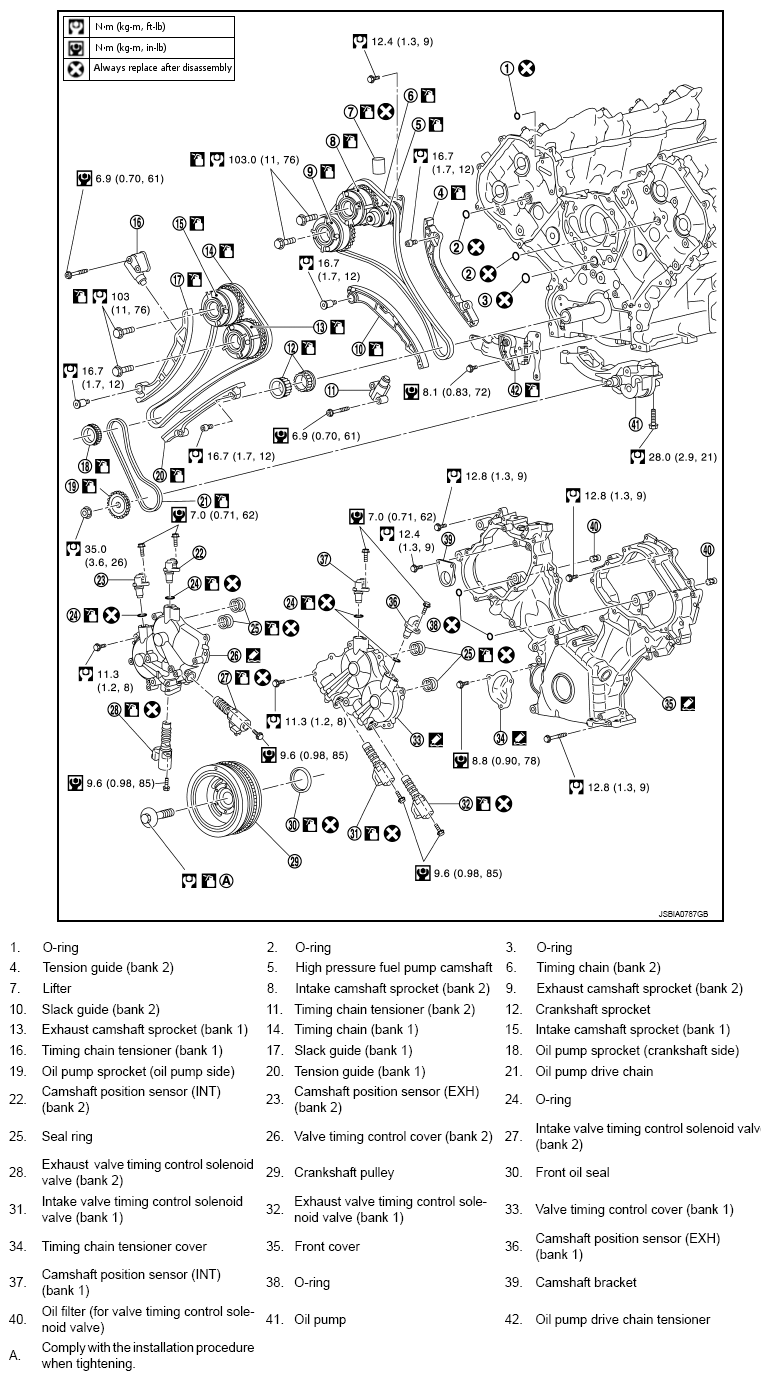

Fig 1: Exploded View Of Timing Chain With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.

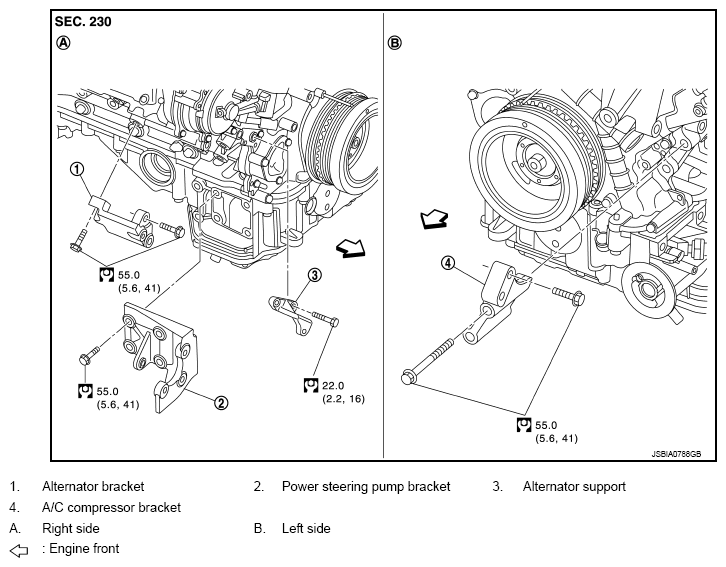

Fig 2: Alternator, Power Steering Pump And A/C Compressor Bracket Bolts With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.
