4WAS SYSTEM: Sectional View

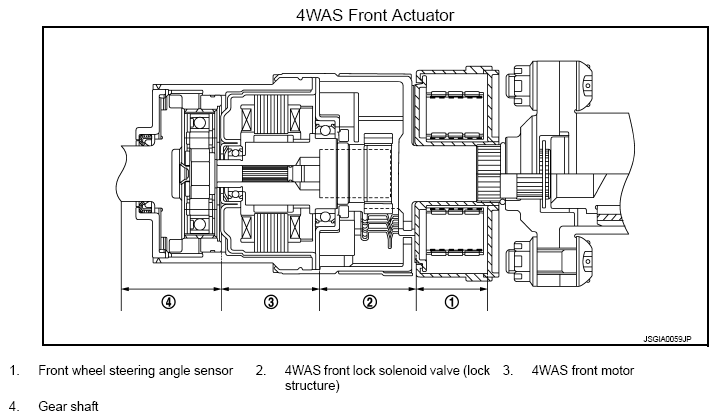

Fig 1: Sectional View Of 4WAS System (Front Actuator)
G08891639Courtesy of NISSAN NORTH AMERICA, INC.

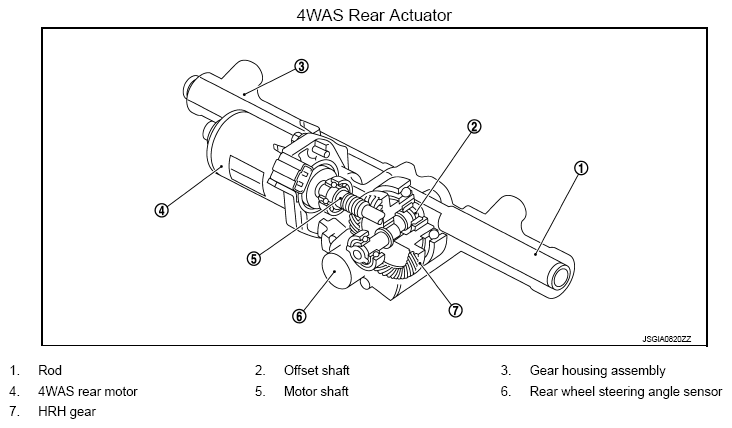

Fig 2: Sectional View Of 4WAS System (Rear Actuator)
G08891640Courtesy of NISSAN NORTH AMERICA, INC.
