Heater & Air Conditioning Control System
>>
System Description
>>
System
>>
Front Automatic Air Conditioning System
>>
FRONT AUTOMATIC AIR CONDITIONING SYSTEM: Door Control
>>
Switches And Their Control Function
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Switches And Their Control Function
With ACCS (Advanced Climate Control System)

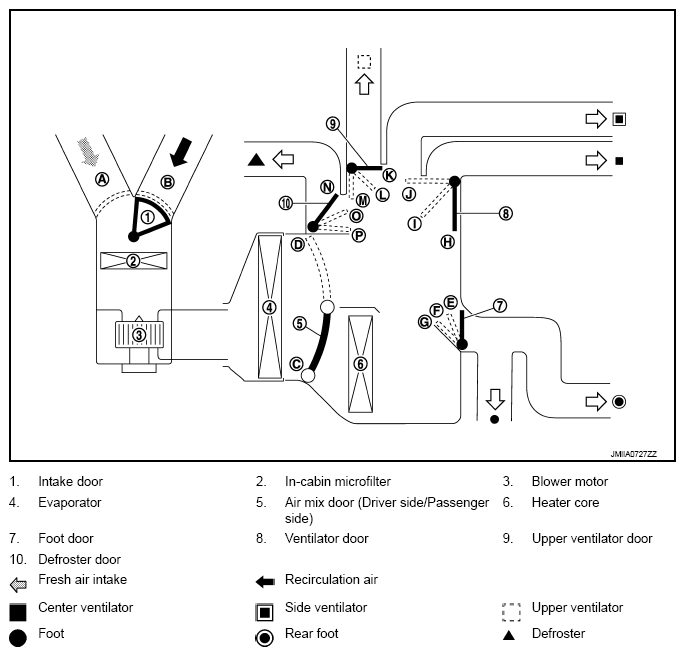

Fig 1: Switch Control Operation Diagram (With Advanced Climate Control System)
Courtesy of NISSAN NORTH AMERICA, INC.

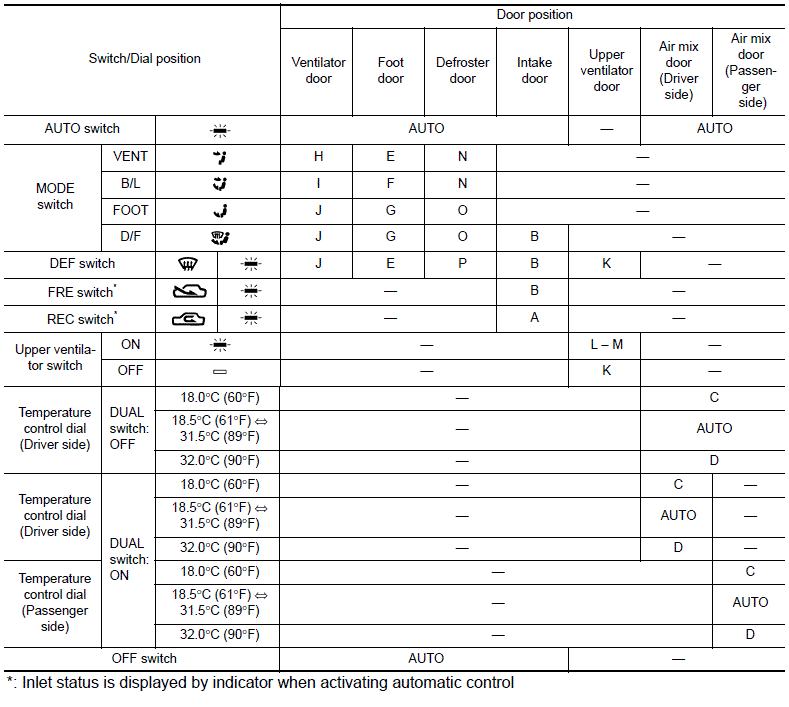

Fig 2: Switch Control Operation Chart (With Advanced Climate Control System)
Courtesy of NISSAN NORTH AMERICA, INC.
Without ACCS (Advanced Climate Control System)

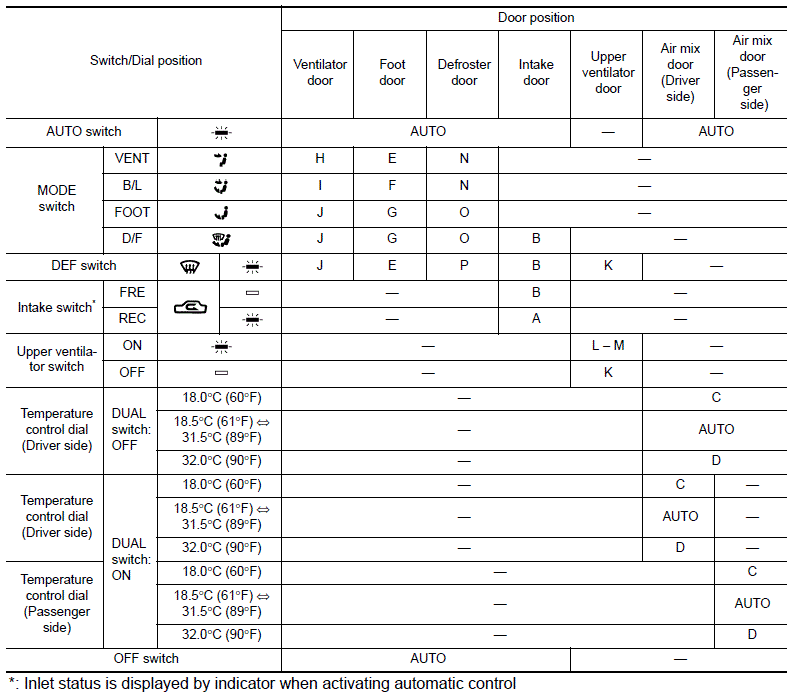

Fig 3: Switch Control Operation Chart (Without Advanced Climate Control System)
Courtesy of NISSAN NORTH AMERICA, INC.
