Power Window System: Wiring Diagram

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

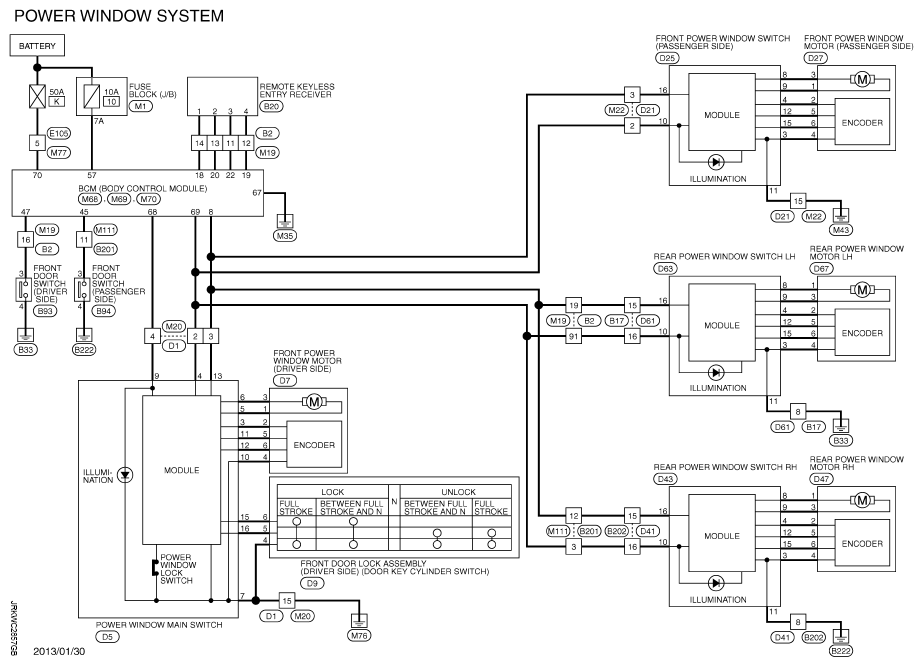

Fig 1: Power Window System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
