Engine Room Compartment

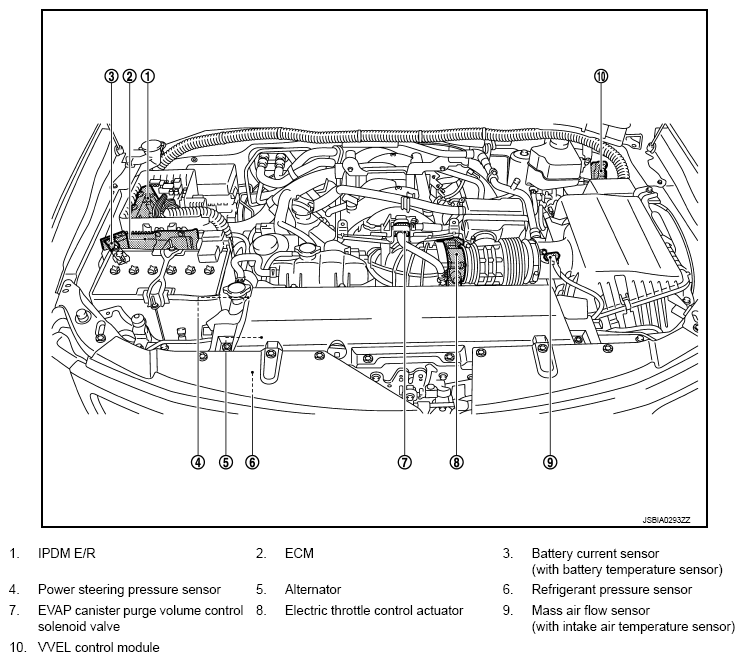

Fig 1: Engine Room Compartment Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
