Engine Control System - Introduction
>>
System Description
>>
System
>>
Evaporative Emission System
>>
EVAPORATIVE EMISSION SYSTEM: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EVAPORATIVE EMISSION SYSTEM: System Diagram

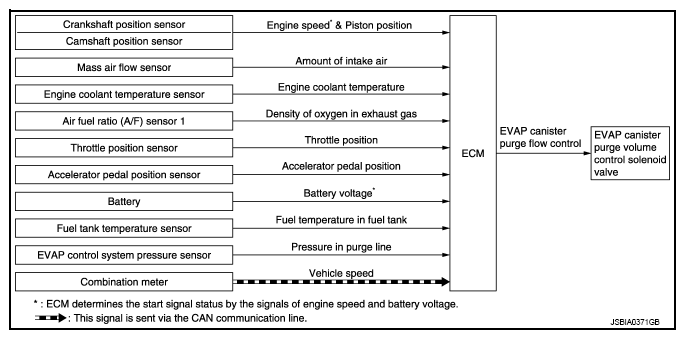

Fig 1: Evaporative Emission System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
