Exploded View

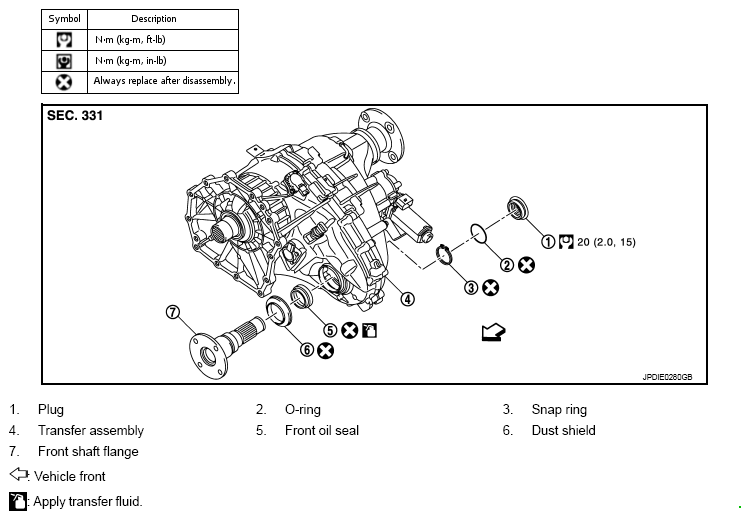

Fig 1: Exploded View Of Front Oil Seal With Torque Specifications
G08855500Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
