Removal and Installation: Installation: Notes

Note the following, and install in the reverse order of removal.

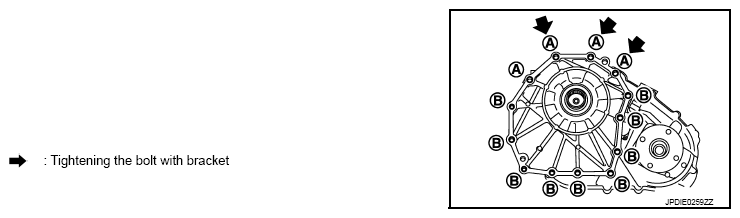

• When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.

  Bolt symbol	A	B
  Insertion direction	Transfer to transmission	Transmission to transfer

  Fig 1: Locating Transfer To Transmission Mounting Bolts

  Courtesy of NISSAN NORTH AMERICA, INC.
• When installing transfer breather hose assembly, check that there are no bend and twist on the transfer breather hose.

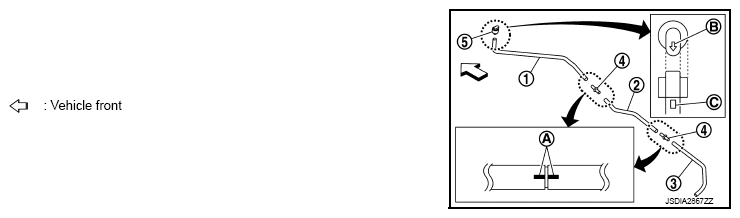

• Align paint marks (A) to connect breather hoses (1), (2), and (3) with breather connectors (4) in numerical order.

  Align arrow mark (B) of breather (5) with mark "C" of breather hose.

  Fig 2: Identifying Breather Hoses To Breather Connectors Aligning Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.

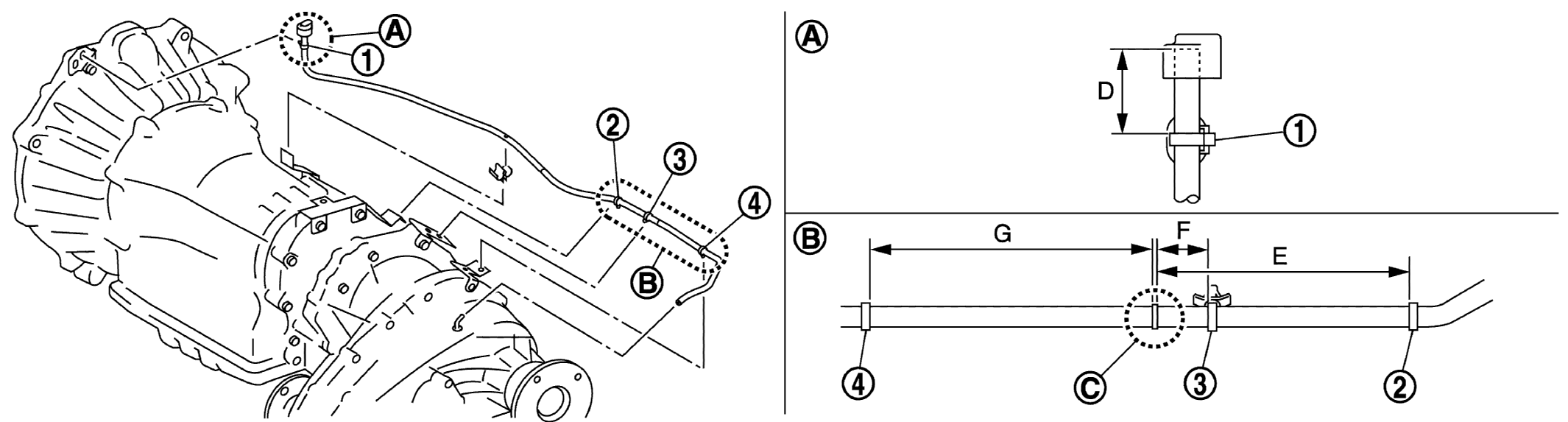

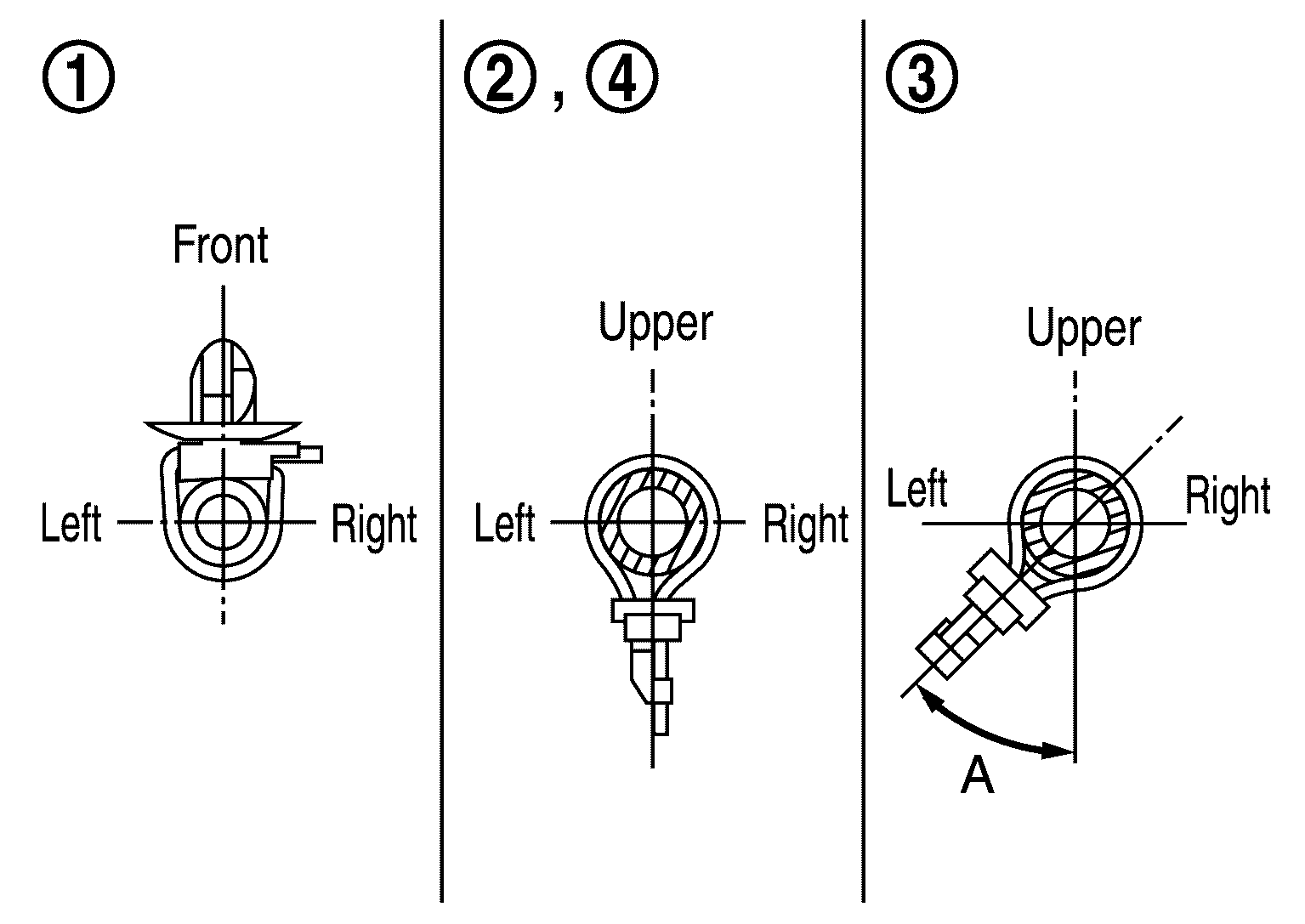

• Install hose clip (1) to the position where the distance from the breather side hose end is dimension "D." Install hose clip (2), (3), and (4) to the positions where the distance from breather hose joint (C) is dimension "E," "F," and "G," respectively, as shown in the figure below.
  Fig 3: Identifying Hose Clip Installation Position

  Courtesy of NISSAN NORTH AMERICA, INC.

  Dimension

  D: 26.3 mm (1.035 in)

  E: 121.7 mm (4.791 in)

  F: 25.0 mm (0.984 in)

  G: 143.0 mm (5.630 in)
