Exploded View: Disassembly

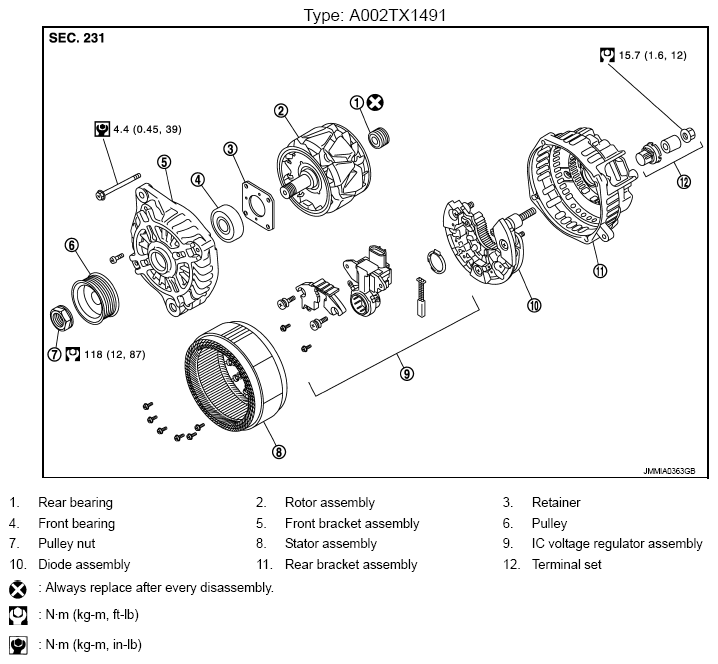

Fig 1: Disassembled View Of Alternator With Torque Specifications (Type A002TX1491)
G08878493Courtesy of NISSAN NORTH AMERICA, INC.
