Component Inspection

  1. CHECK ENGINE OIL TEMPERATURE (EOT) SENSOR
    1. Turn ignition switch OFF.
    2. Disconnect EOT sensor harness connector.
    3. Remove EOT sensor. Refer to "EXPLODED VIEW ".
    4. Check resistance between EOT sensor terminals by heating with hot water as shown in the figure below.
      Terminals Condition Resistance (kΩ)
      1 and 2 Temperature [°C (°F)] 20 (68) 2.35 - 2.73
      50 (122) 0.68 - 1.00
      90 (194) 0.236 - 0.260

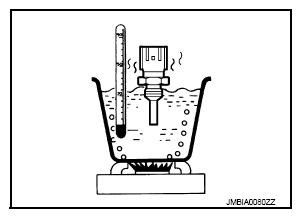

      Fig 1: Checking Engine Oil Temperature Sensor
      G08855387Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace EOT sensor. Refer to "EXPLODED VIEW ".
