Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Door & Lock
>>
System Description
>>
Intelligent Key System
>>
Remote Keyless Entry Function
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

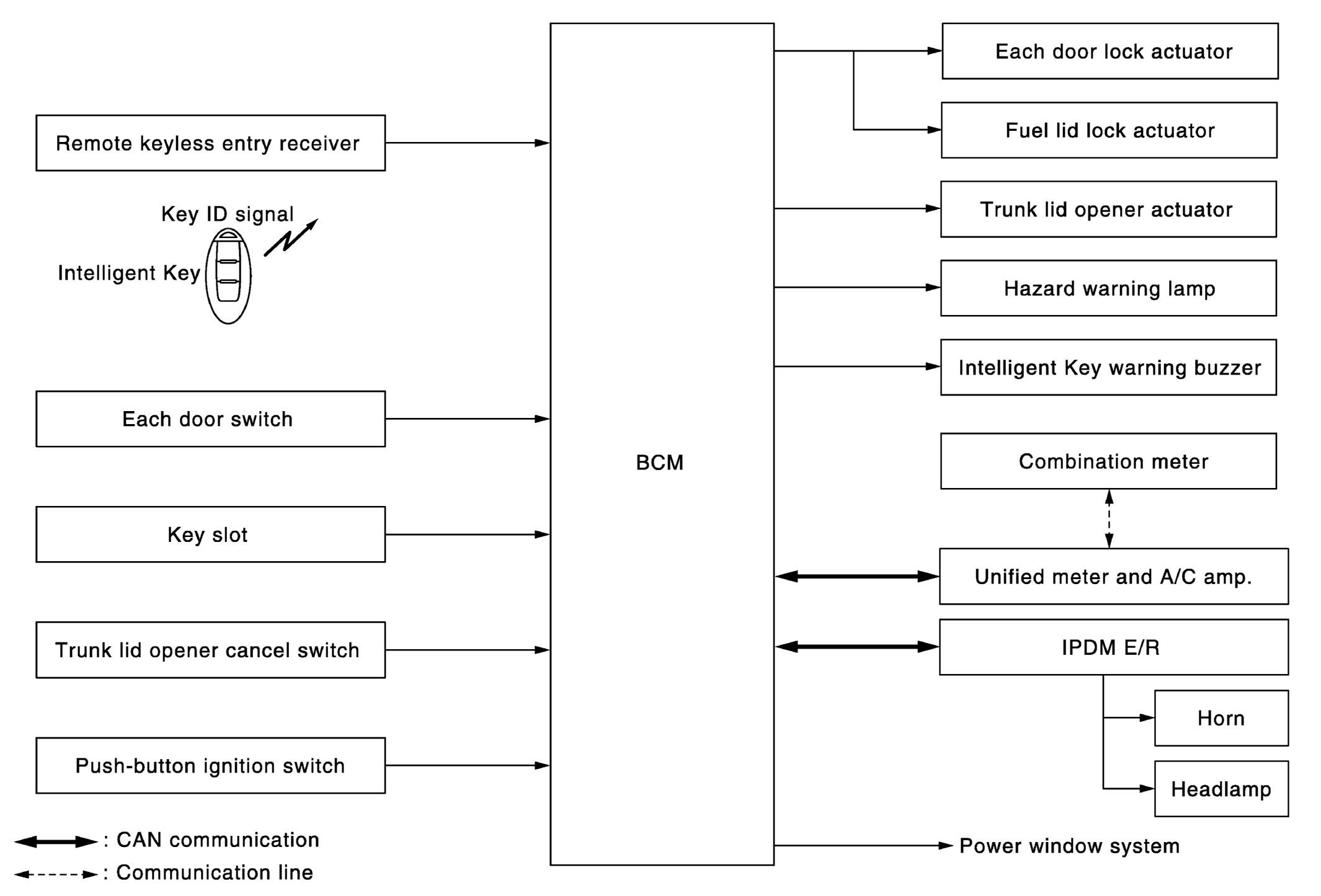

Fig 1: Remote Keyless Entry Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
