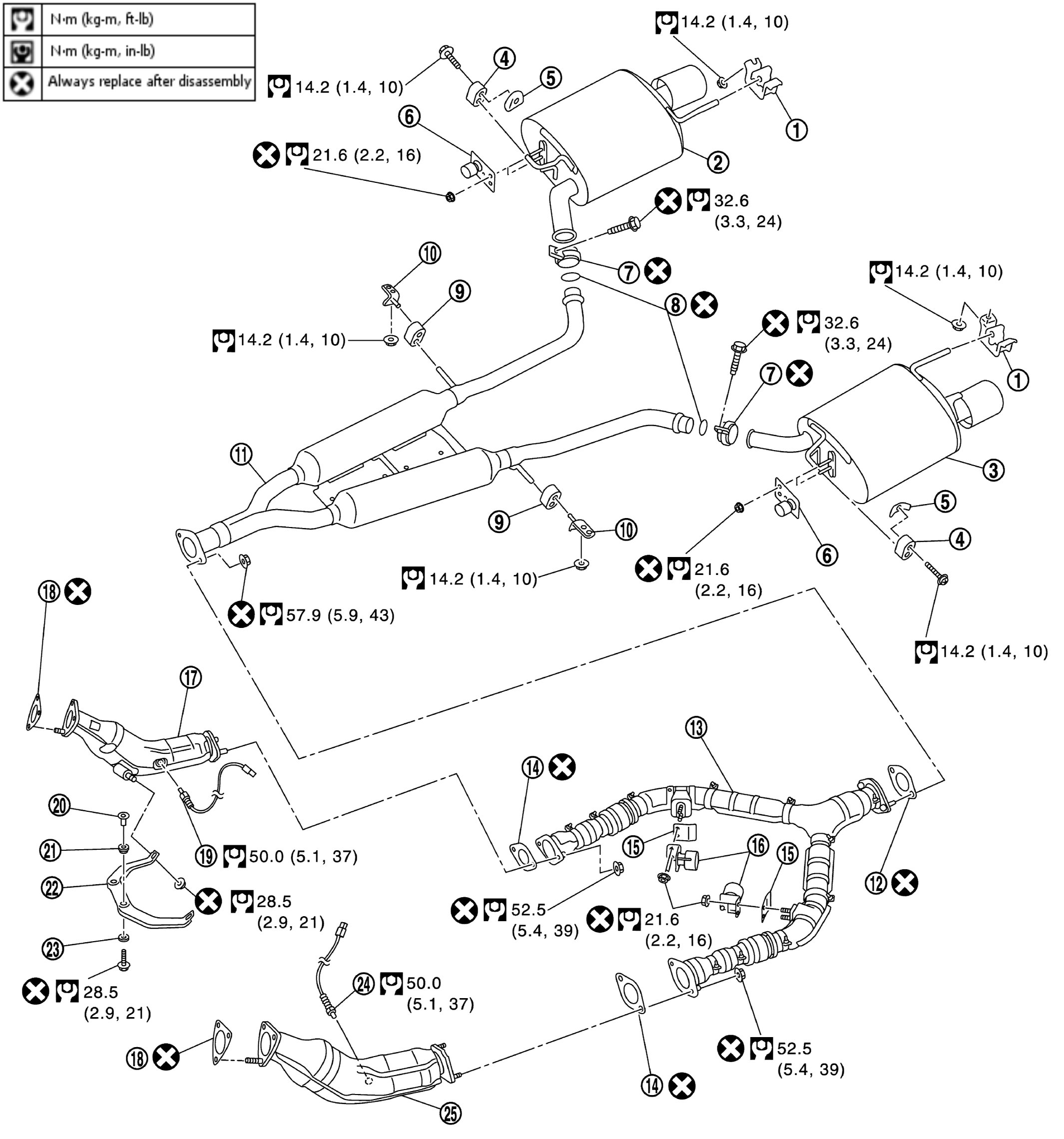

| 1. |
Mounting rubber |
2. |
Main muffler (RH) |
3. |
Main muffler (LH) |
| 4. |
Mounting rubber |
5. |
Collar |
6. |
Dynamic damper |
| 7. |
Clamp |
8. |
Gasket |
9. |
Mounting rubber |
| 10. |
Mounting bracket |
11. |
Center muffler |
12. |
Gasket |
| 13. |
Exhaust front tube |
14. |
Gasket |
15. |
Insulator |
| 16. |
Dynamic damper |
17. |
Three way catalyst (bank 1) |
18. |
Gasket |
| 19. |
Heated oxygen sensor 2 (bank 1) |
20. |
Collar |
21. |
Grommet |
| 22. |
Exhaust mounting bracket |
23. |
Grommet |
24. |
Heated oxygen sensor 2 (bank 2) |
| 25. |
Three way catalyst (bank 2) |
|
|
|
|
| Refer to COMPONENTS
for symbols in the figure. |
