Exploded View With Torque Specifications

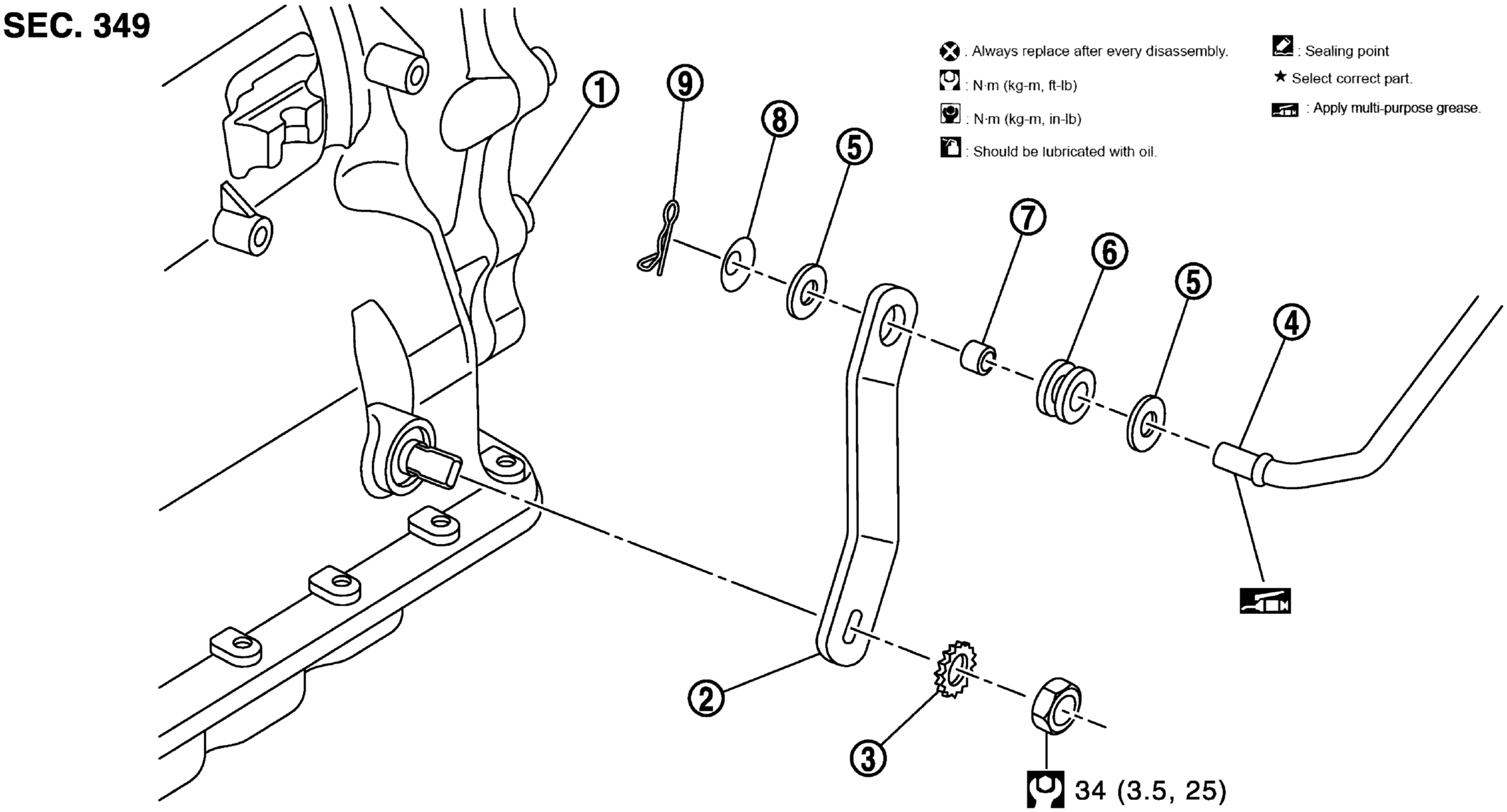

Fig 1: Exploded View Of Control Rod With Torque Specifications
G08740187Courtesy of NISSAN NORTH AMERICA, INC.
1. A/T assembly 2. Manual lever 3. Lock washer
4. Control rod 5. Washer 6. Insulator
7. Collar 8. Conical washer 9. Snap pin
: Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
