Vehicle Security System Wiring Diagram

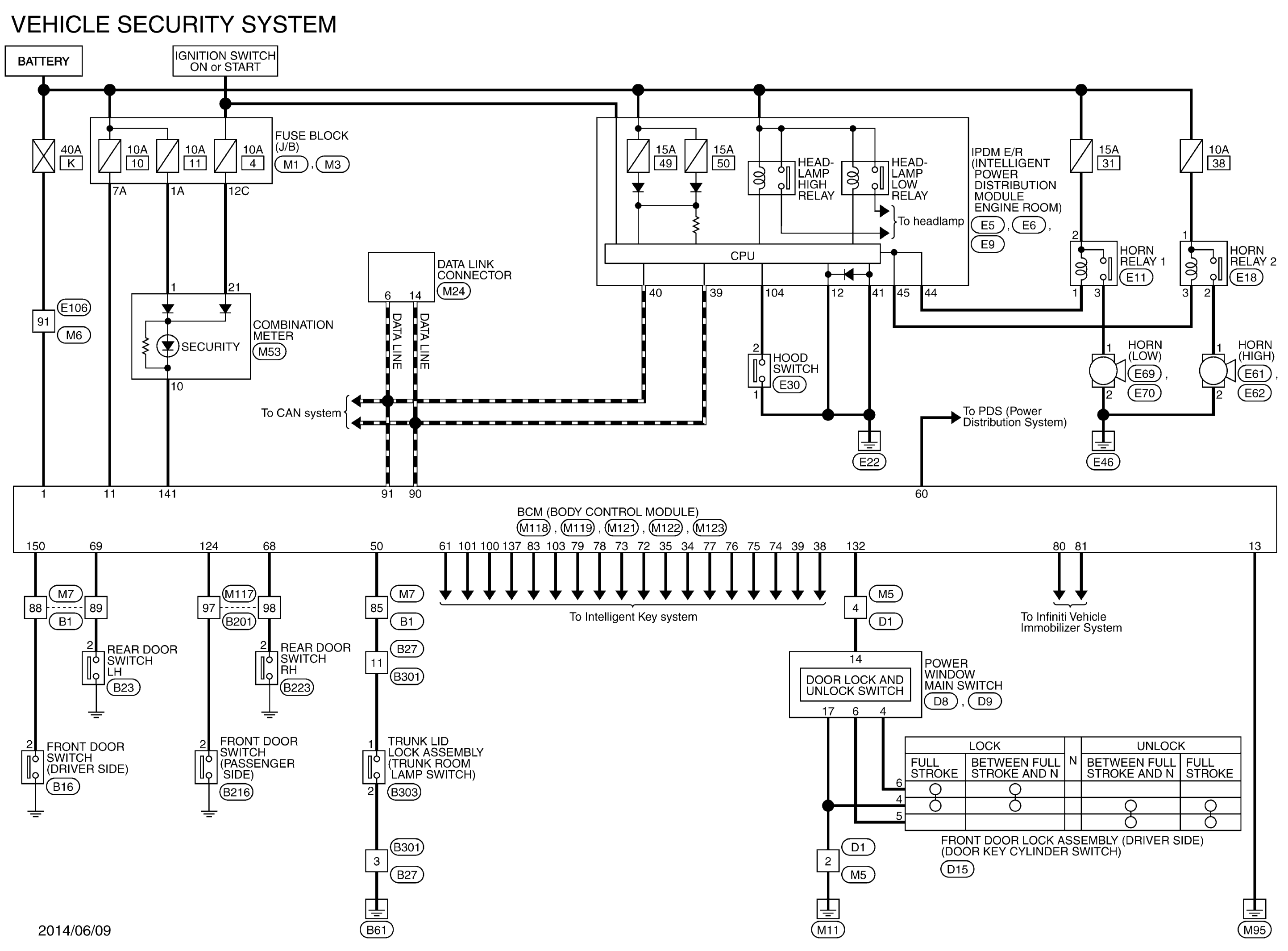

Fig 1: Vehicle Security System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
