Exploded View With Torque Specifications

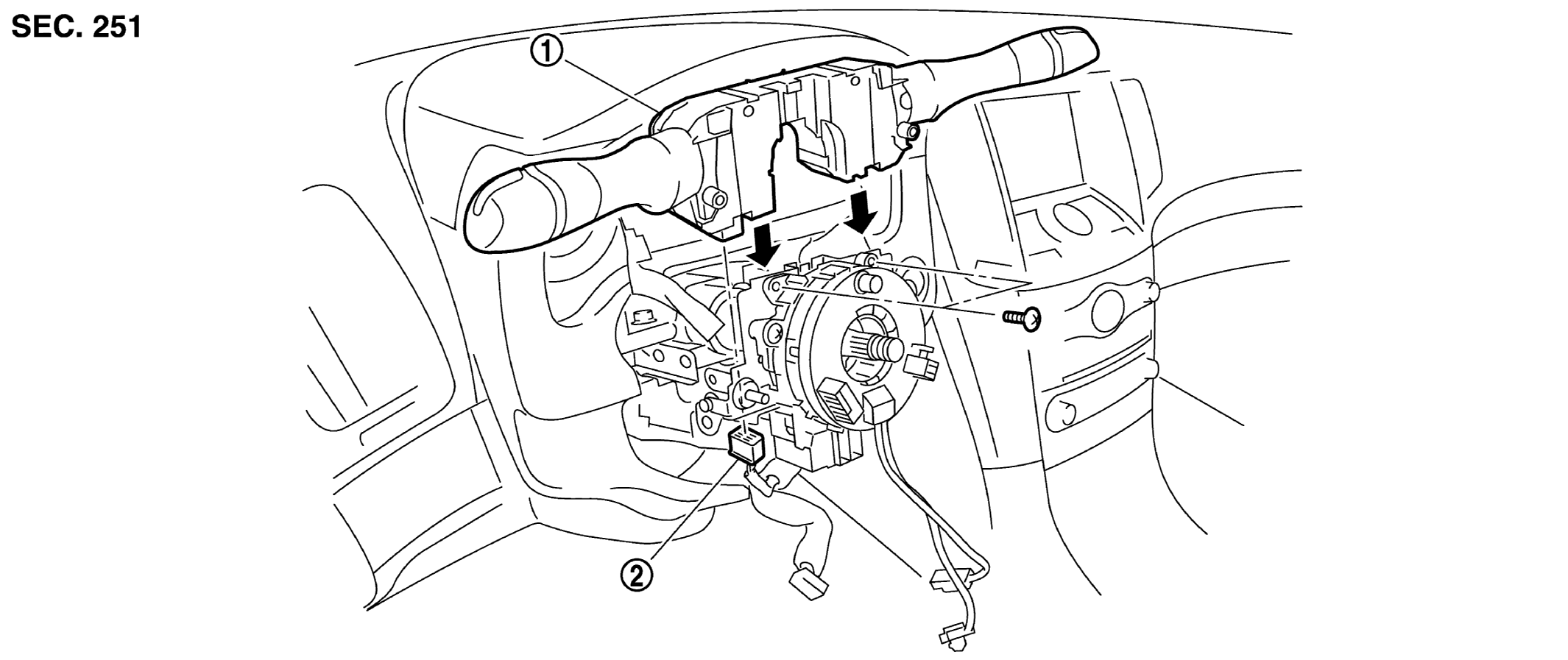

Fig 1: Installing Combination Switch
G08447986Courtesy of NISSAN NORTH AMERICA, INC.
1. Combination switch 2. Combination switch connector
