System Diagram

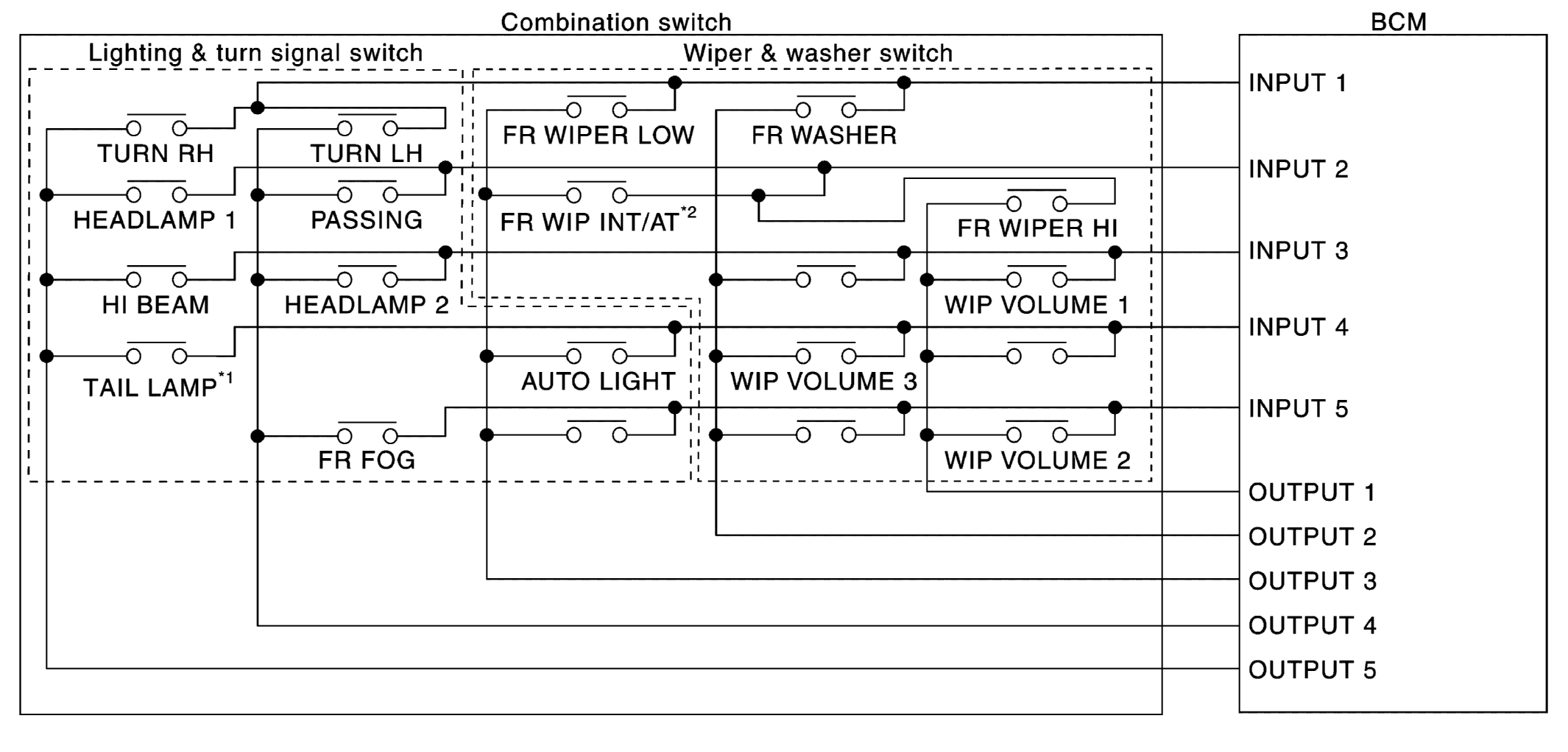

Fig 1: Combination Switch Reading System Diagram
G08220470Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • * 1: TAIL LAMP switch links lighting switch 1ST position.
  • * 2: "FR WIP INT/AT" is FR WIPER INT/AUTO.
