Exploded View With Torque Specifications

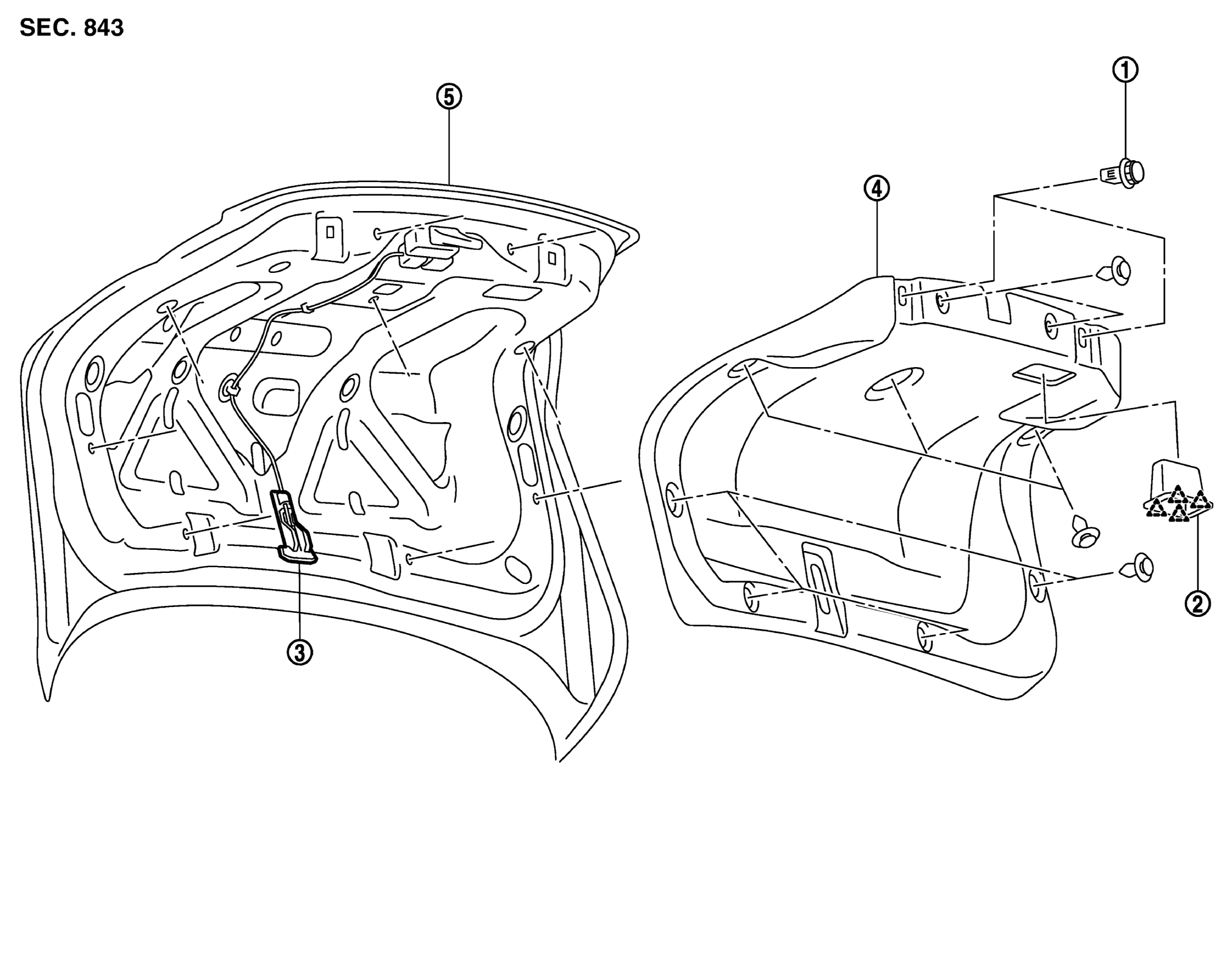

Fig 1: Exploded View Of Trunk Lid Trim
G08459069Courtesy of NISSAN NORTH AMERICA, INC.
1. Trunk lid bumper rubber 2. Trunk lid pull handle 3. Emergency handle
4. Trunk lid finisher inner 5. Trunk lid
  : Pawl
