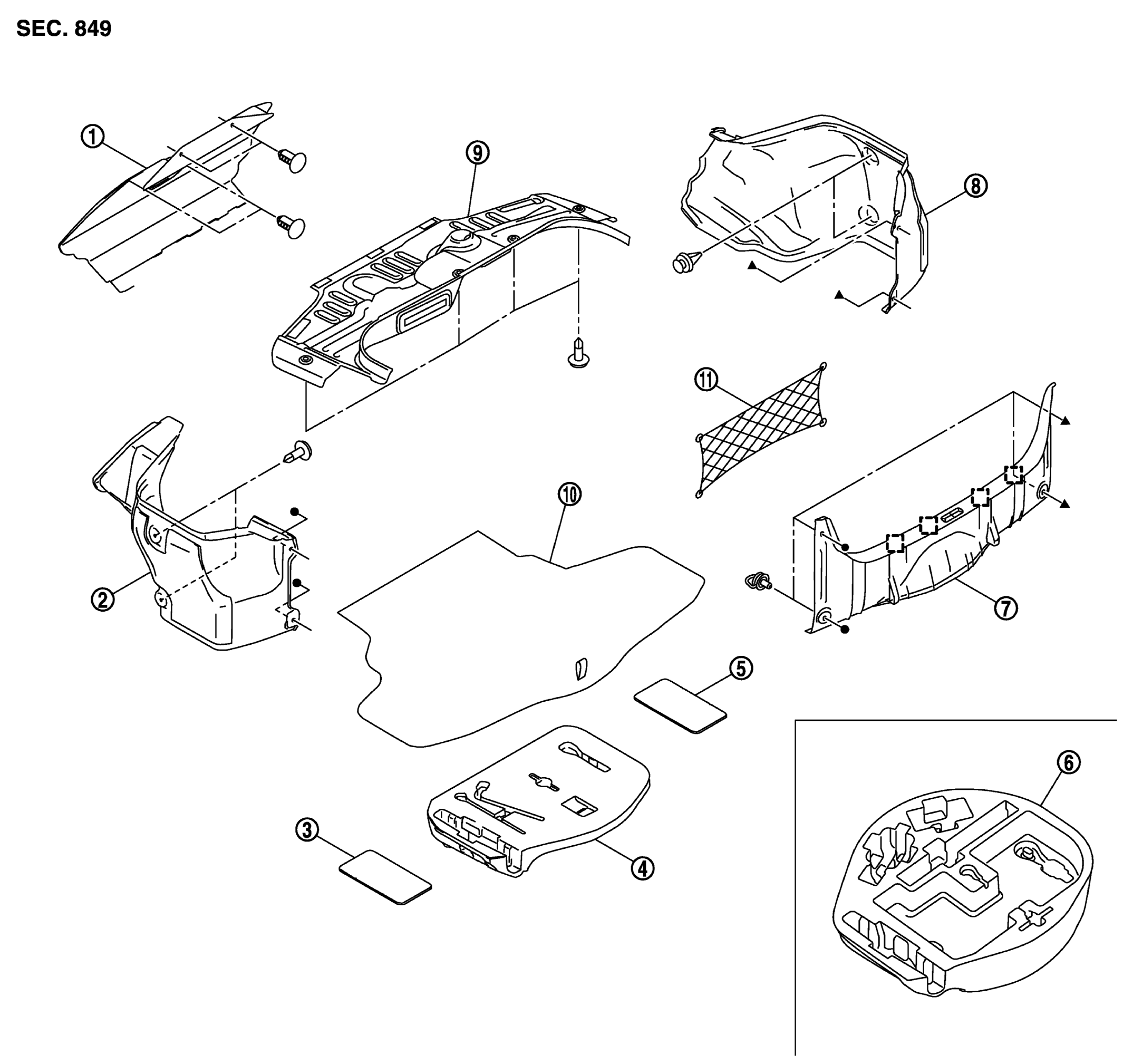

Exploded View With Torque Specifications
| 1. | Trunk front finisher | 2. | Rear wheel house finisher LH | 3. | Trunk floor felt LH |
| 4. | Trunk center box | 5. | Trunk floor felt RH | 6. | Trunk center box (For temporary spire tire) |
| 7. | Trunk rear plate | 8. | Rear wheel house finisher RH | 9. | Trunk front finisher upper |
| 10. | Trunk floor carpet | 11. | Trunk net | ||
| : Metal clip | |||||
| , : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
