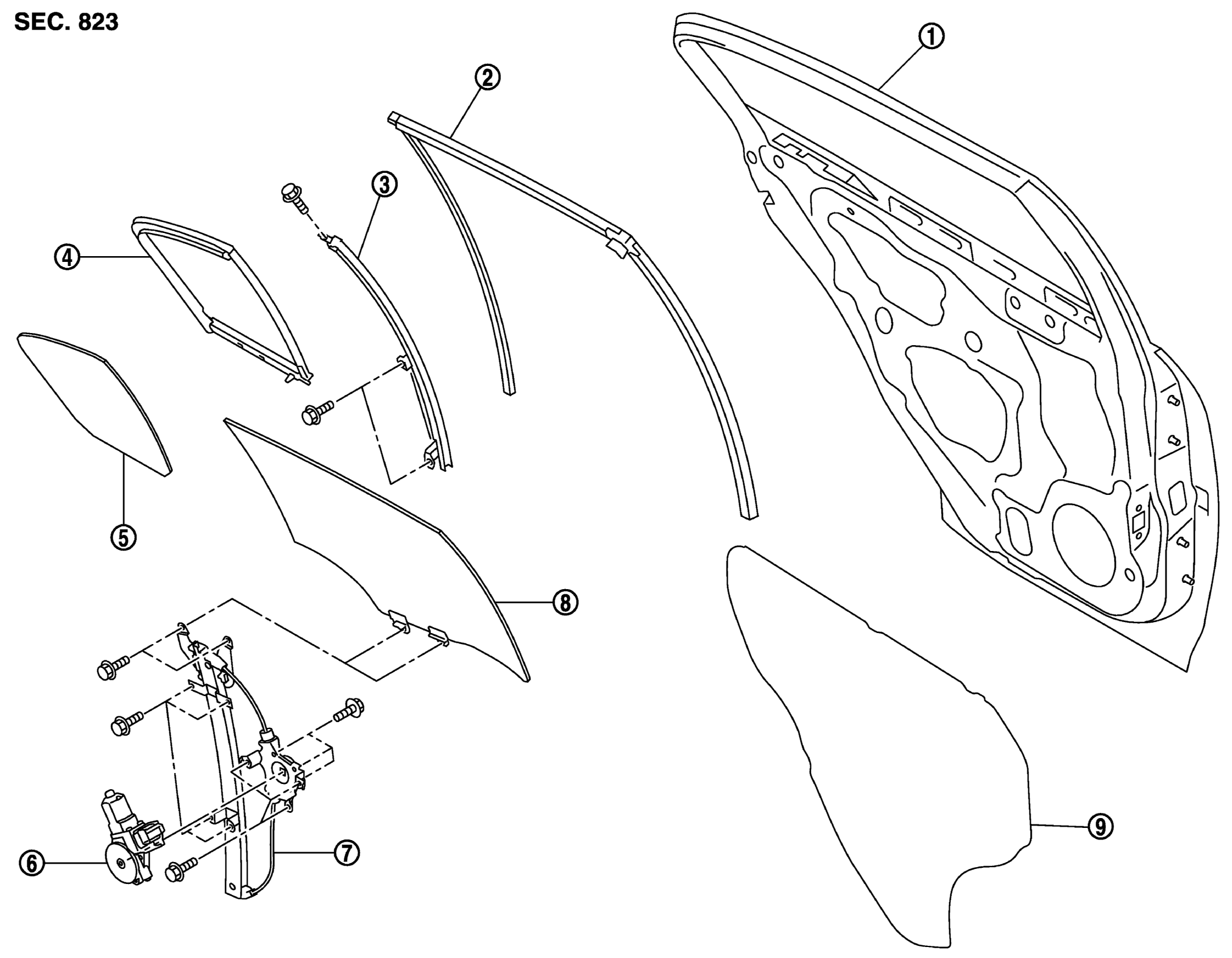

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rear door panel |
2. |
Door glass run |
3. |
Partition sash |
| 4. |
Partition glass run |
5. |
Partition glass |
6. |
Power window motor |
| 7. |
Regulator assembly |
8. |
Door glass |
9. |
Sealing screen |
