Exploded View With Torque Specifications

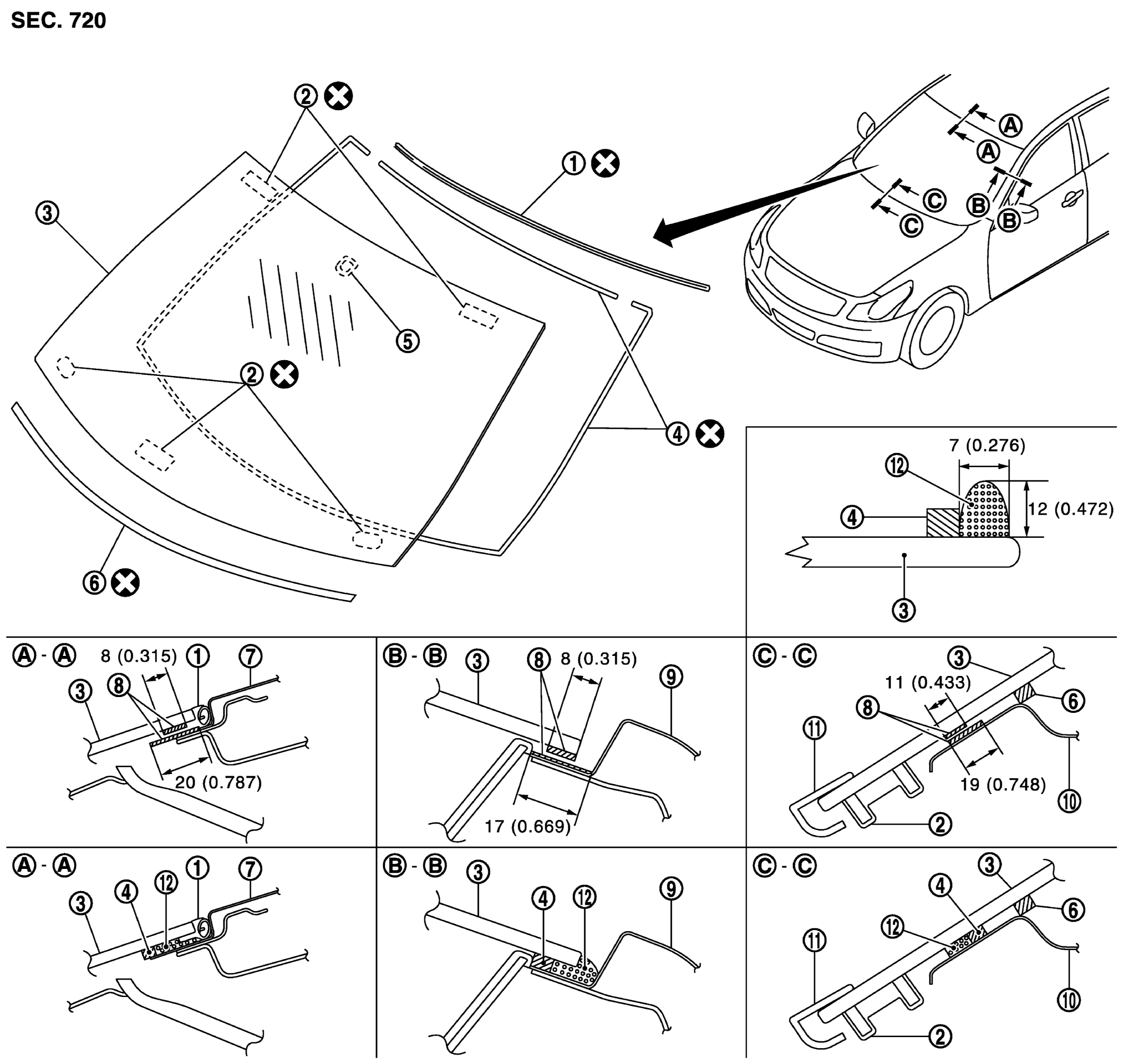

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield molding	2.	Spacer	3.	Windshield glass
4.	Dam rubber (upper, lower)	5.	Mirror base	6.	Insulator
7.	Roof panel	8.	Primer	9.	Body side outer panel
10.	Dash upper cross member	11.	Cowl top cover	12.	Adhesive
Unit : mm (in)
	: Always replace after every disassembly.
