Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (Power Distribution System)
>>
DTC/Circuit Diagnosis
>>
Power Distribution System
>>
PDS (Power Distribution System) Connectors
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
PDS (Power Distribution System) Connectors

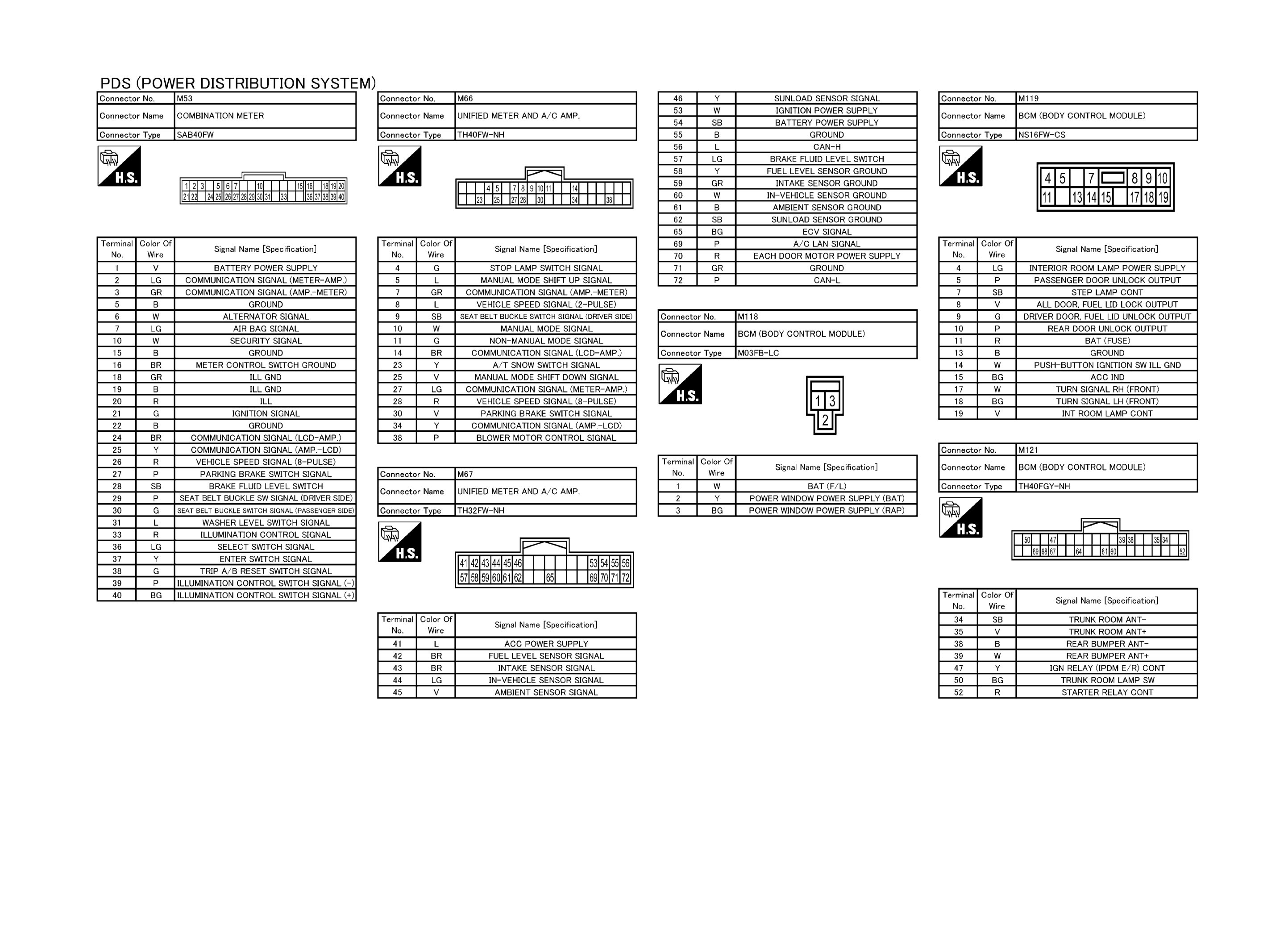

Fig 1: PDS (Power Distribution System) Connectors (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

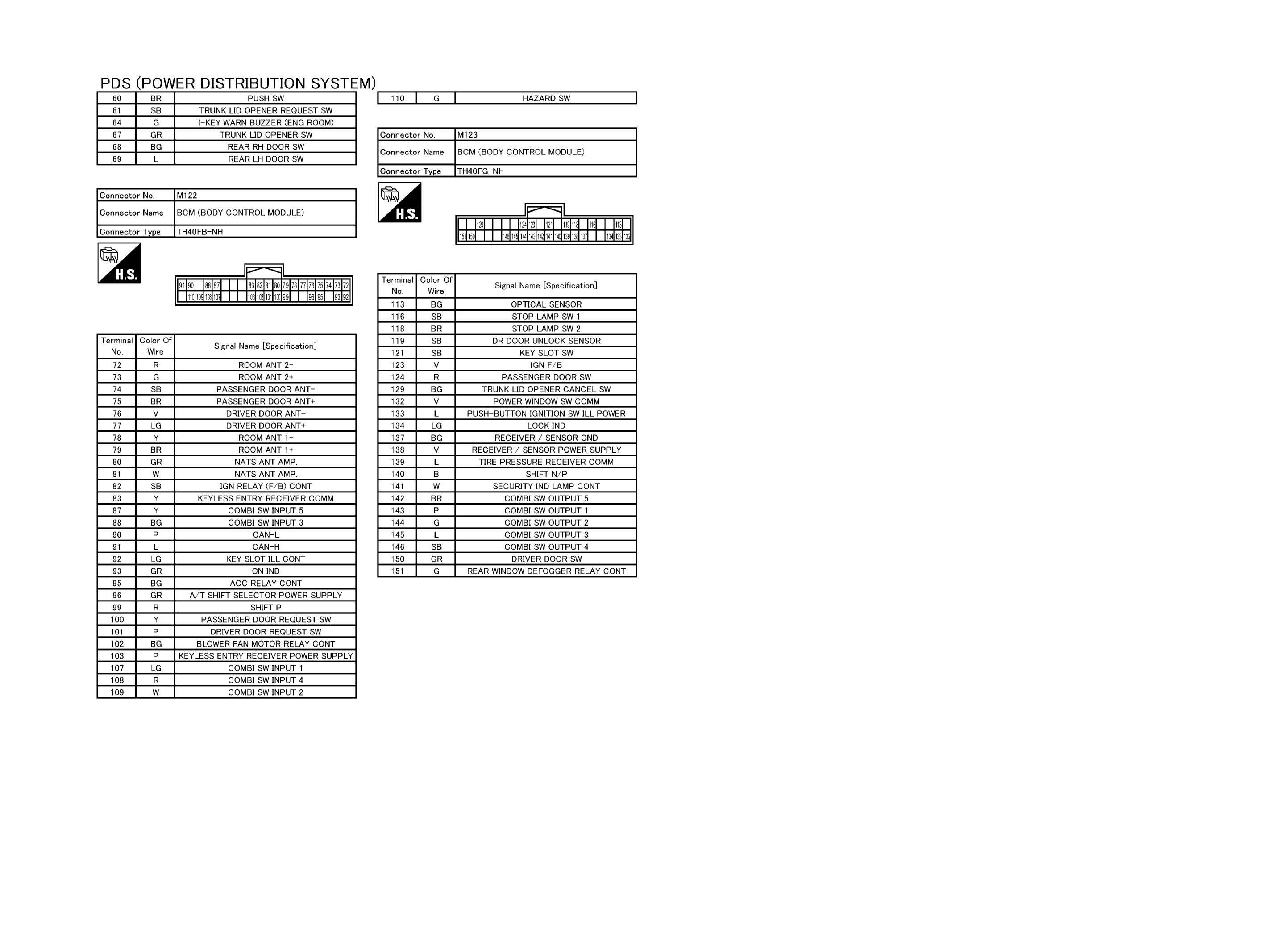

Fig 2: PDS (Power Distribution System) Connectors (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

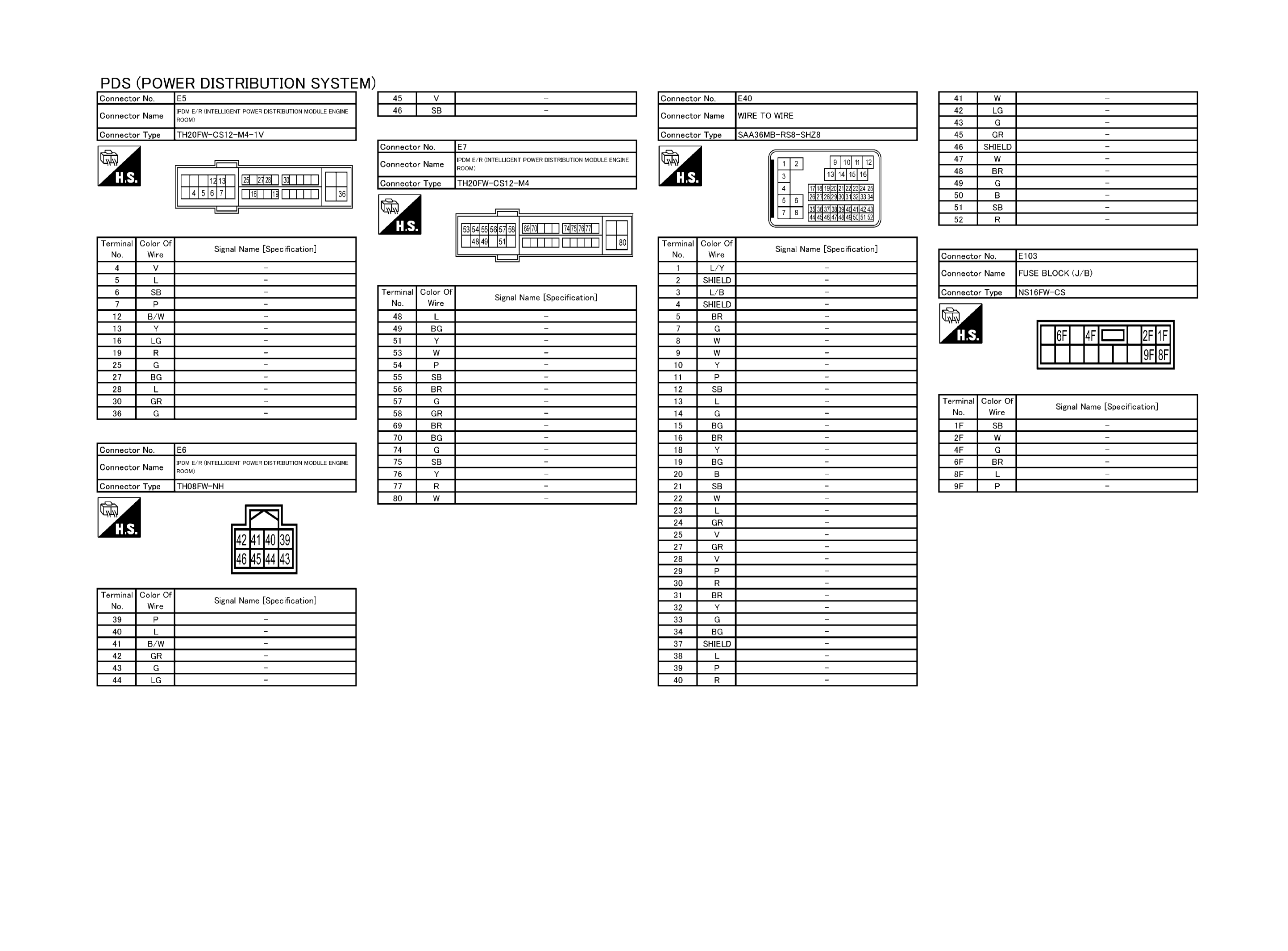

Fig 3: PDS (Power Distribution System) Connectors (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

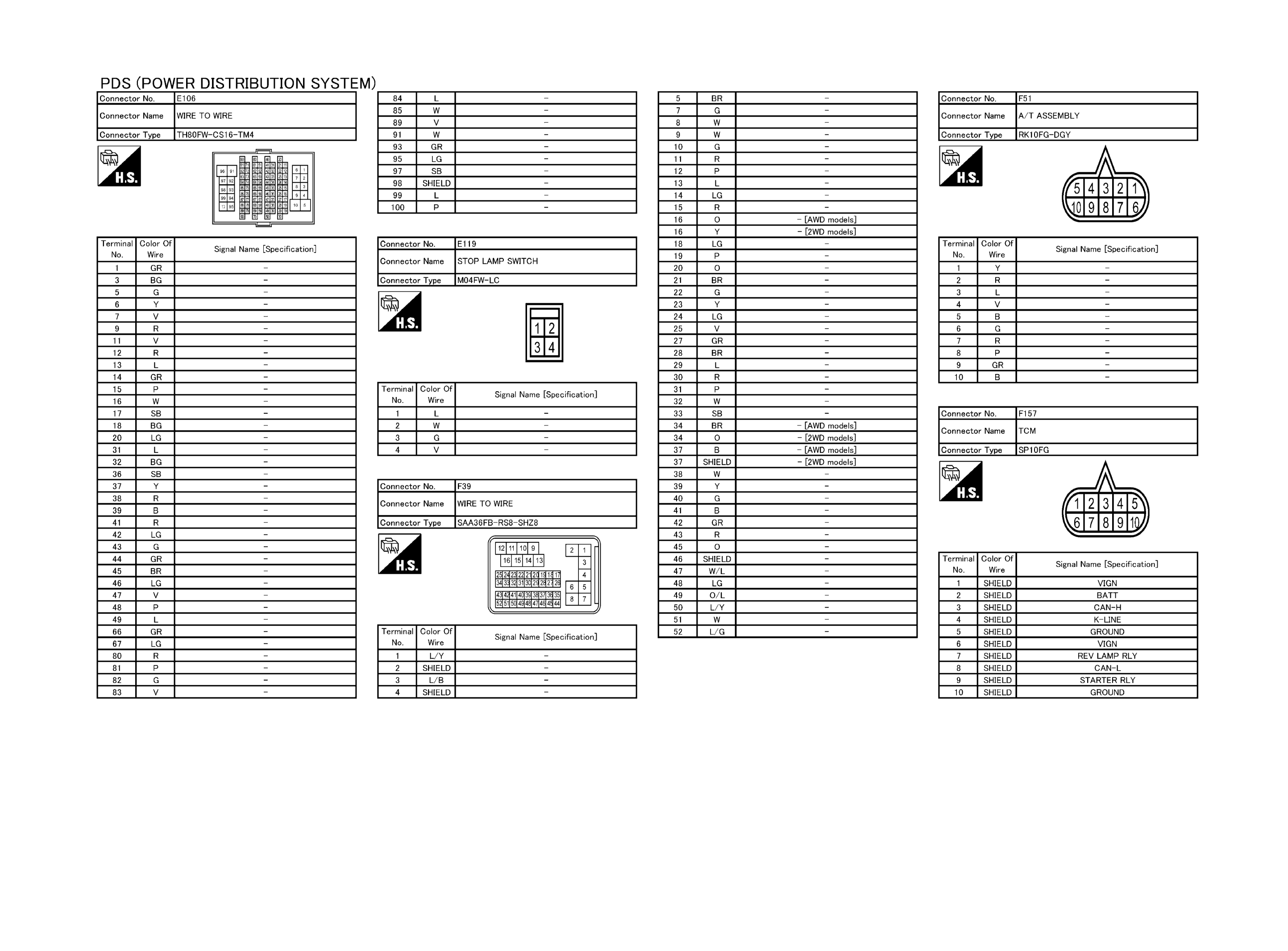

Fig 4: PDS (Power Distribution System) Connectors (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

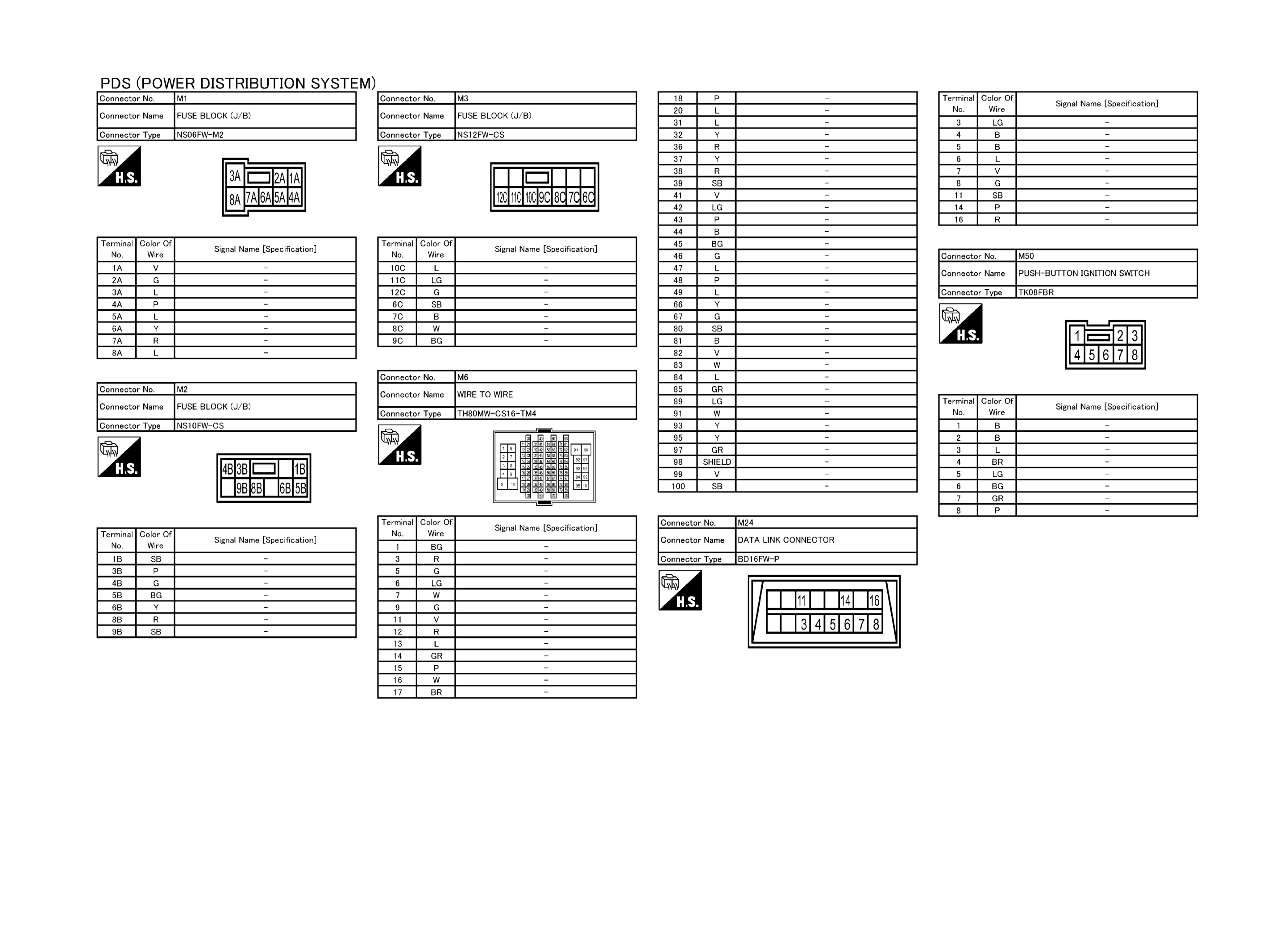

Fig 5: PDS (Power Distribution System) Connectors (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
