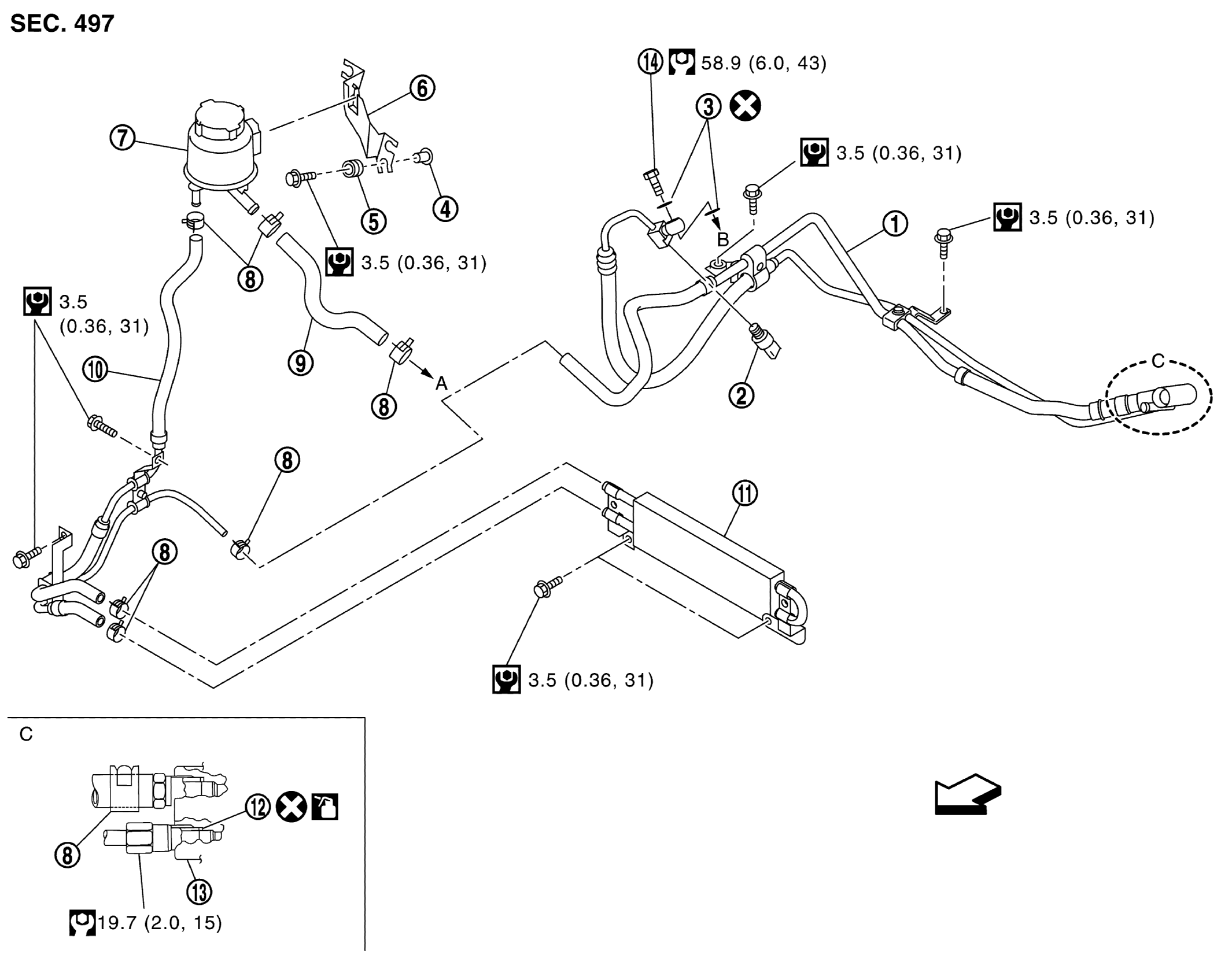

Exploded View With Torque Specifications
| 1. | High pressure piping and low pressure piping | 2. | Pressure sensor | 3. | Copper washer |
| 4. | Collar | 5. | Bushing | 6. | Reservoir tank bracket |
| 7. | Reservoir tank | 8. | Clamp | 9. | Suction hose |
| 10. | Return hose | 11. | Oil cooler | 12. | O-ring |
| 13. | Gear-sub assembly | 14. | Eye bolt | ||
| A. | To power steering oil pump suction hose. | ||||
| B. | To power steering oil pump. | ||||
| : Vehicle front | |||||
| : Apply power steering fluid. | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
