Exploded View With Torque Specifications

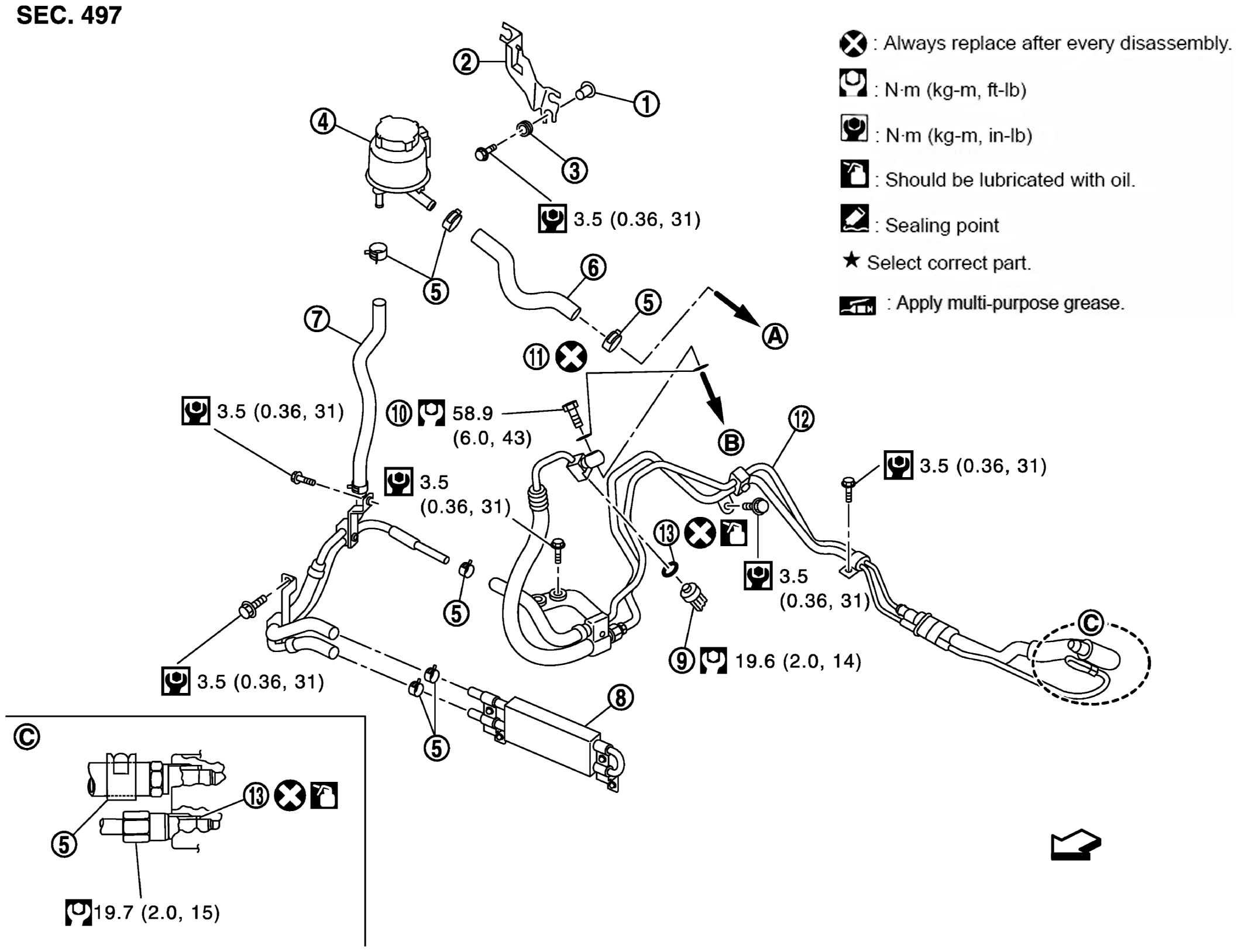

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Collar	2.	Reservoir tank bracket	3.	Bushing
4.	Reservoir tank	5.	Clamp	6.	Suction hose
7.	Return hose	8.	Oil cooler	9.	Pressure sensor
10.	Eye bolt	11.	Copper washer	12.	High pressure piping and low pressure piping
13.	O-ring Gear-sub assembly
A.	To power steering oil pump suction hose.
B.	To power steering oil pump.
: Vehicle front
Refer to COMPONENTS for symbols not described on the above.
