Exploded View With Torque Specifications

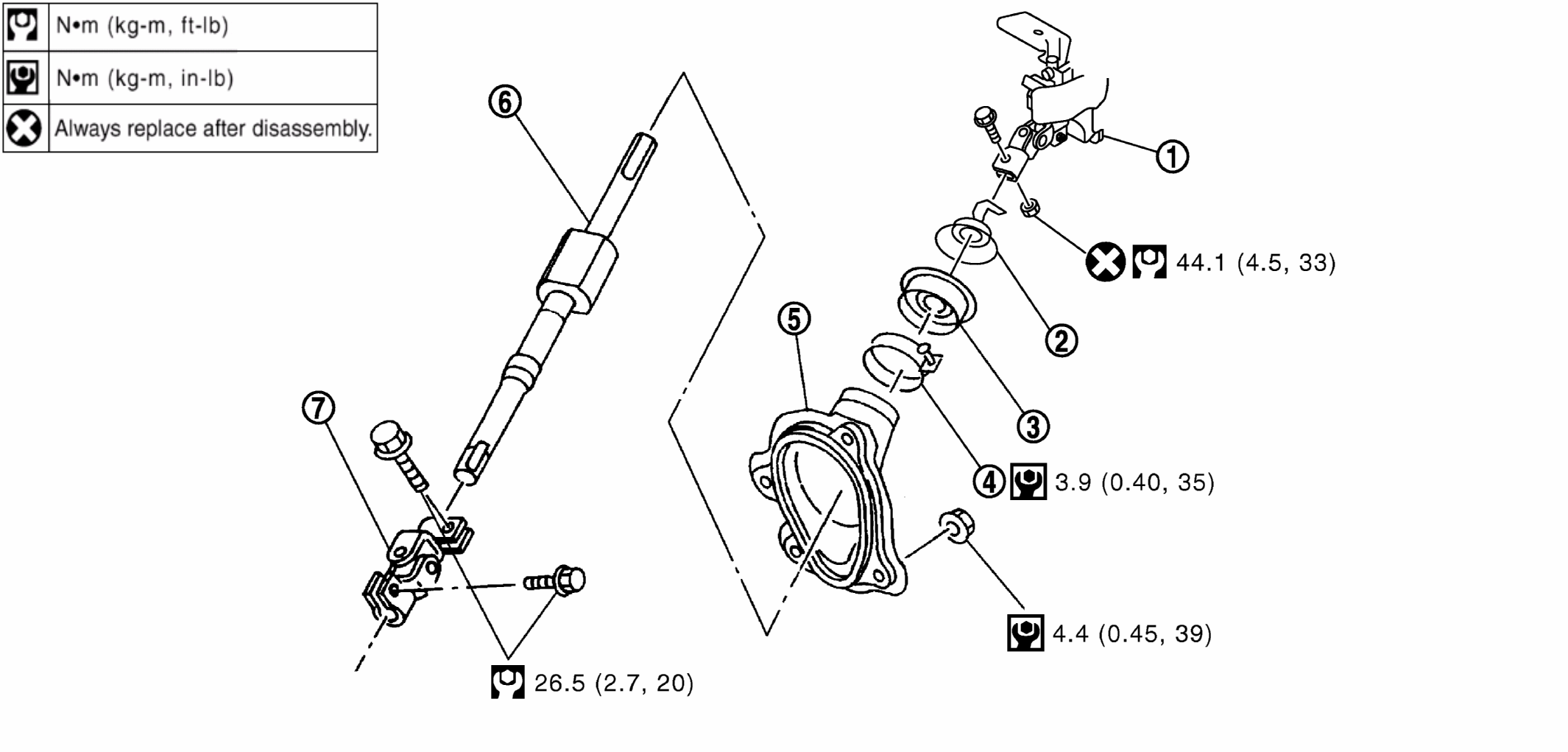

Fig 1: Exploded View Of Lower Shaft With Torque Specifications
GNSJSGIA0157GB-157Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Collar 3. Hole cover seal
4. Clamp 5. Hole cover 6. Lower shaft
7. Lower joint
Refer to COMPONENTS for symbols in the figure.
