Exploded View With Torque Specifications

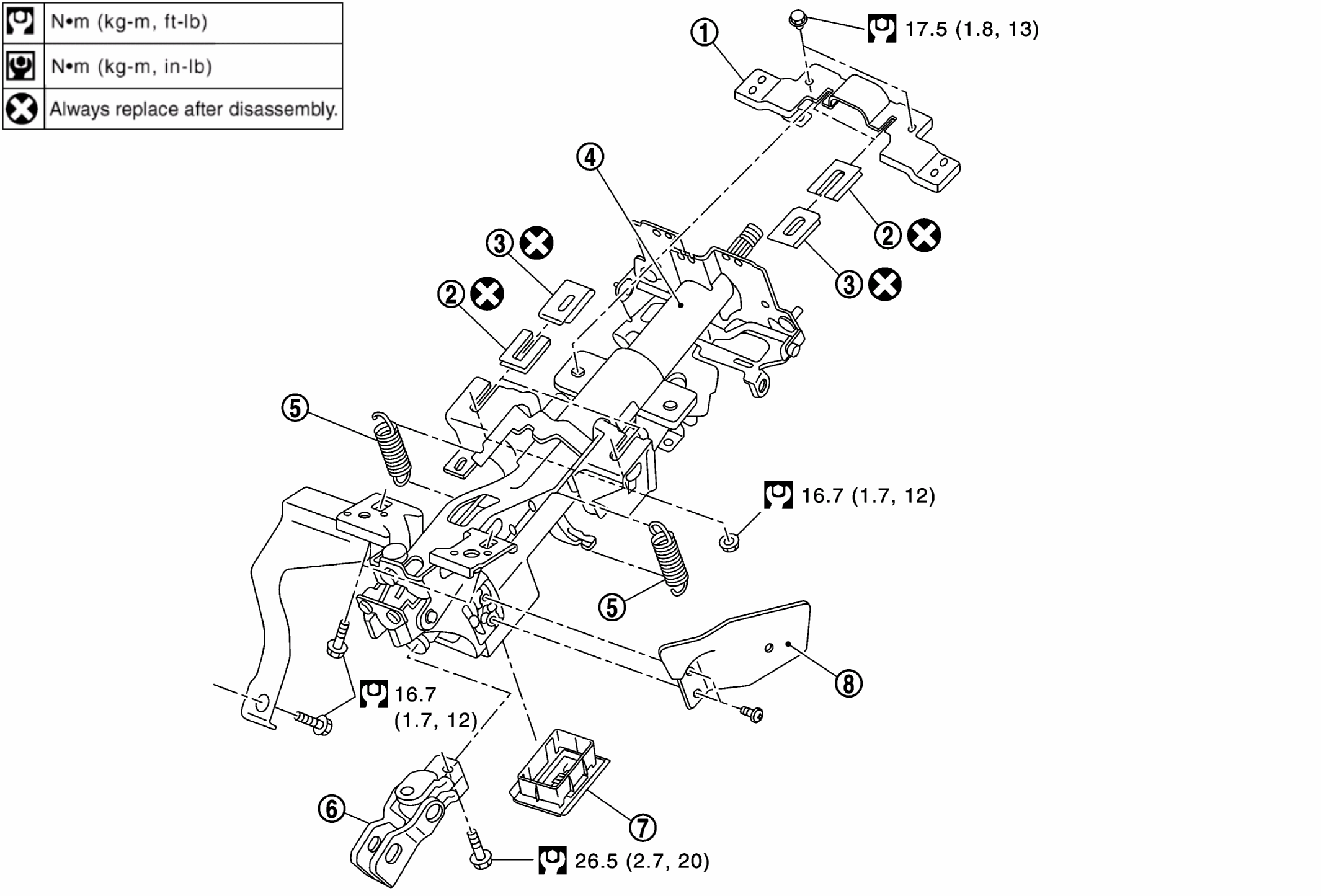

Fig 1: Exploded View Of Steering Column With Torque Specifications
GNSJSGIA0975GB-975Courtesy of NISSAN NORTH AMERICA, INC.
1. Upper stay 2. Clip 3. Clip
4. Steering column assembly 5. Spring 6. Upper joint
7. Dust cover 8. Bracket
Refer to COMPONENTS for symbols in the figure.
