Physical Values

Terminal No.		Wire color	Description		Condition	Value (Approx.)
+	-	Wire color	Signal name	Input/Output	Condition	Value (Approx.)
1	Ground	LG	Power steering solenoid valve voltage	Output	Vehicle speed: 0 km/h (0 MPH) (Engine is running)	4.4 - 6.6 V
1	Ground	LG	Power steering solenoid valve voltage	Output	Vehicle speed: 100 km/h (62 MPH)	2.4 - 3.6 V
3	Ground	G	Ignition switch power supply	Input	Ignition switch: ON	Battery voltage
3	Ground	G	Ignition switch power supply	Input	Ignition switch: OFF	0 V
5	Ground	B	Power steering solenoid valve ground	-	Always	0 V
6	Ground	B	Ground	-	Always	0 V

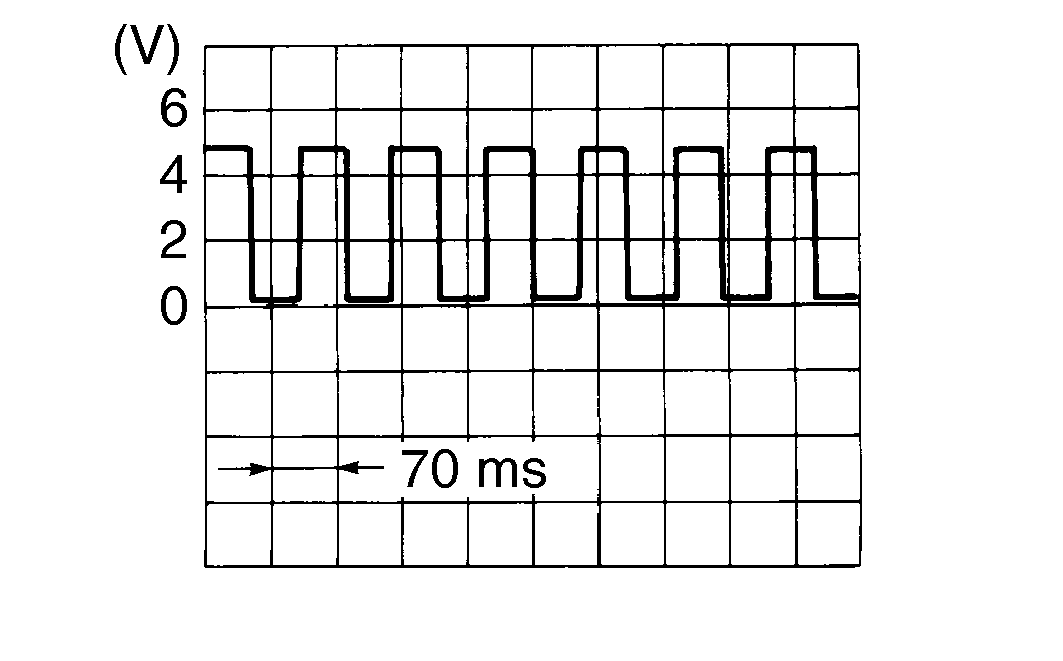

8	Ground	SB	Vehicle speed signal	Input	Vehicle speed: 40 km/h (25 MPH) CAUTION: Check air pressure of tire under standard condition.	Courtesy of NISSAN NORTH AMERICA, INC.
10	Ground	R	Engine speed signal	Input	Engine speed: At idle (Warm-up condition)	Courtesy of NISSAN NORTH AMERICA, INC.

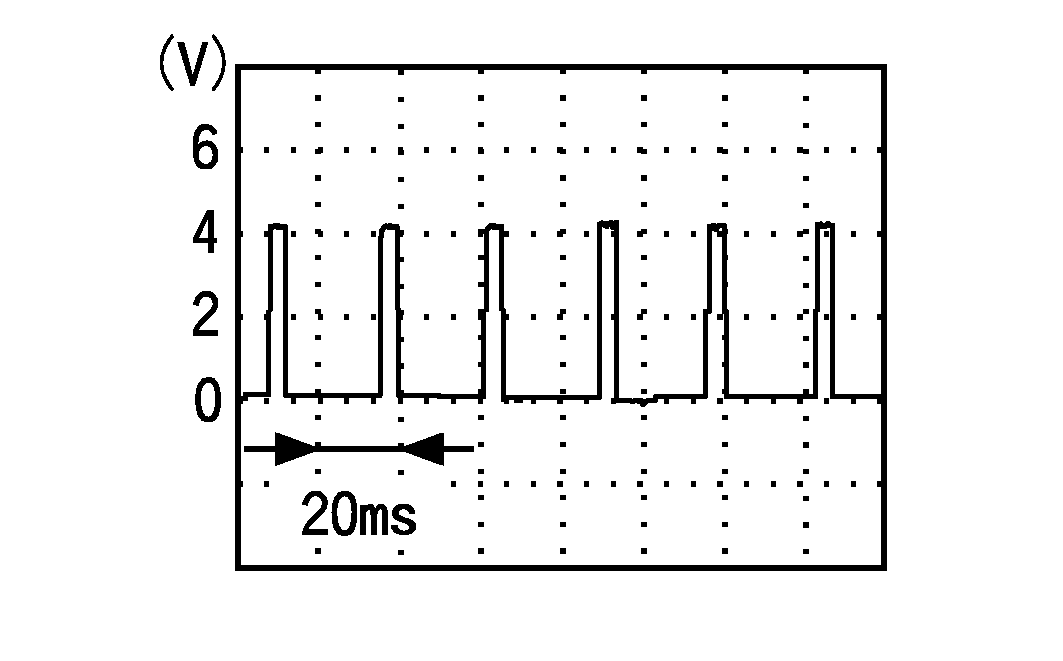

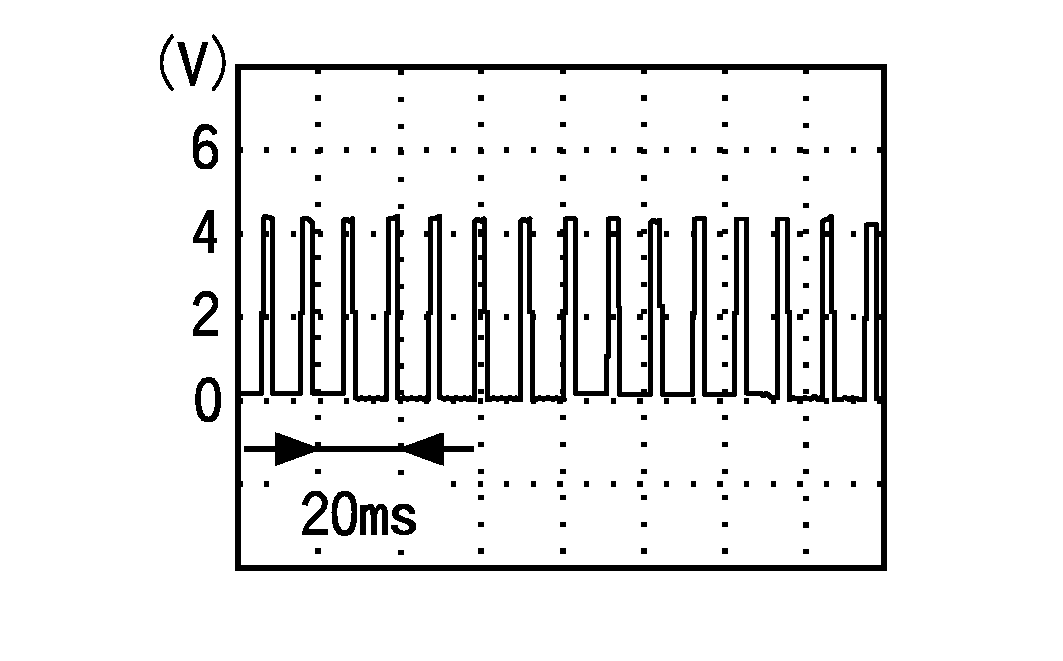

10	Ground	R	Engine speed signal	Input	Engine speed: Approx. 2, 000 rpm (Warm-up condition)	Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

When using circuit tester or oscilloscope to measure voltage for inspection, be sure not to forcibly extend any connector terminals.
