Exploded View With Torque Specifications

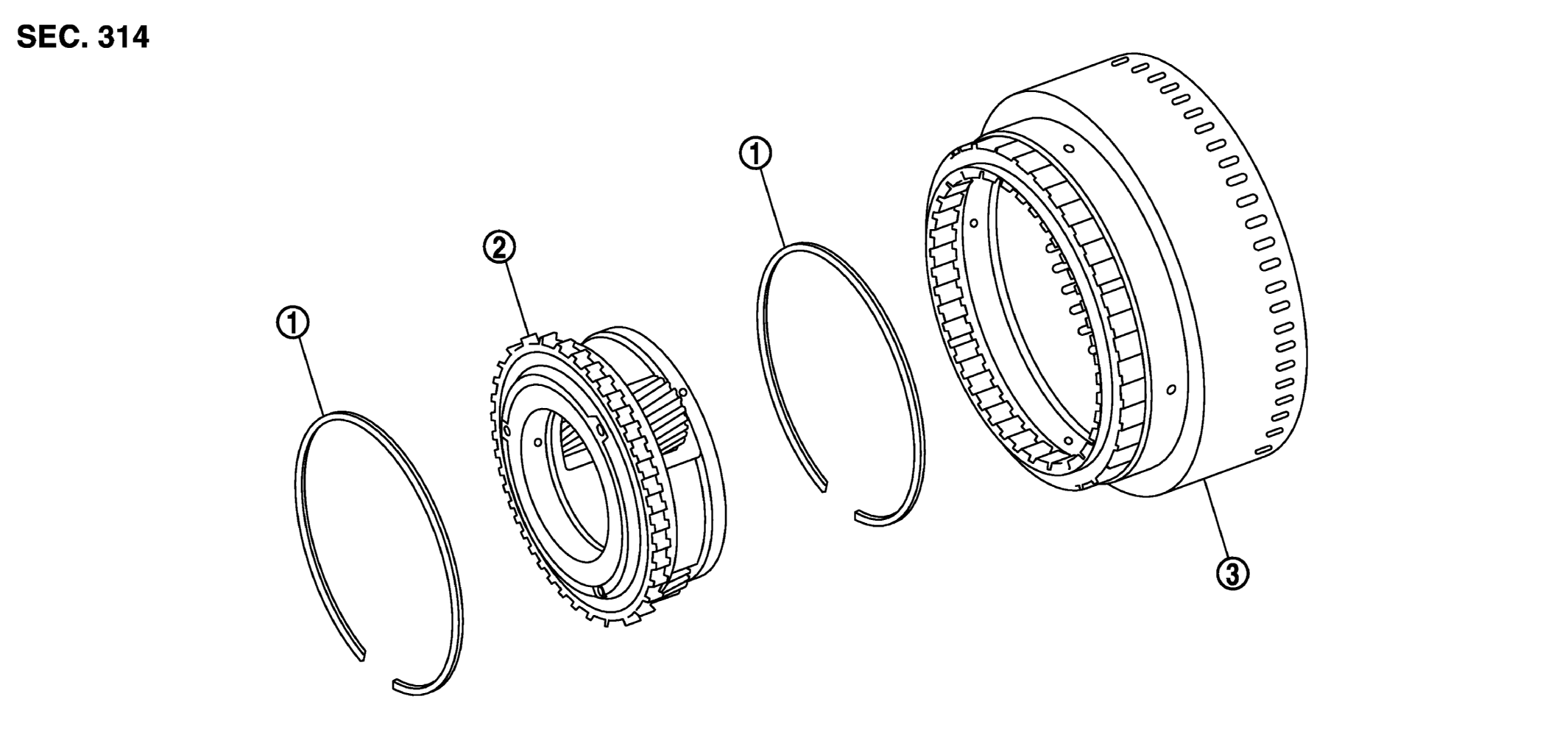

Fig 1: Exploded View Of Under Drive Carrier, Front Brake Hub
GNSJPDIA1127ZZ-127Courtesy of NISSAN NORTH AMERICA, INC.
1. Snap ring 2. Under drive carrier assembly 3. Front brake hub
Refer to COMPONENTS for symbols in the figure.
