Cross-Sectional View

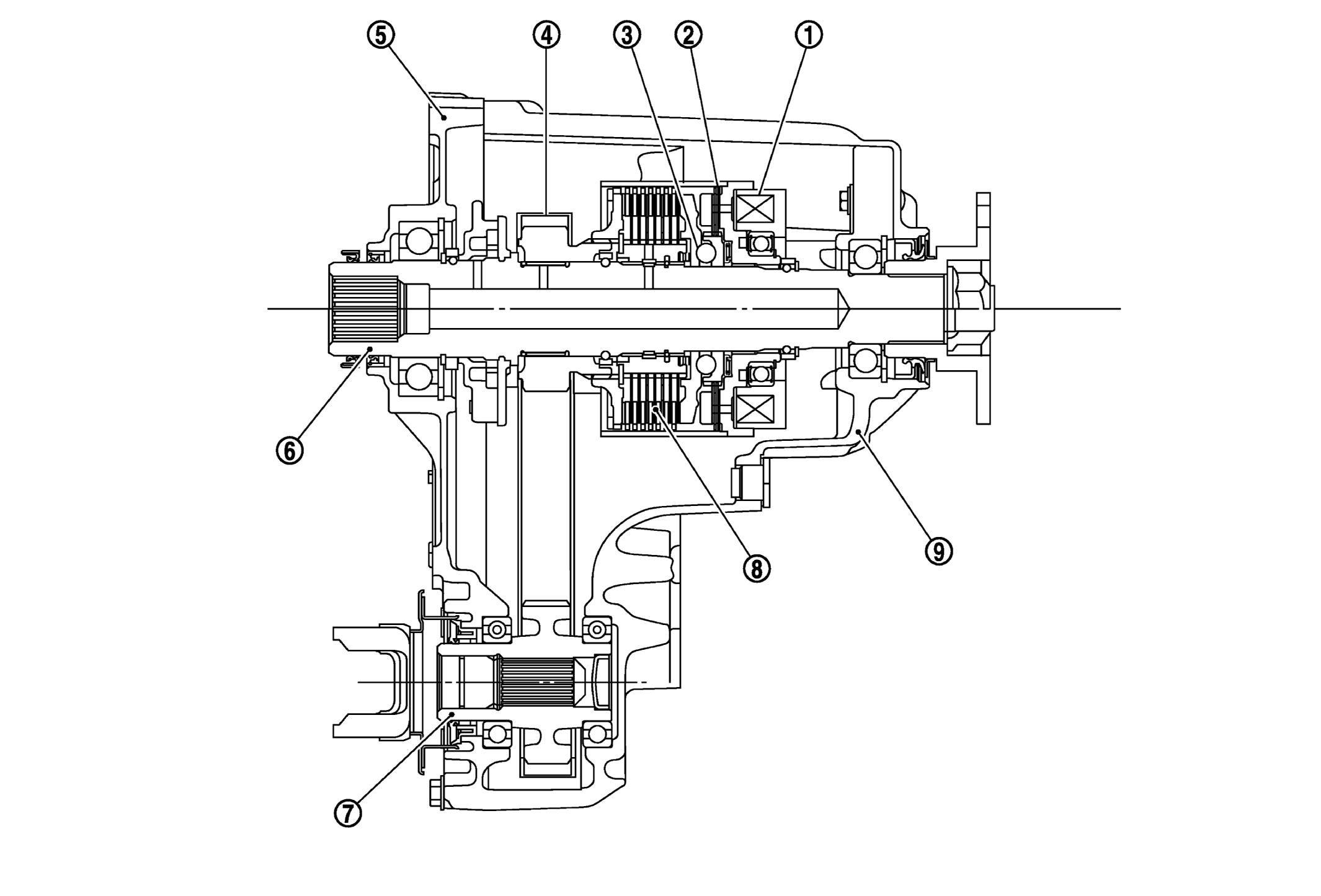

Fig 1: Cross-Sectional View Of Transfer Case
GNSJSDIA0803ZZ-803Courtesy of NISSAN NORTH AMERICA, INC.
1. Electromagnet 2. Control clutch 3. Cam
4. Drive chain 5. Front case 6. Main shaft
7. Front drive shaft 8. Main clutch 9. Rear case
