Exploded View With Torque Specifications

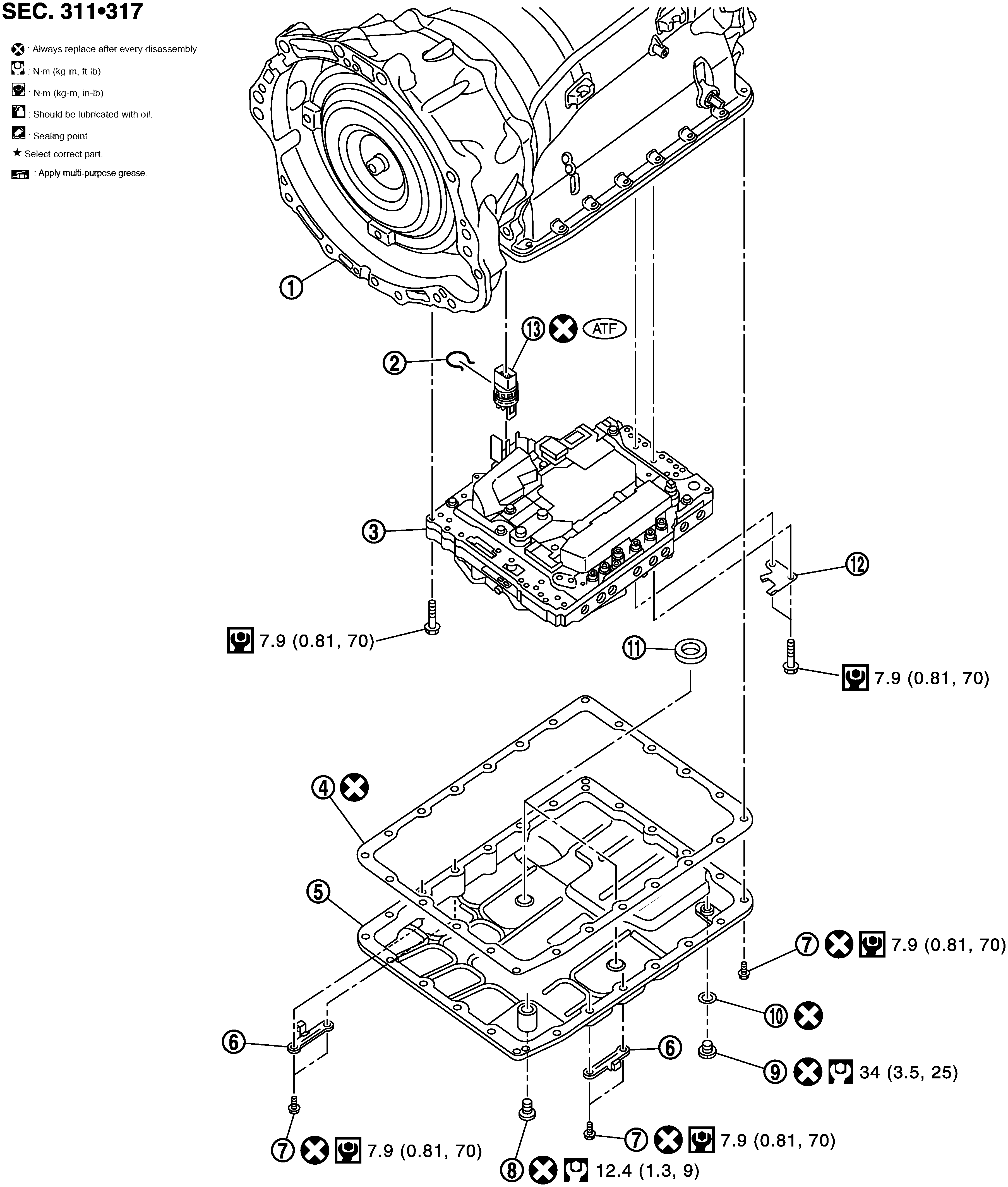

Fig 1: Exploded View Of Control Valve & TCM With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T	2.	Snap ring	3.	Control valve & TCM
4.	Oil pan gasket	5.	Oil pan	6.	Clip
7.	Oil pan mounting bolt	8.	Overflow plug	9.	Drain plug
10.	Drain plug gasket	11.	Magnet	12.	Clip
13.	Joint connector
Refer to COMPONENTS for symbols in the figure.
