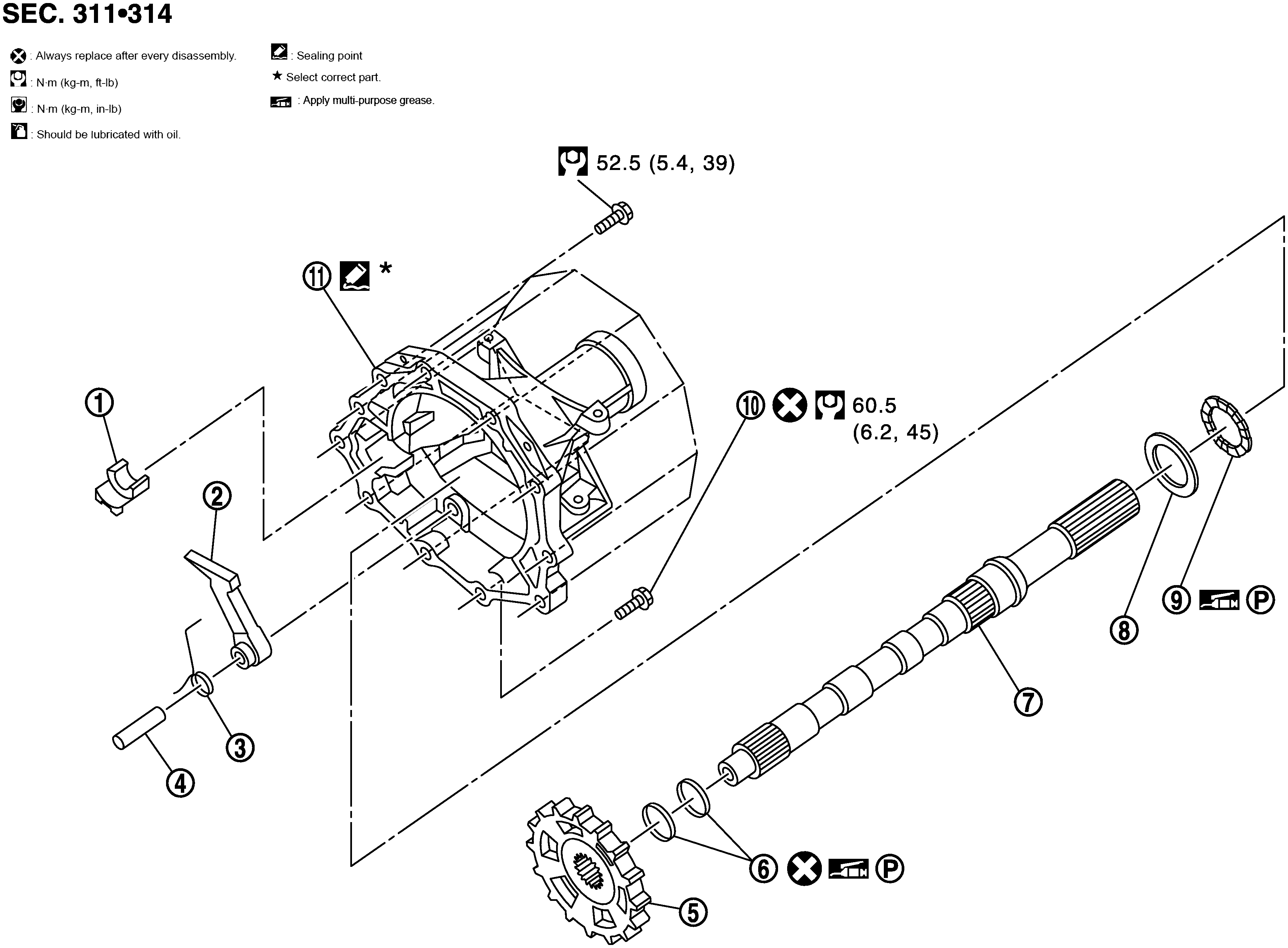

Exploded View With Torque Specifications
| 1. | Parking actuator support | 2. | Parking pawl | 3. | Return spring |
| 4. | Pawl shaft | 5. | Parking gear | 6. | Seal ring |
| 7. | Output shaft | 8. | Bearing race | 9. | Needle bearing |
| 10. | Self-sealing bolt | 11. | Rear extension | ||
| *: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS . | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
