Exploded View With Torque Specifications

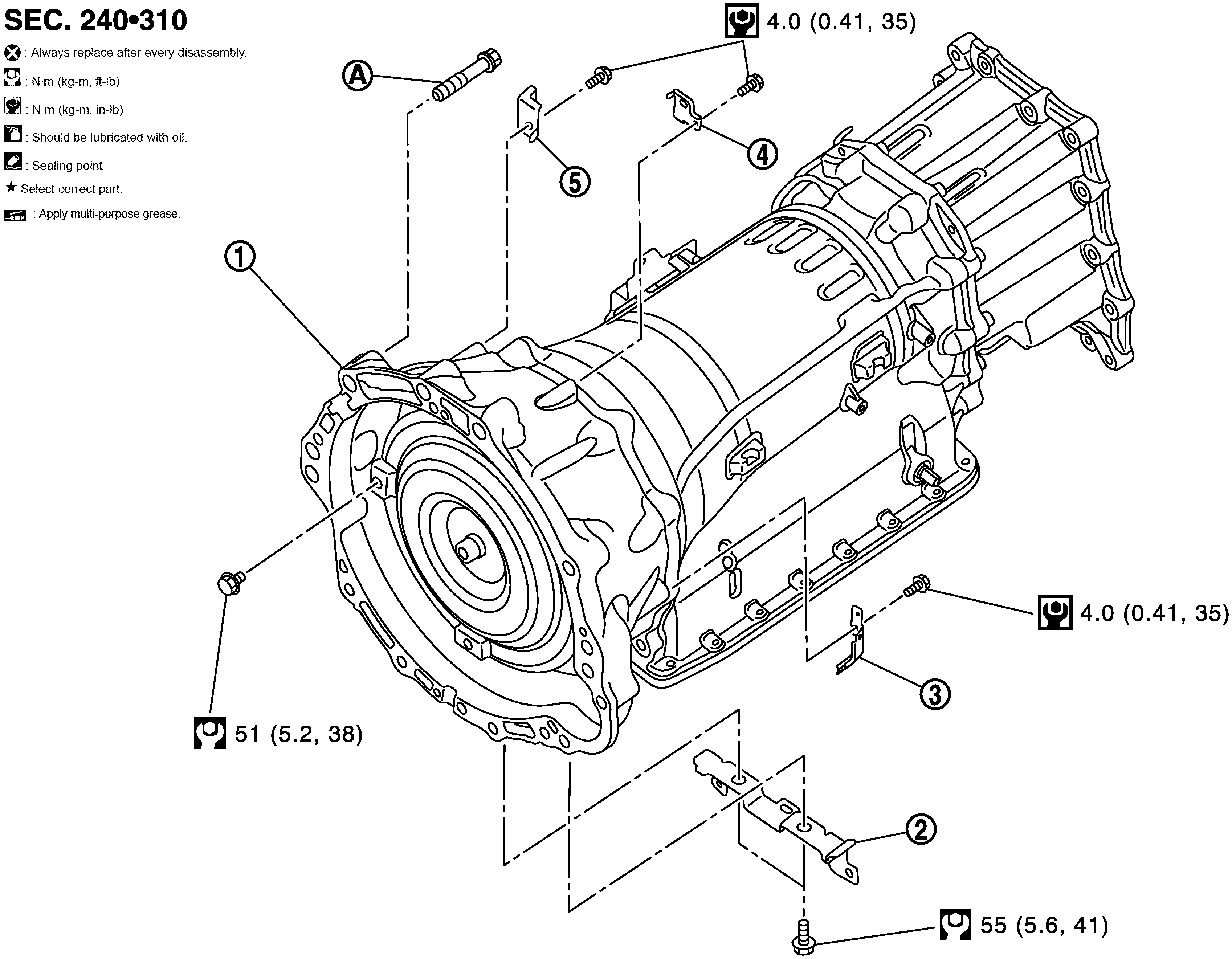

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (AWD)
GNSJPDIA1071GB-071Courtesy of NISSAN NORTH AMERICA, INC.
1. A/T assembly 2. Bracket 3. Bracket
4. Bracket 5. Bracket
A. Tightening must be done following the installation procedure. Refer to REMOVAL AND INSTALLATION .
Refer to COMPONENTS for symbols in the figure.
