Power Window System Connectors

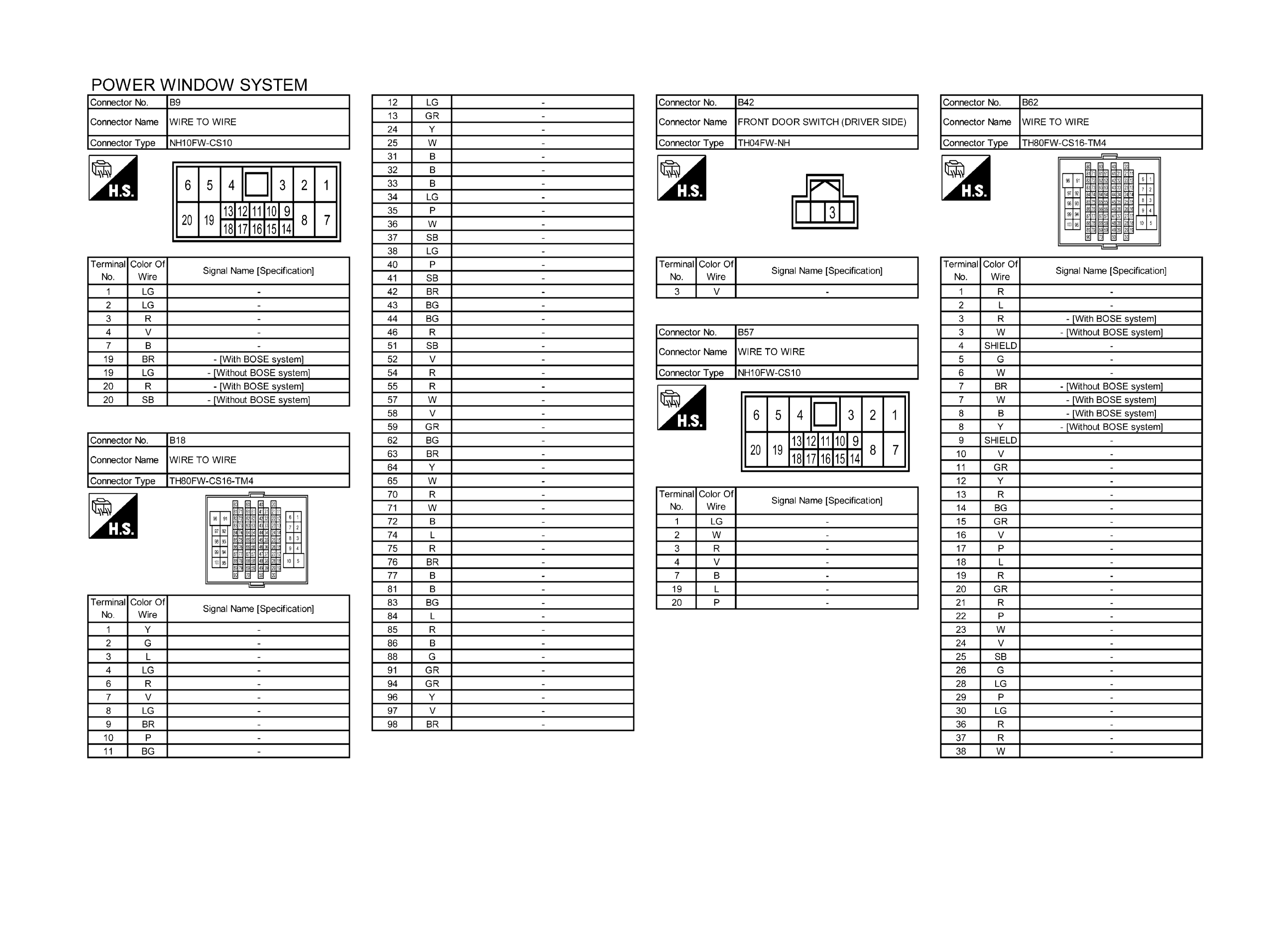

Fig 1: Power Window System Connectors (1 Of 7)

GNSJRKWE1743GB-743

Courtesy of NISSAN NORTH AMERICA, INC.

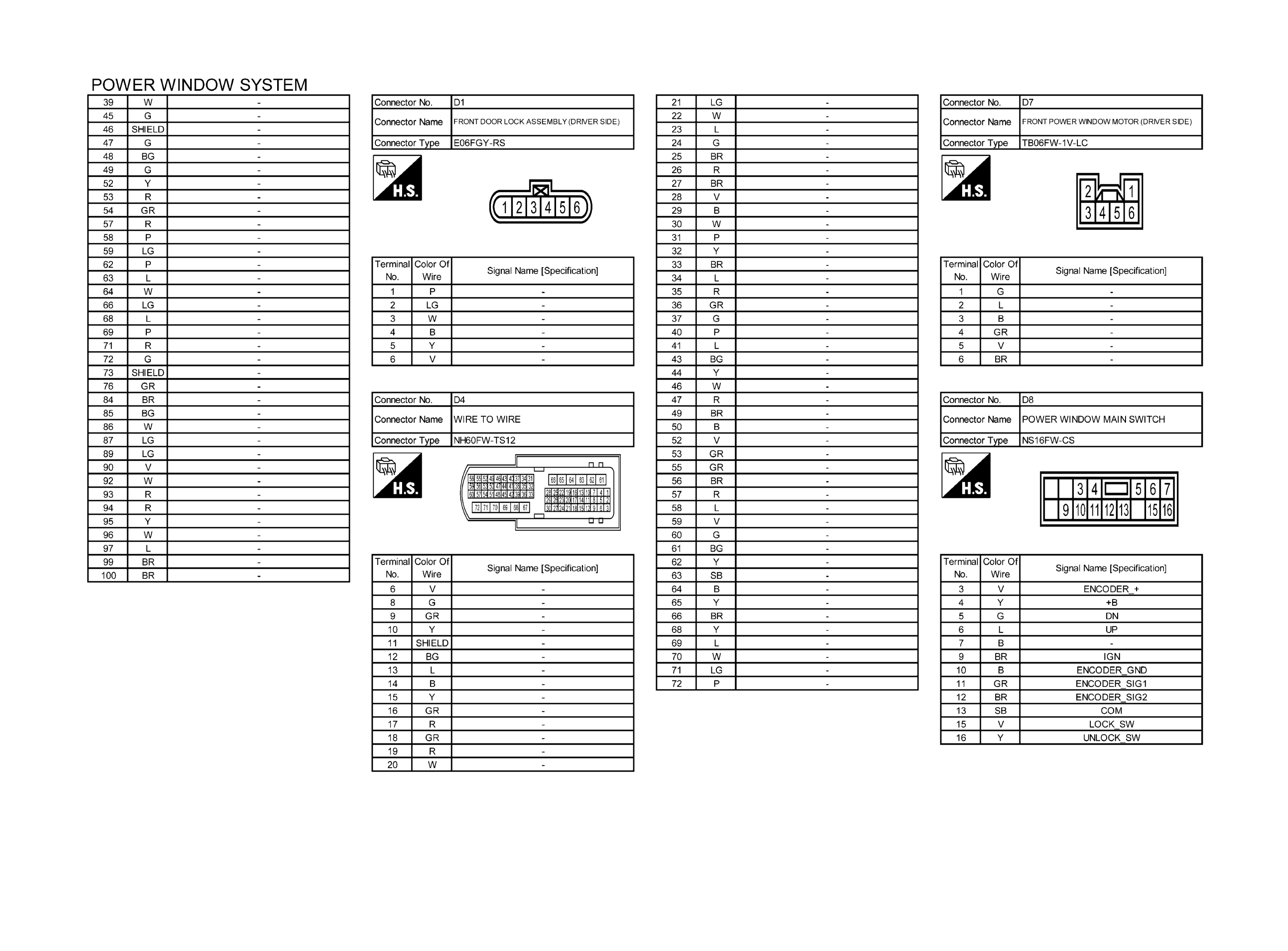

Fig 2: Power Window System Connectors (2 Of 7)

GNSJRKWE1744GB-744

Courtesy of NISSAN NORTH AMERICA, INC.

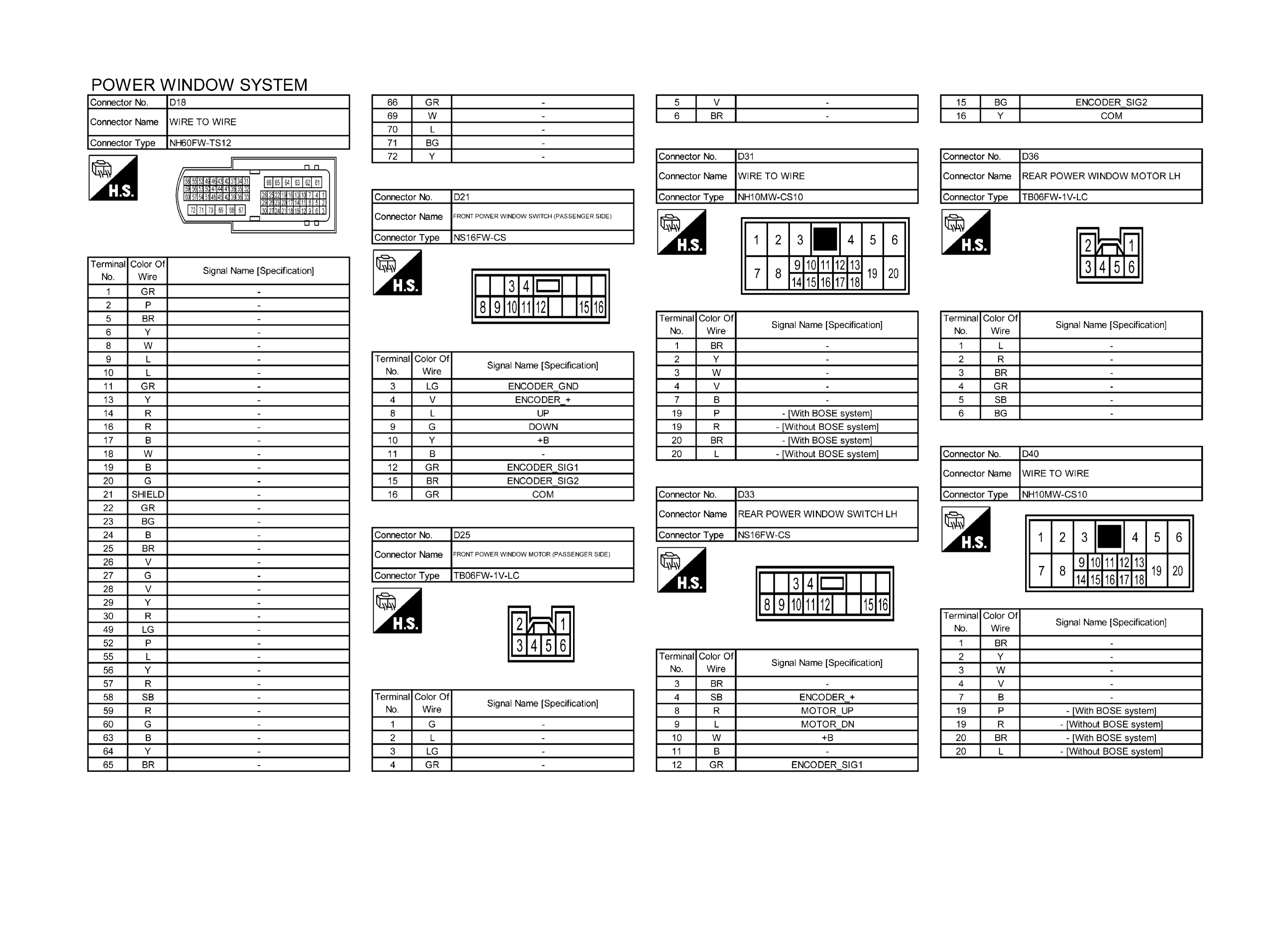

Fig 3: Power Window System Connectors (3 Of 7)

GNSJRKWE1745GB-745

Courtesy of NISSAN NORTH AMERICA, INC.

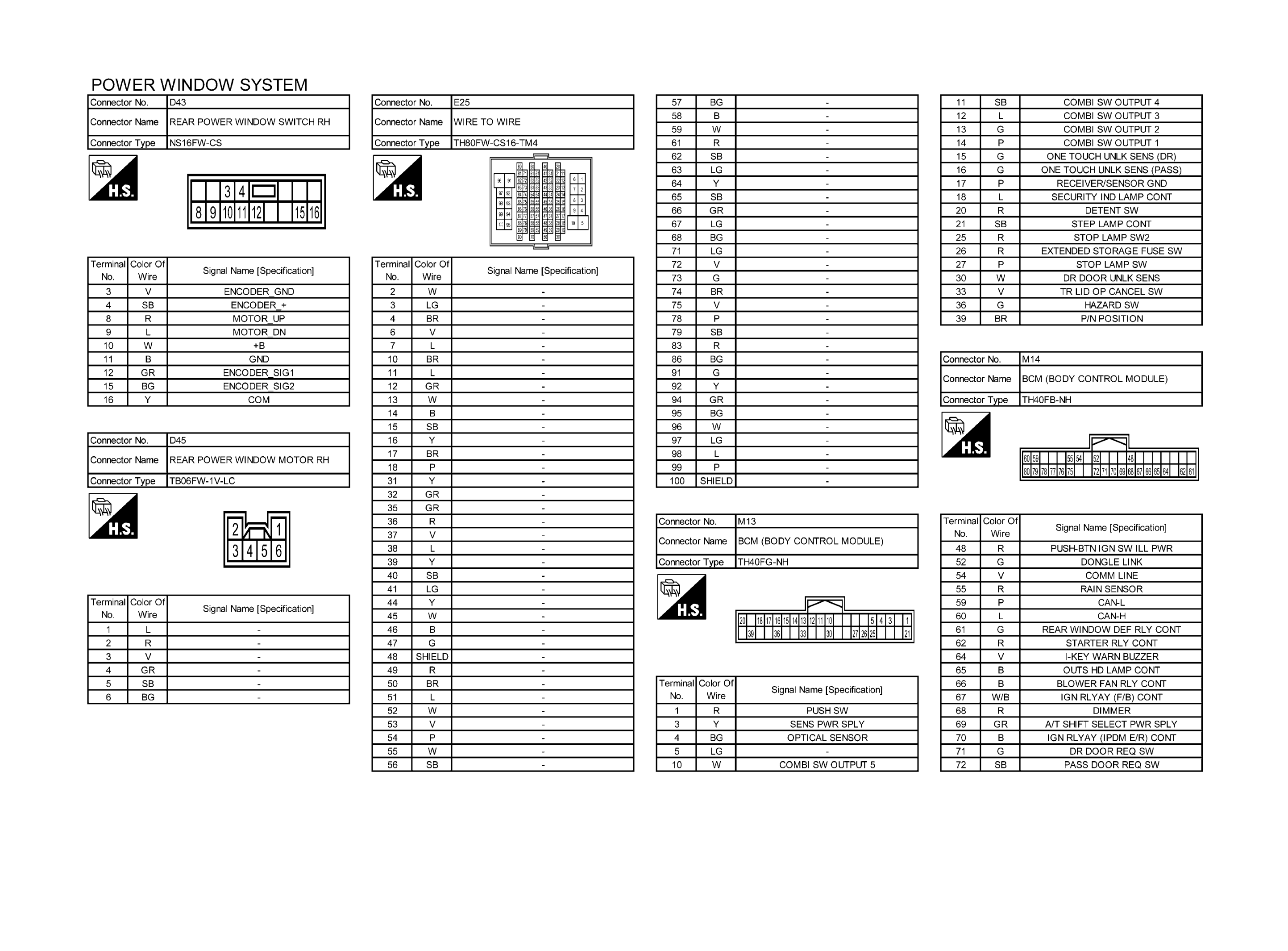

Fig 4: Power Window System Connectors (4 Of 7)

GNSJRKWE1746GB-746

Courtesy of NISSAN NORTH AMERICA, INC.

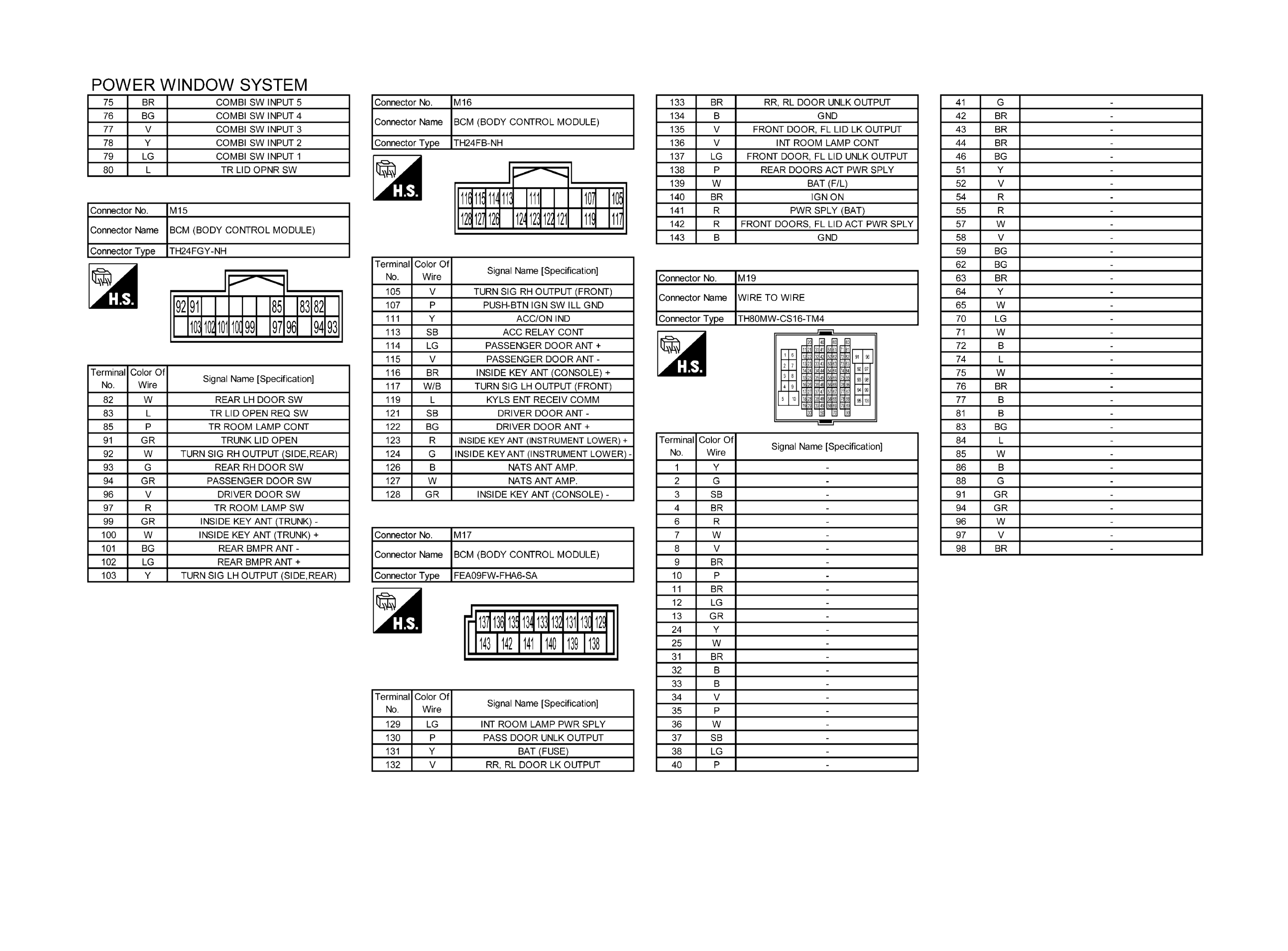

Fig 5: Power Window System Connectors (5 Of 7)

GNSJRKWE1747GB-747

Courtesy of NISSAN NORTH AMERICA, INC.

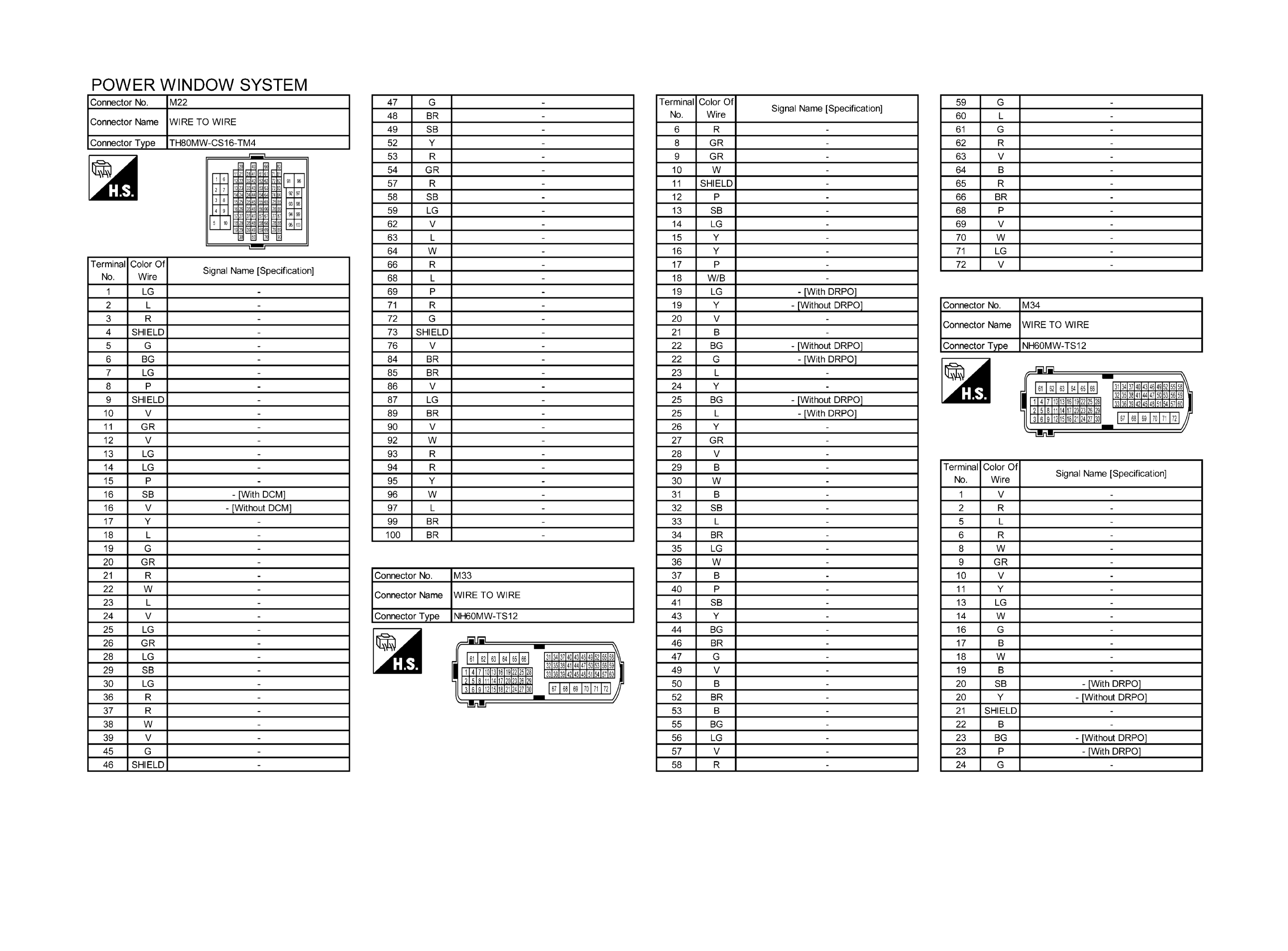

Fig 6: Power Window System Connectors (6 Of 7)

GNSJRKWE1748GB-748

Courtesy of NISSAN NORTH AMERICA, INC.

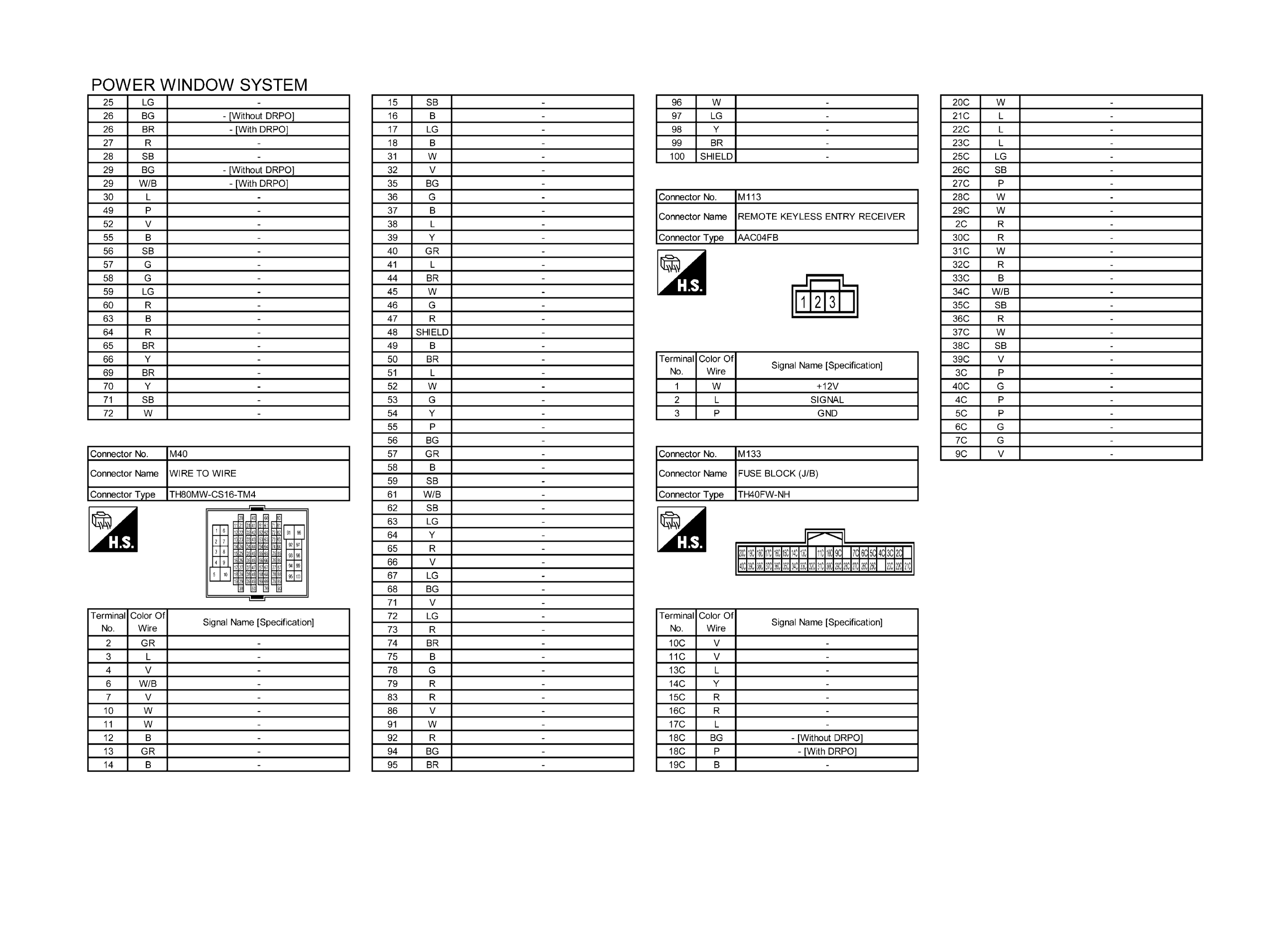

Fig 7: Power Window System Connectors (7 Of 7)

GNSJRKWE1749GB-749

Courtesy of NISSAN NORTH AMERICA, INC.
