Circuit Diagram

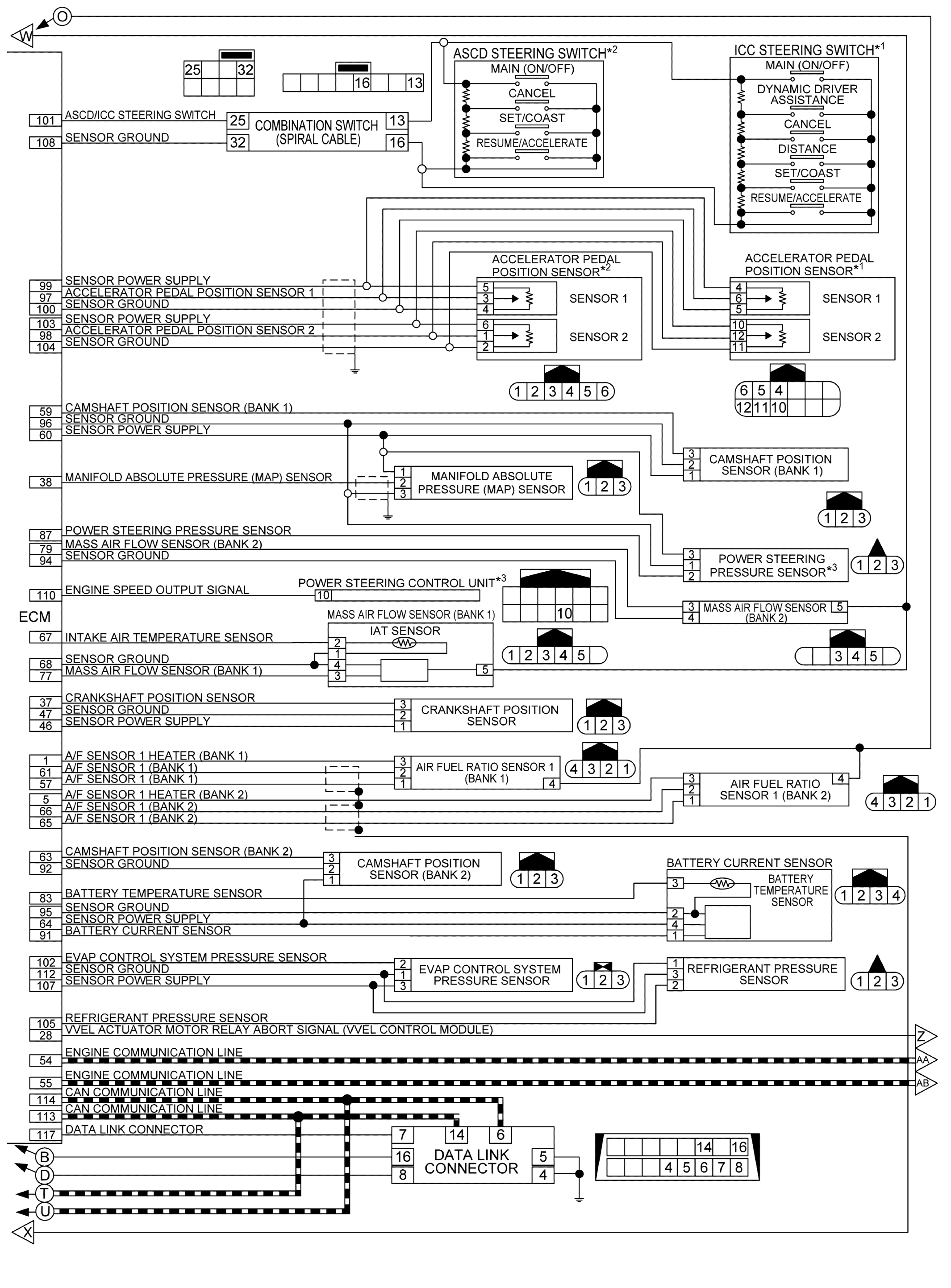

Fig 1: Engine Control System Circuit Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

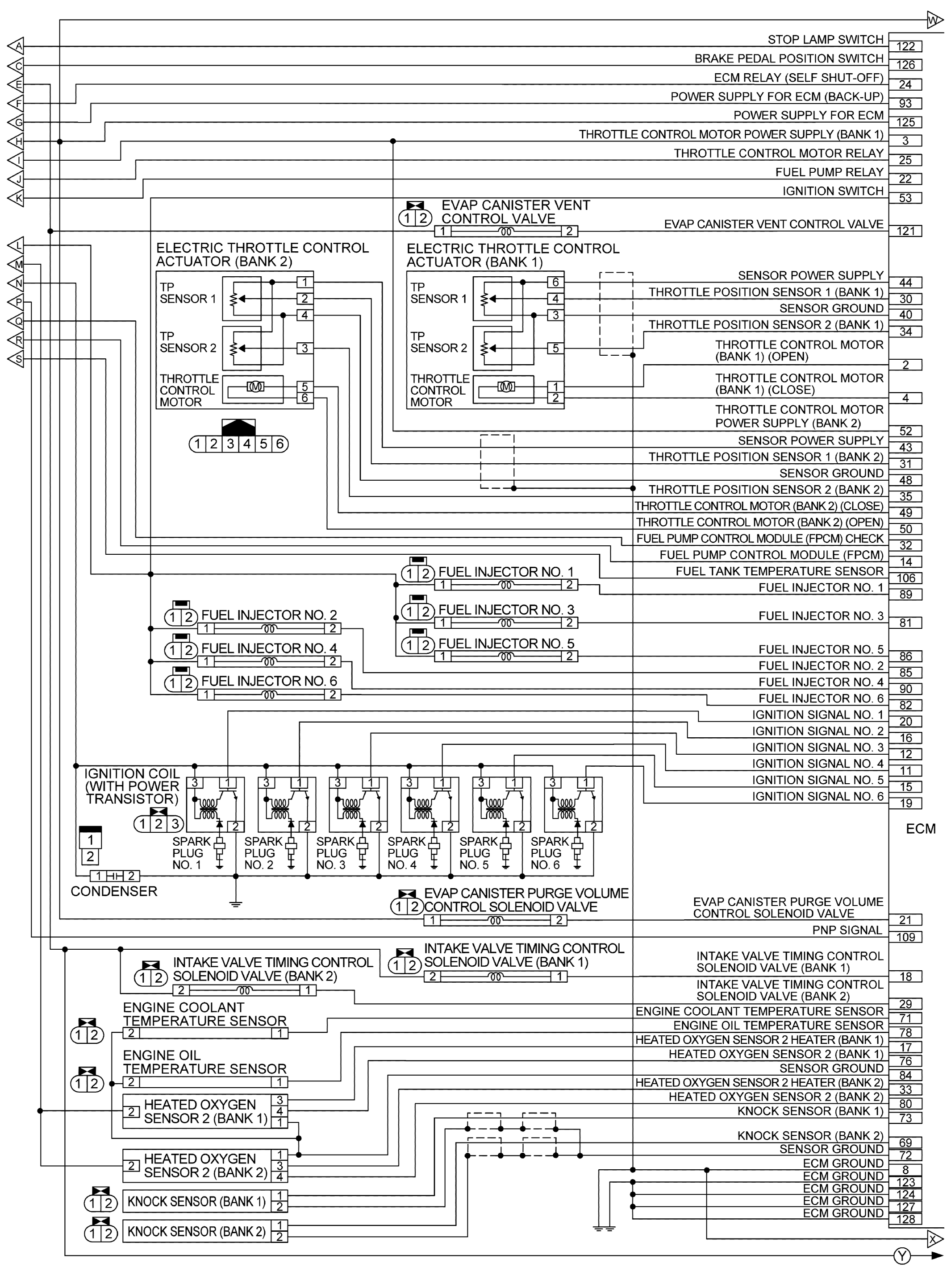

Fig 2: Engine Control System Circuit Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Engine Control System Circuit Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Engine Control System Circuit Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

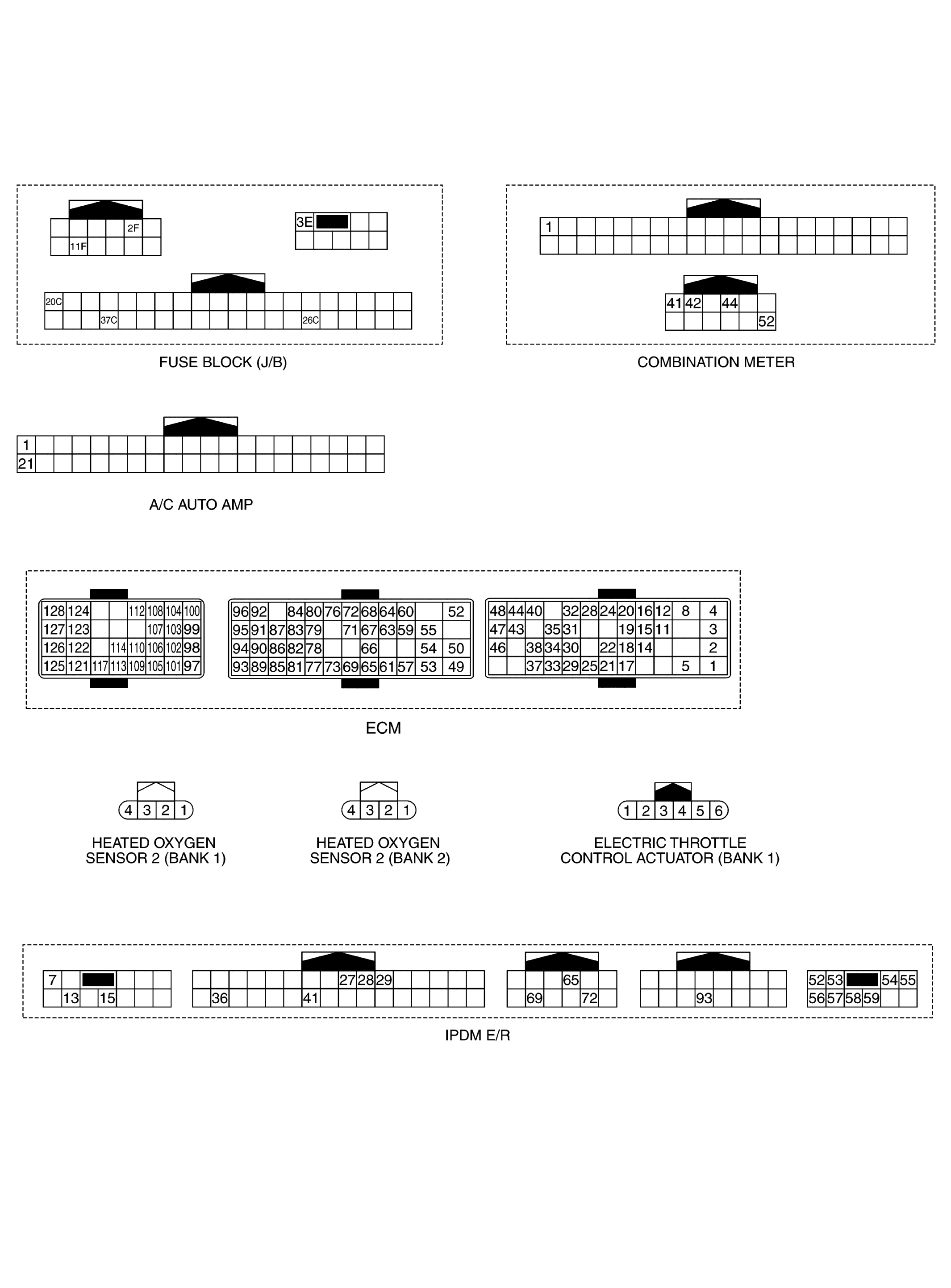

Fig 5: Engine Control System Circuit Connector End Views

Courtesy of NISSAN NORTH AMERICA, INC.

*1: With ICC models

*2: Without ICC models

*3: With power steering control system
