Circuit Diagram

Fig 1: Direct Adaptive Steering Circuit Diagram (1 Of 2)
G09159398Courtesy of NISSAN NORTH AMERICA, INC.

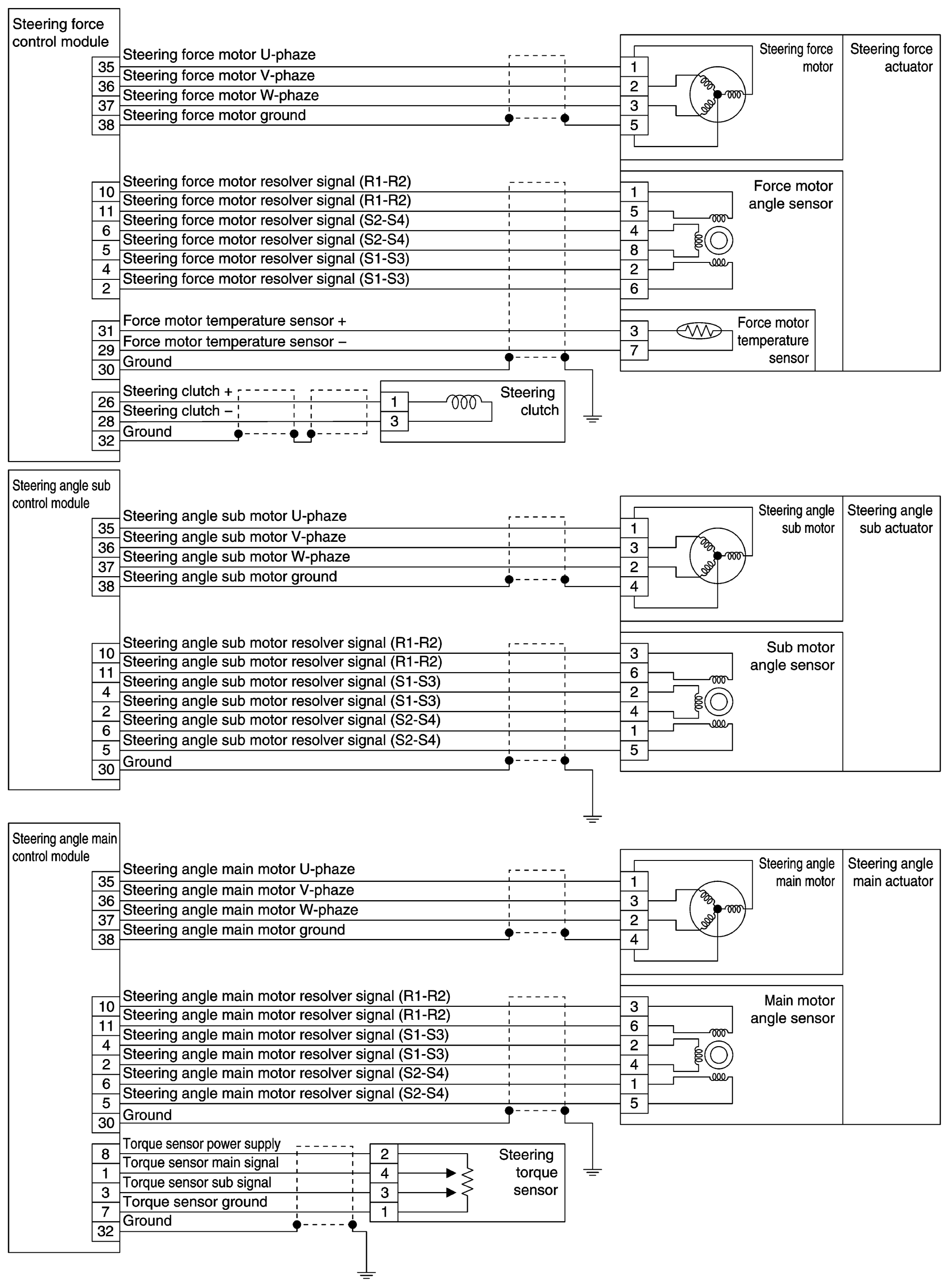

Fig 2: Direct Adaptive Steering Circuit Diagram (2 Of 2)
G09159399Courtesy of NISSAN NORTH AMERICA, INC.

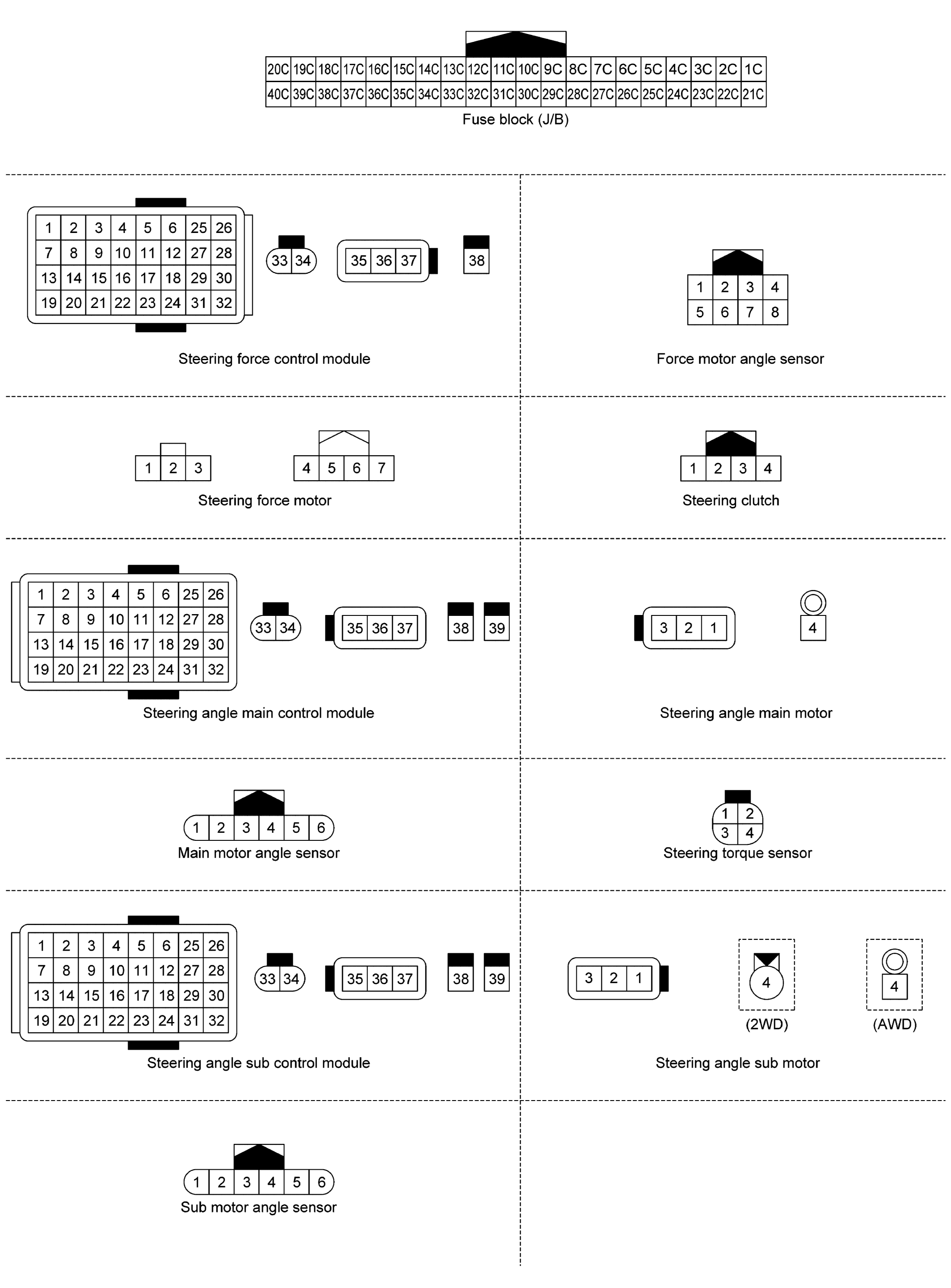

Fig 3: Direct Adaptive Steering Connector Views
GNSJSGIA1664GB-664Courtesy of NISSAN NORTH AMERICA, INC.
