Direct Adaptive Steering Connectors

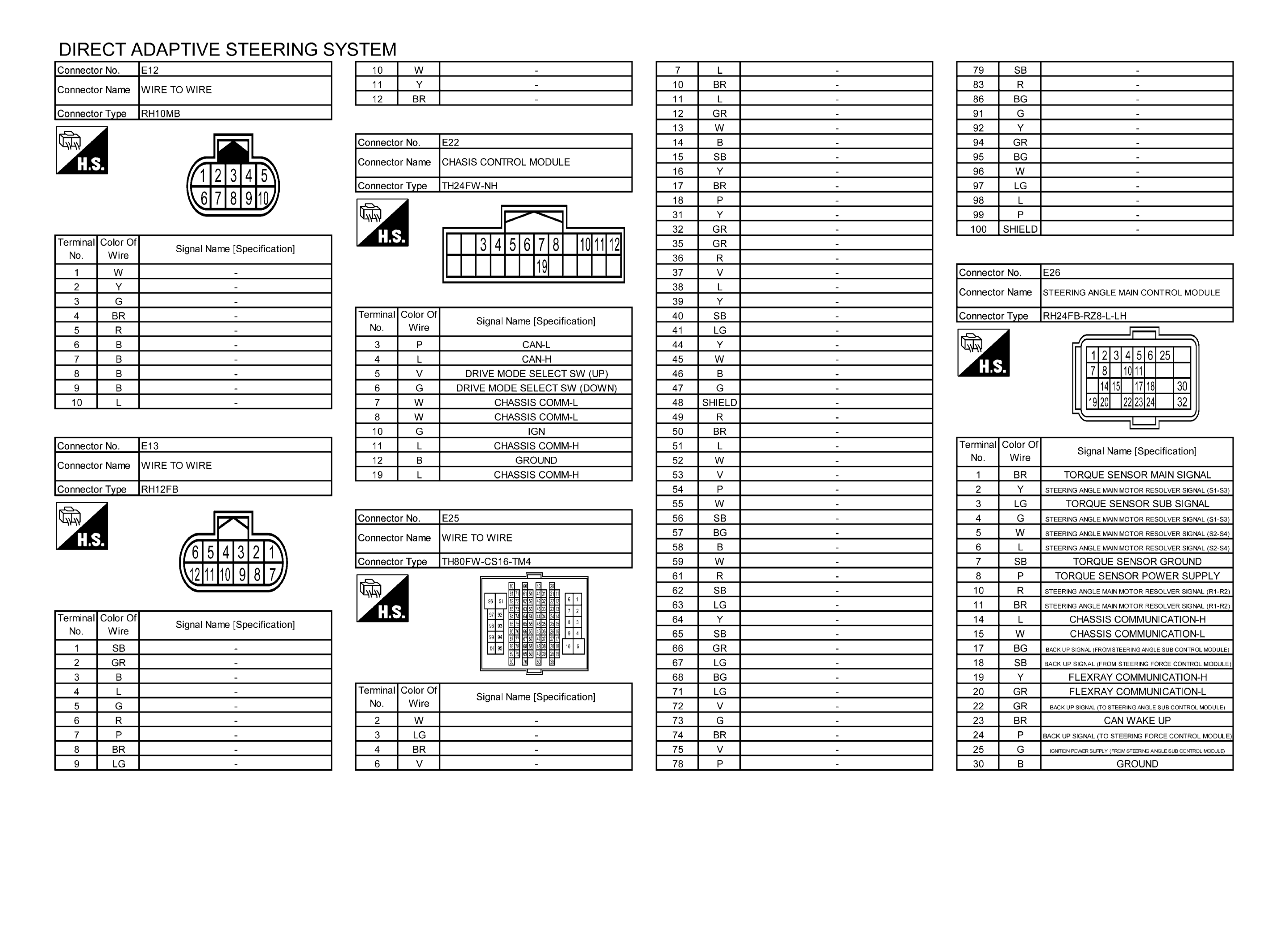

Fig 1: Direct Adaptive Steering Connectors (1 Of 7)
GNSJRGWC1682GB-682Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Direct Adaptive Steering Connectors (2 Of 7)
GNSJRGWC1683GB-683Courtesy of NISSAN NORTH AMERICA, INC.

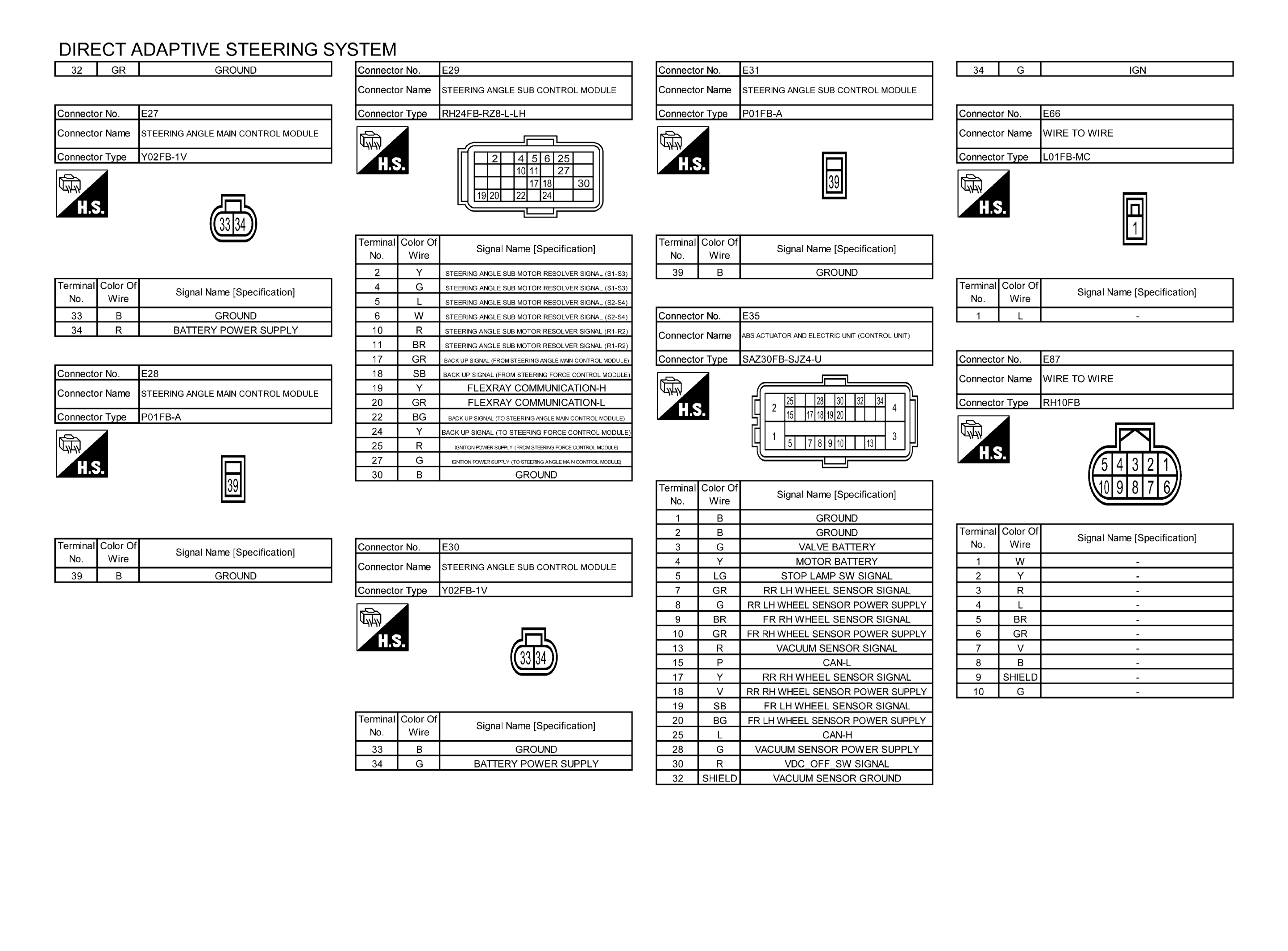

Fig 3: Direct Adaptive Steering Connectors (3 Of 7)
GNSJRGWC1684GB-684Courtesy of NISSAN NORTH AMERICA, INC.

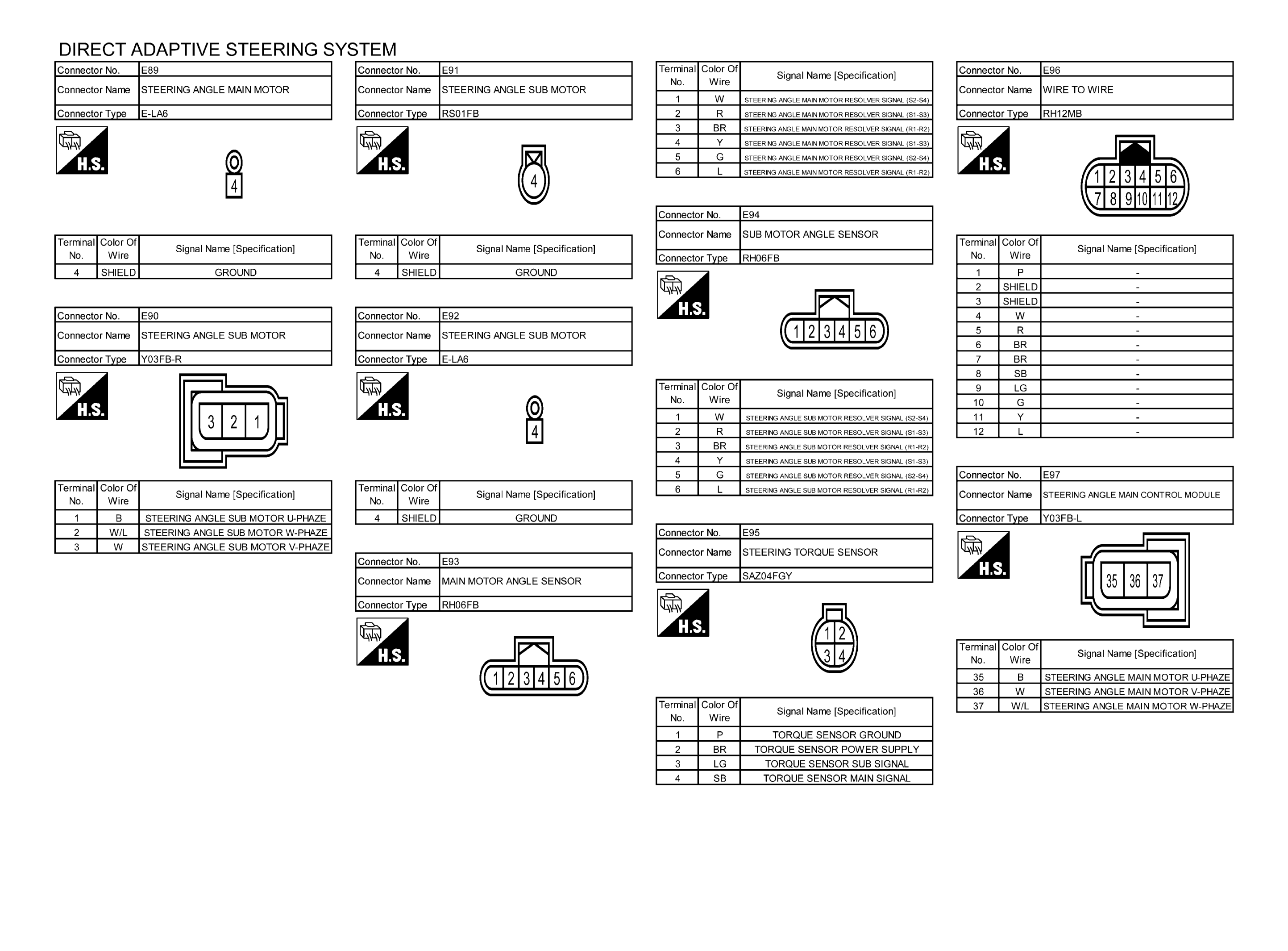

Fig 4: Direct Adaptive Steering Connectors (4 Of 7)
GNSJRGWC1685GB-685Courtesy of NISSAN NORTH AMERICA, INC.

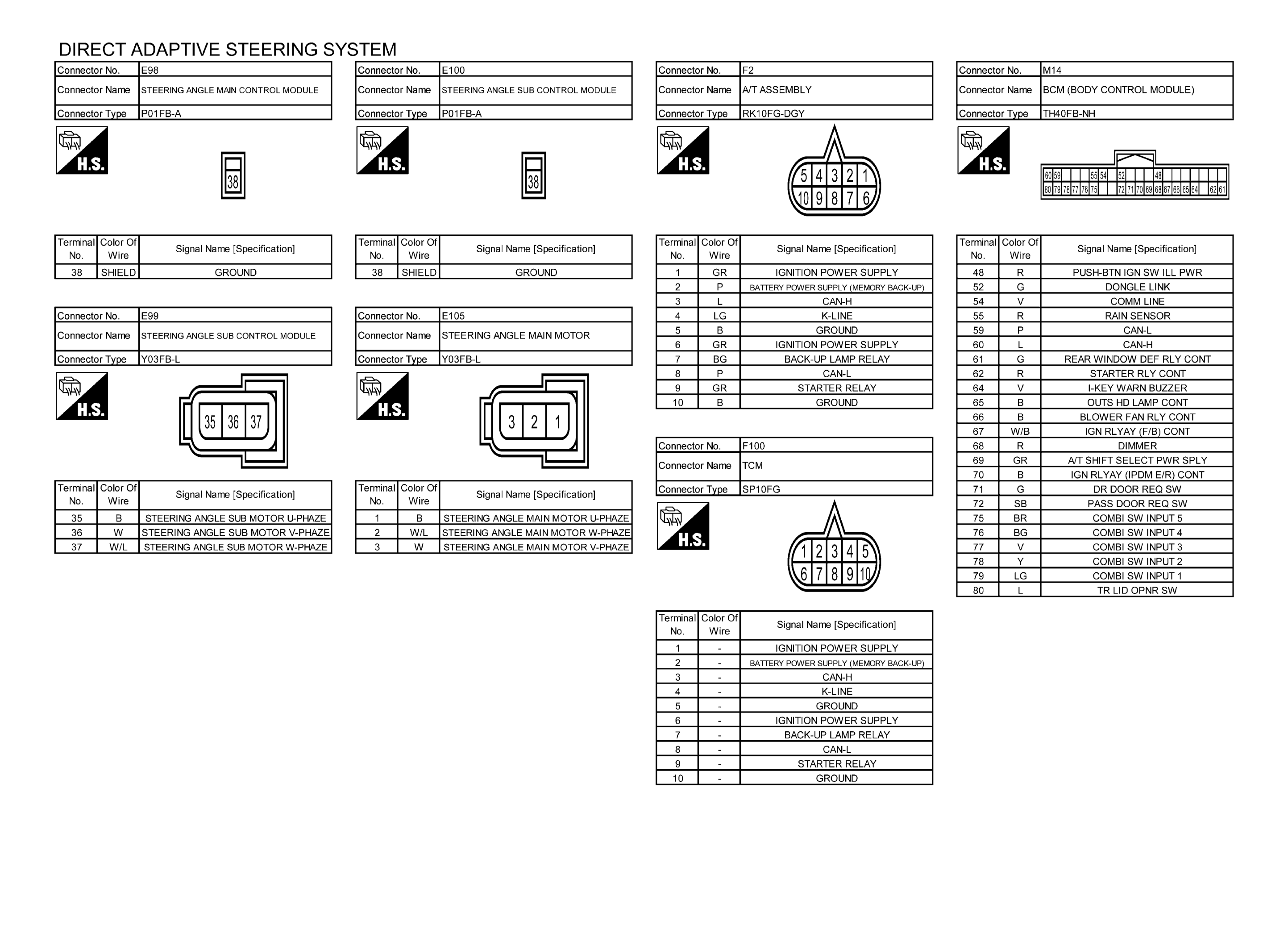

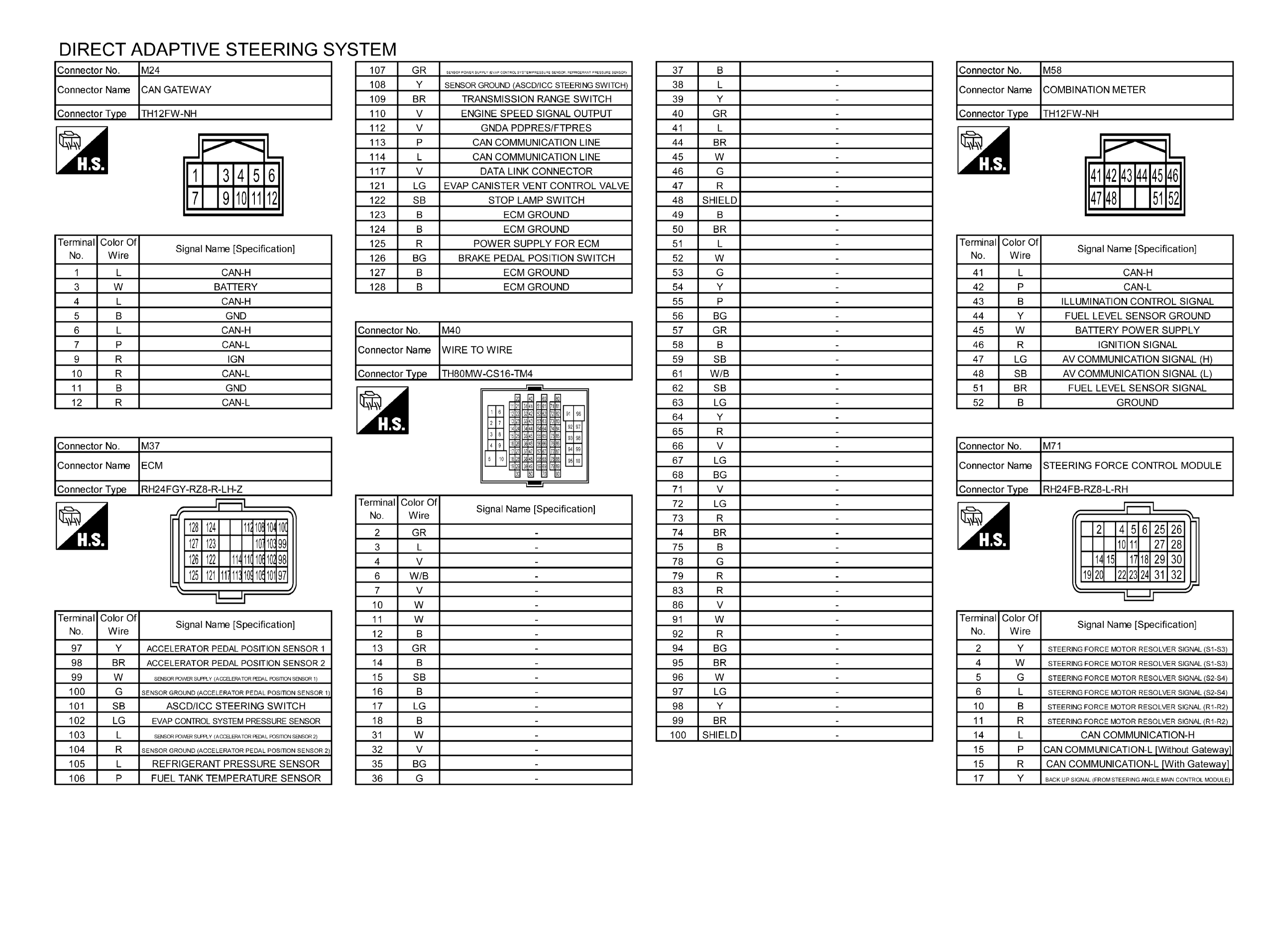

Fig 5: Direct Adaptive Steering Connectors (5 Of 7)
GNSJRGWC1686GB-686Courtesy of NISSAN NORTH AMERICA, INC.

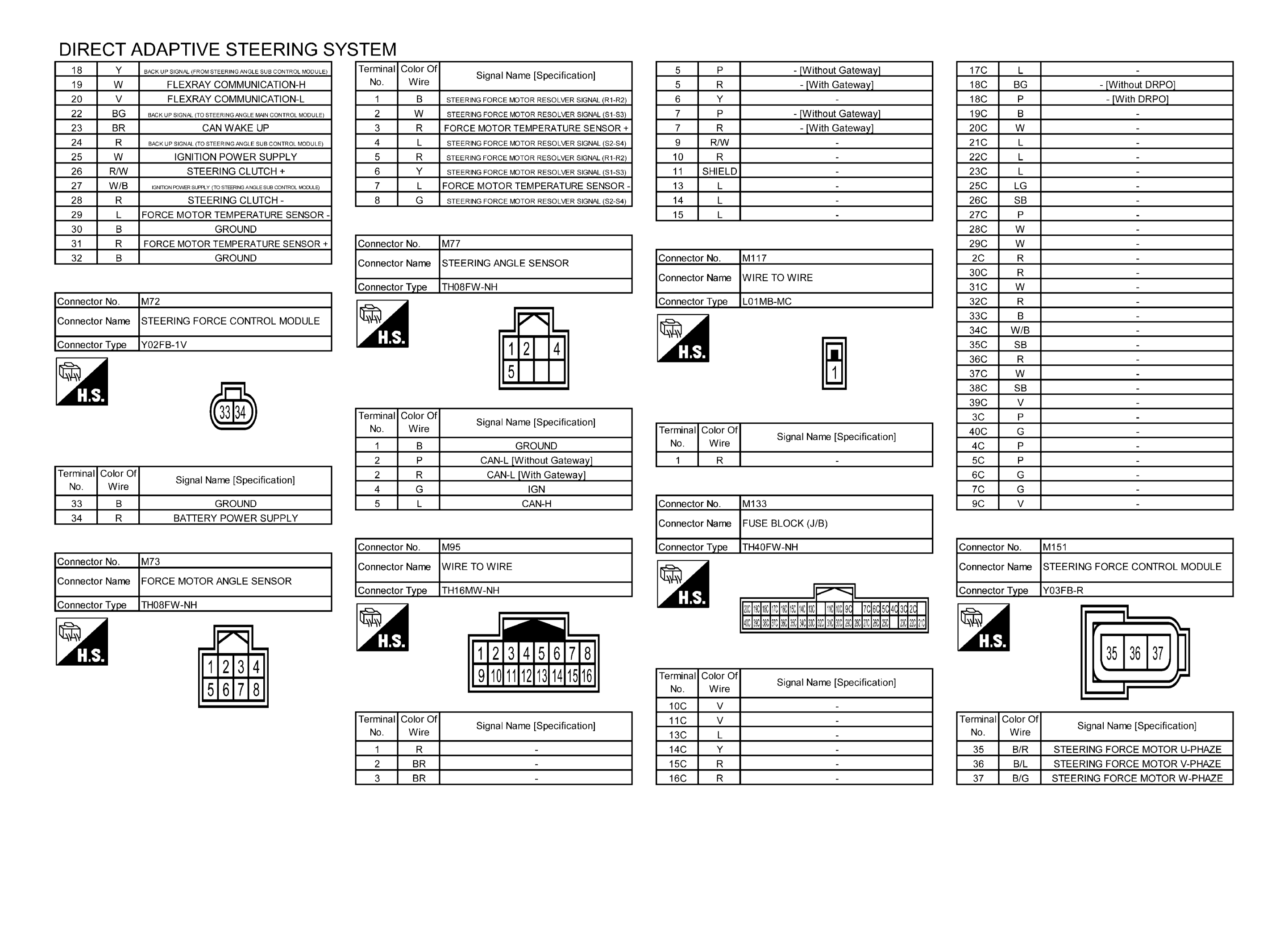

Fig 6: Direct Adaptive Steering Connectors (6 Of 7)
GNSJRGWC1687GB-687Courtesy of NISSAN NORTH AMERICA, INC.

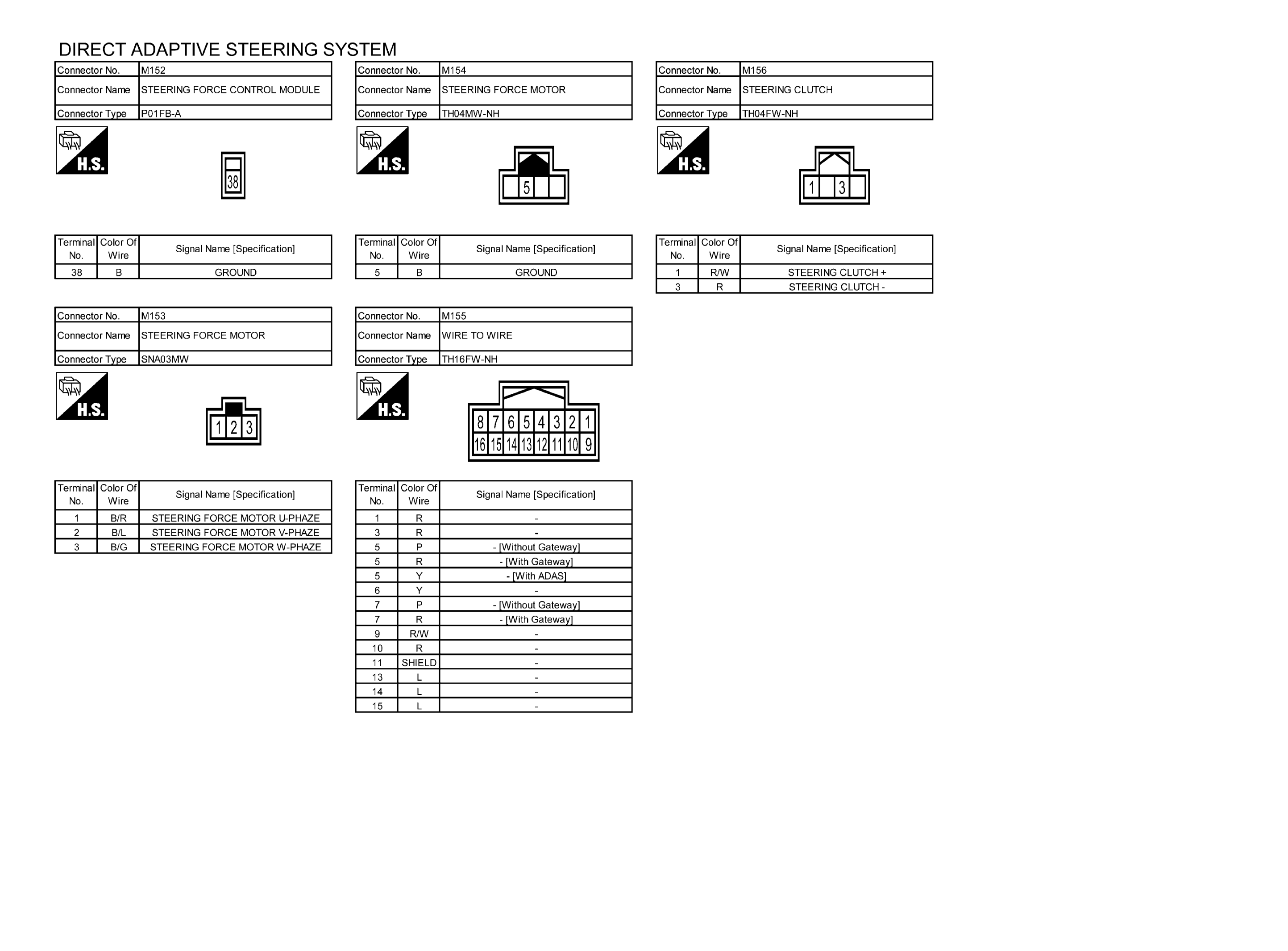

Fig 7: Direct Adaptive Steering Connectors (7 Of 7)
GNSJRGWC1688GB-688Courtesy of NISSAN NORTH AMERICA, INC.
