Circuit Diagram

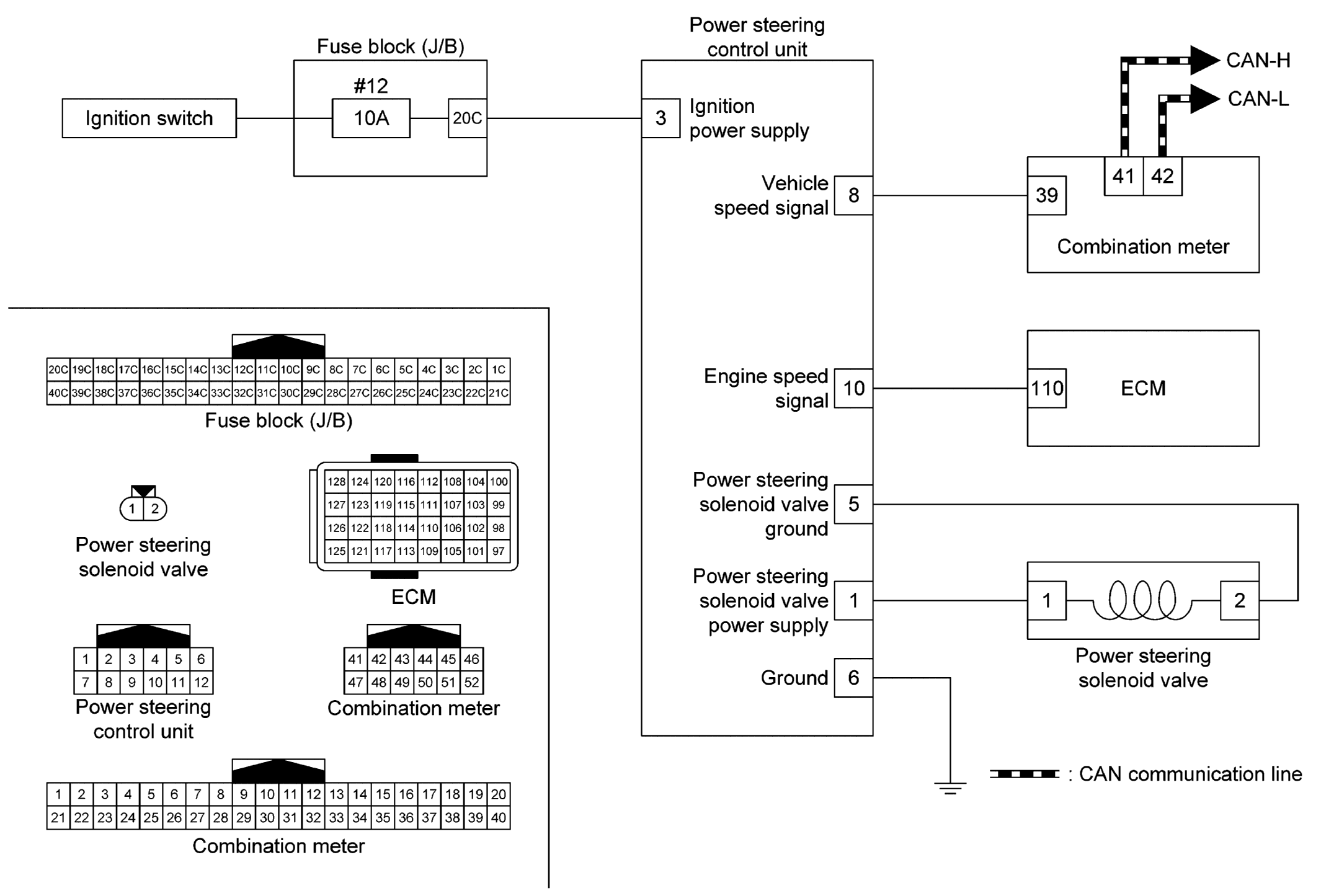

Fig 1: Power Steering Control Unit Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
