Intelligent Key System Connector End Views

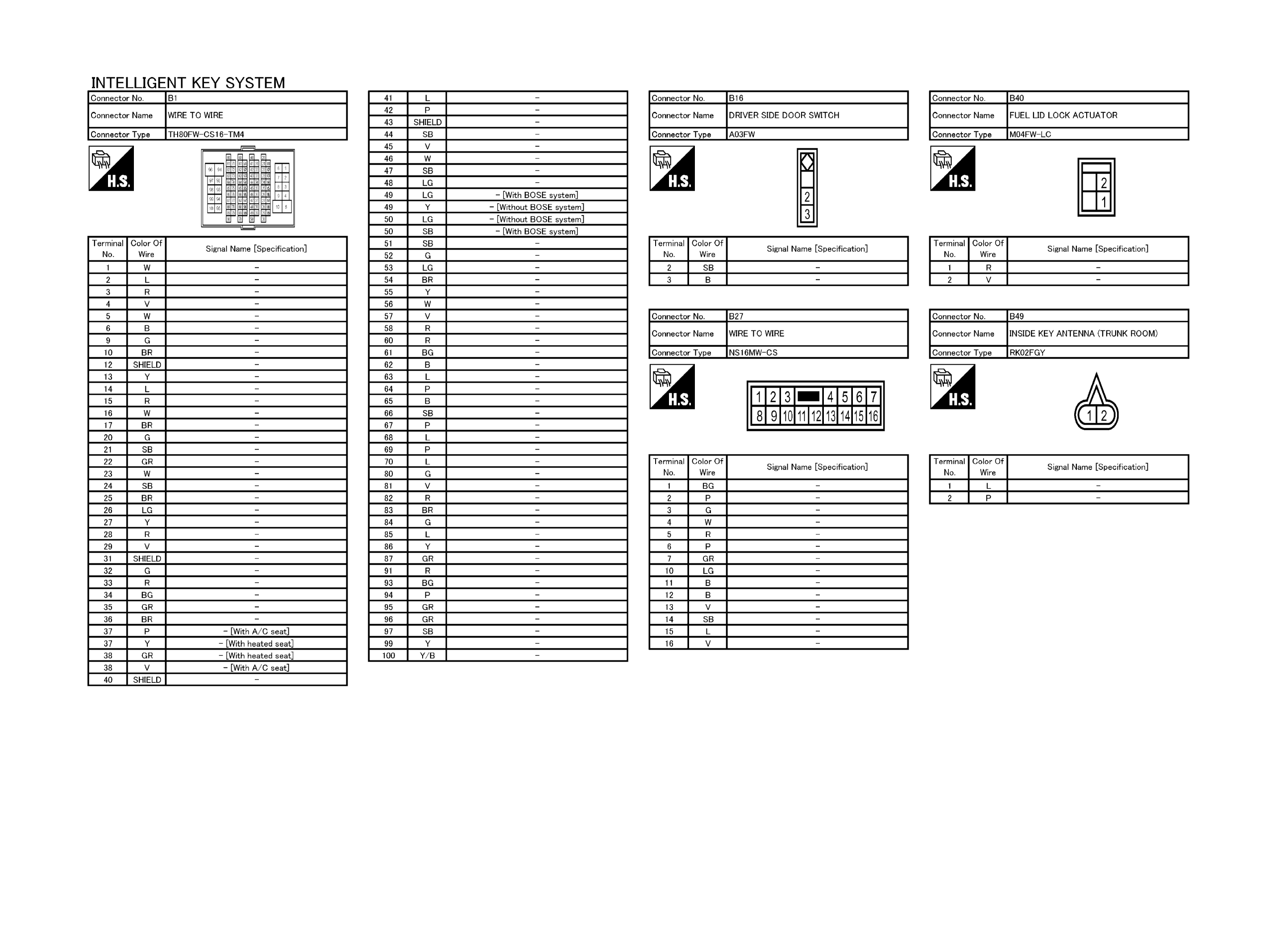

Fig 1: Intelligent Key System Connector End Views (1 Of 11)
GNSJRKWD3030GB-030Courtesy of NISSAN NORTH AMERICA, INC.

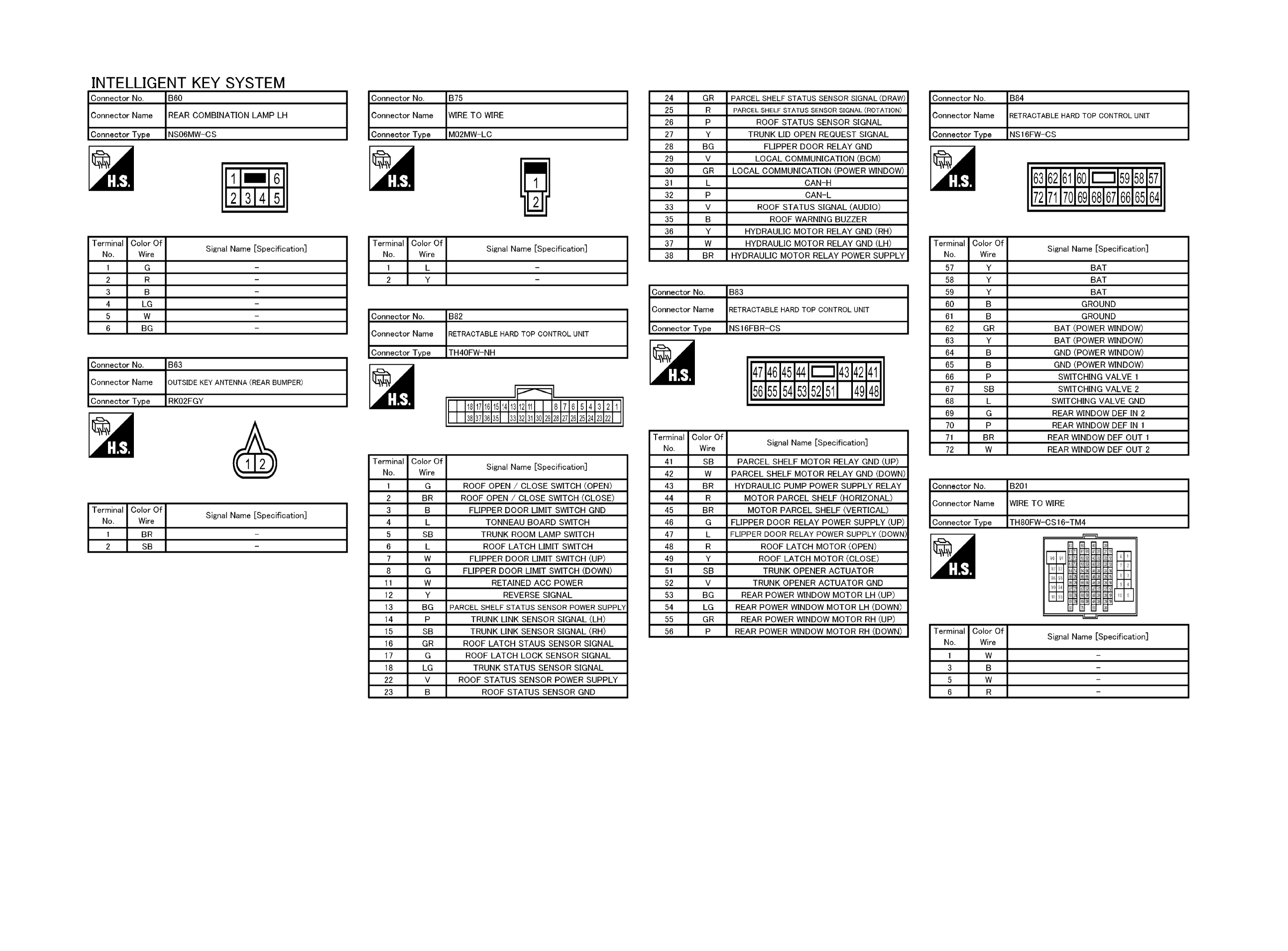

Fig 2: Intelligent Key System Connector End Views (2 Of 11)
GNSJRKWD3031GB-031Courtesy of NISSAN NORTH AMERICA, INC.

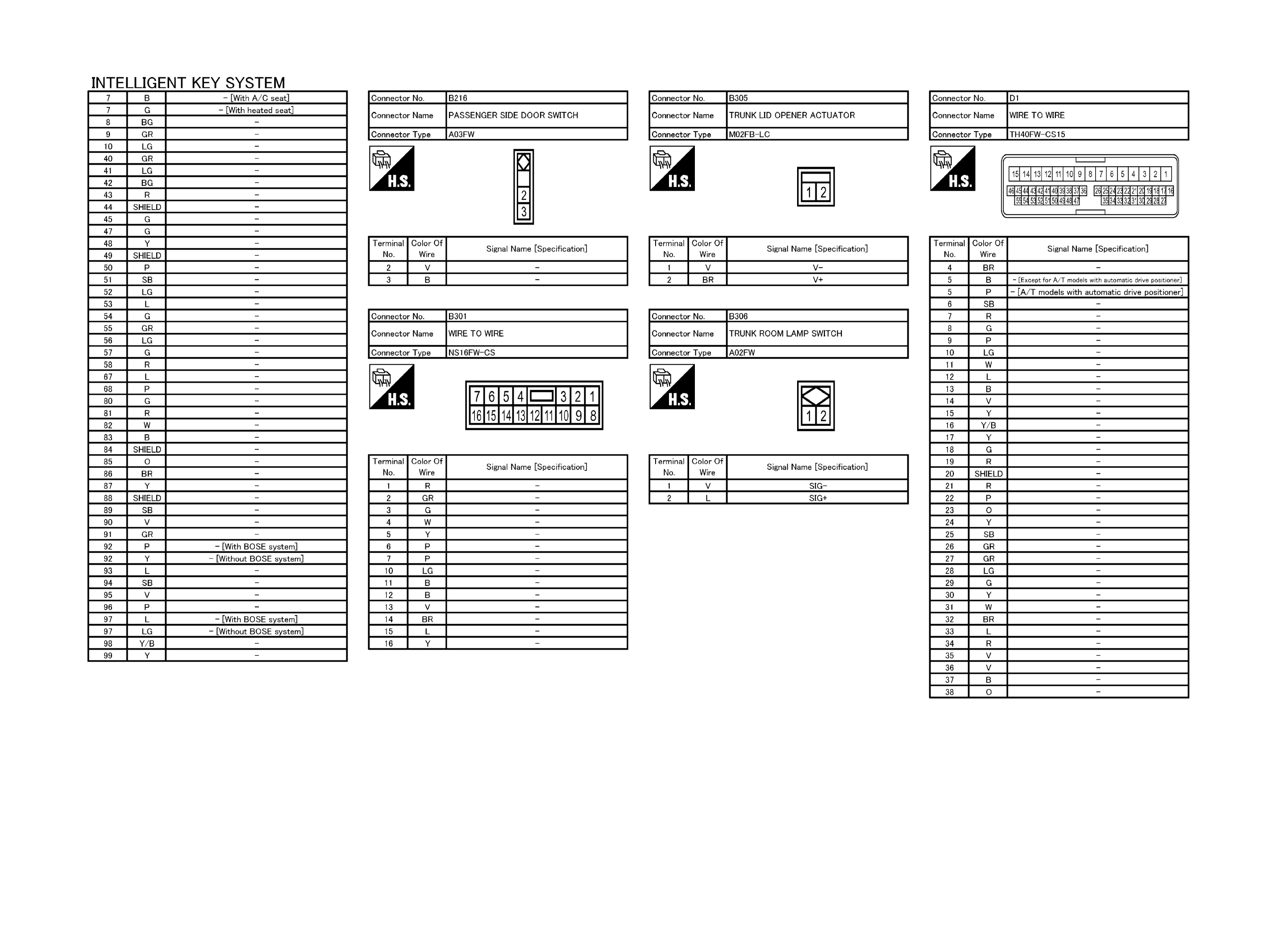

Fig 3: Intelligent Key System Connector End Views (3 Of 11)
GNSJRKWD3032GB-032Courtesy of NISSAN NORTH AMERICA, INC.

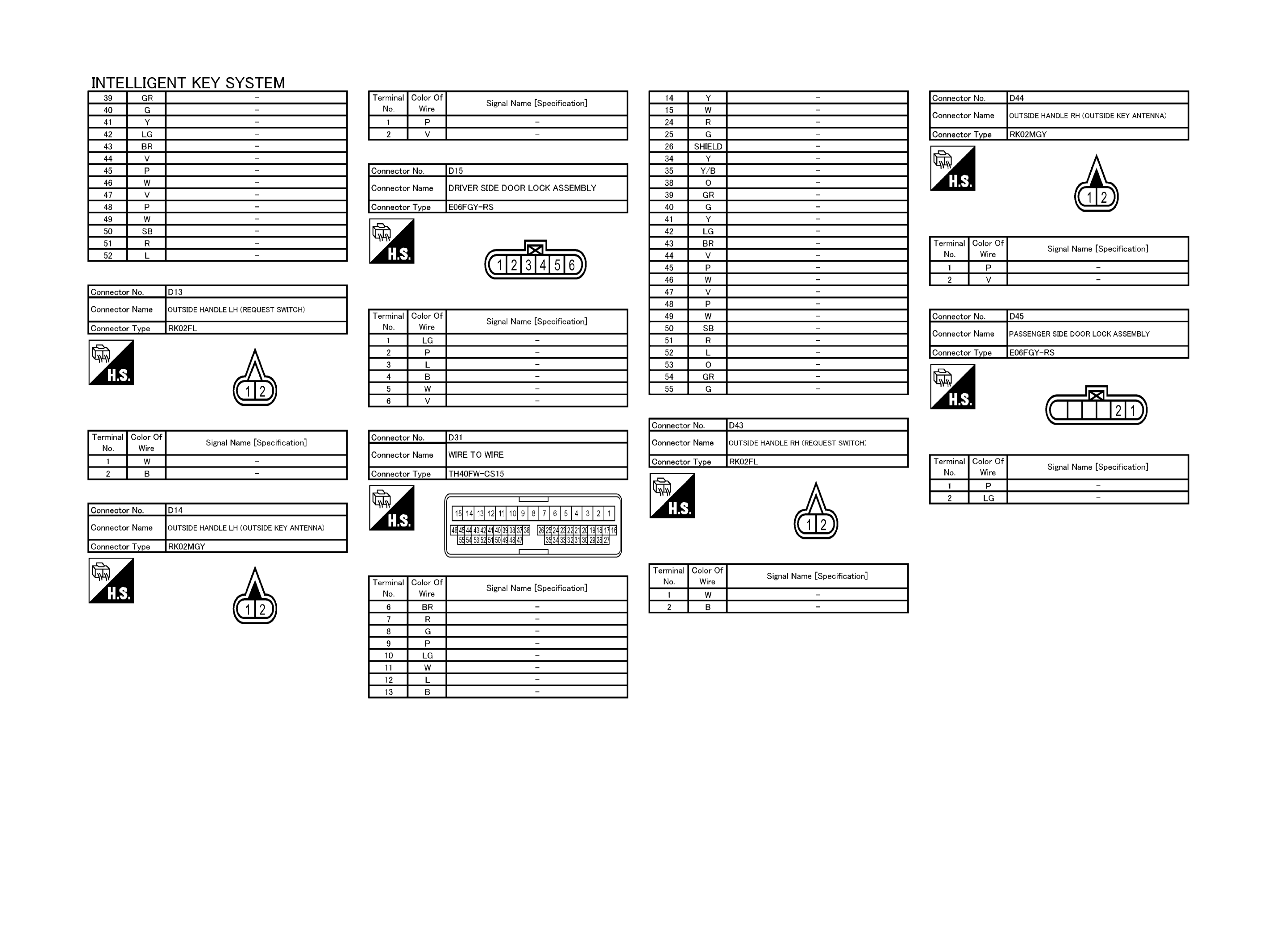

Fig 4: Intelligent Key System Connector End Views (4 Of 11)
GNSJRKWD3033GB-033Courtesy of NISSAN NORTH AMERICA, INC.

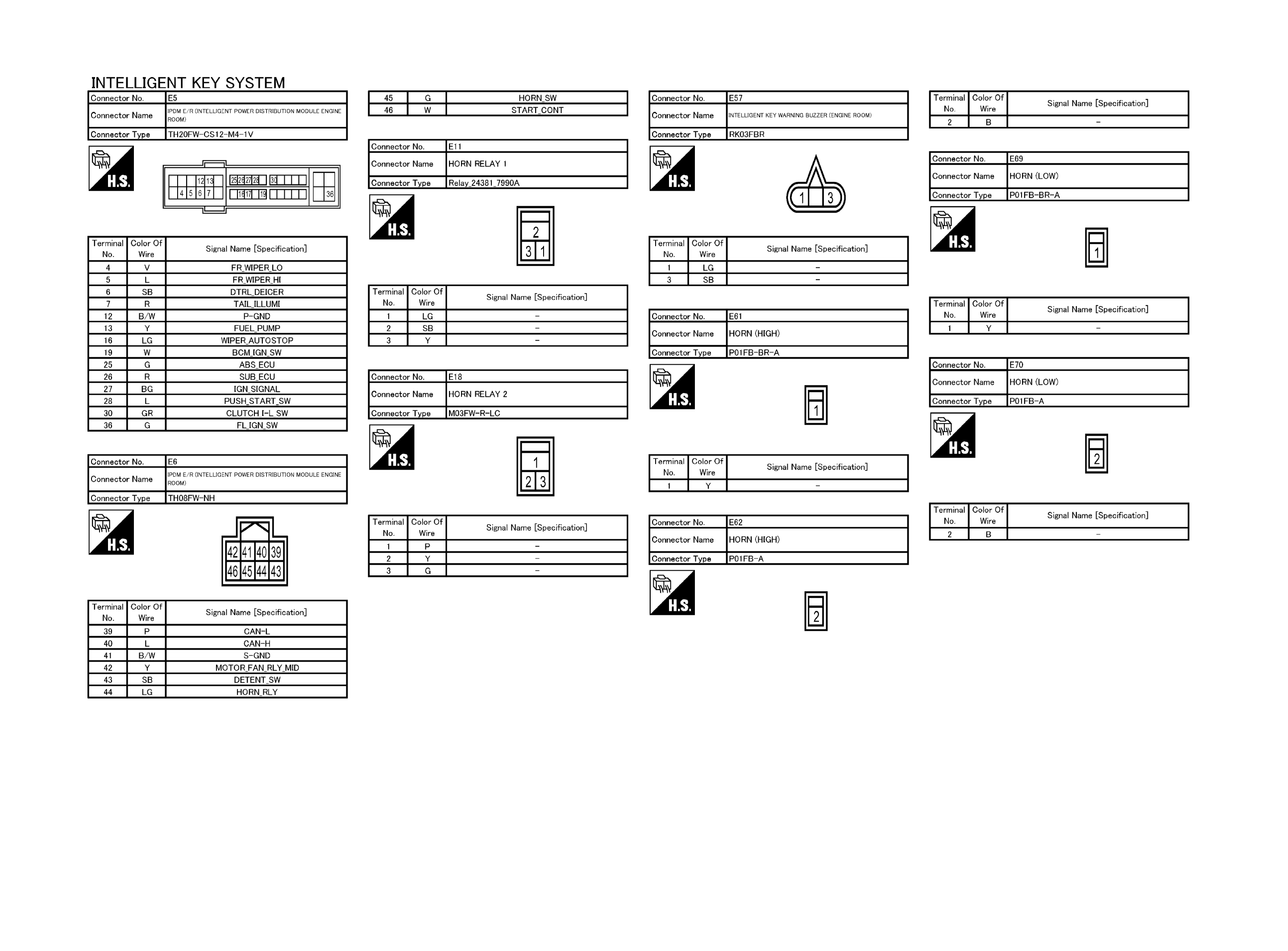

Fig 5: Intelligent Key System Connector End Views (5 Of 11)
GNSJRKWD3034GB-034Courtesy of NISSAN NORTH AMERICA, INC.

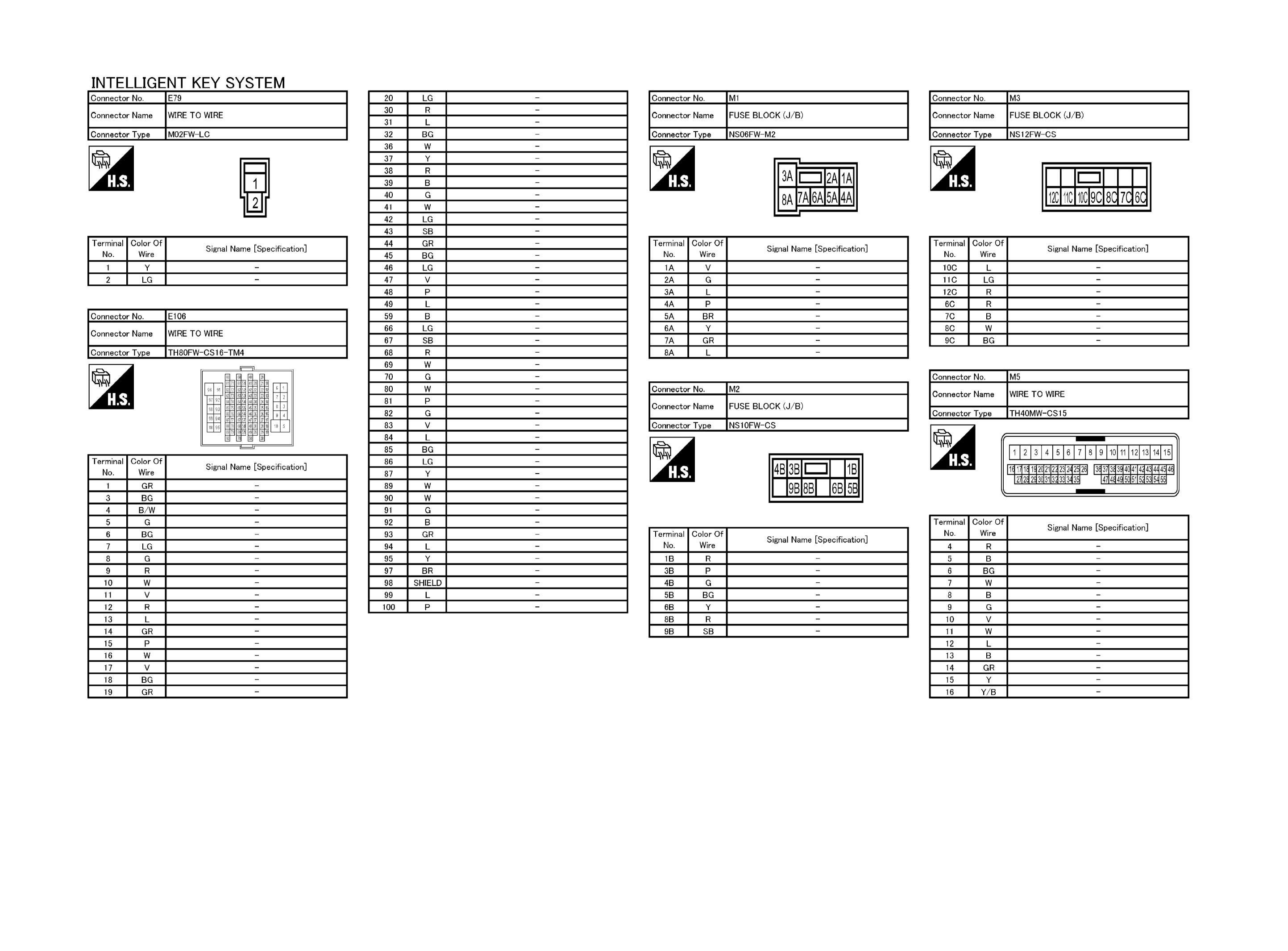

Fig 6: Intelligent Key System Connector End Views (6 Of 11)
GNSJRKWD3035GB-035Courtesy of NISSAN NORTH AMERICA, INC.

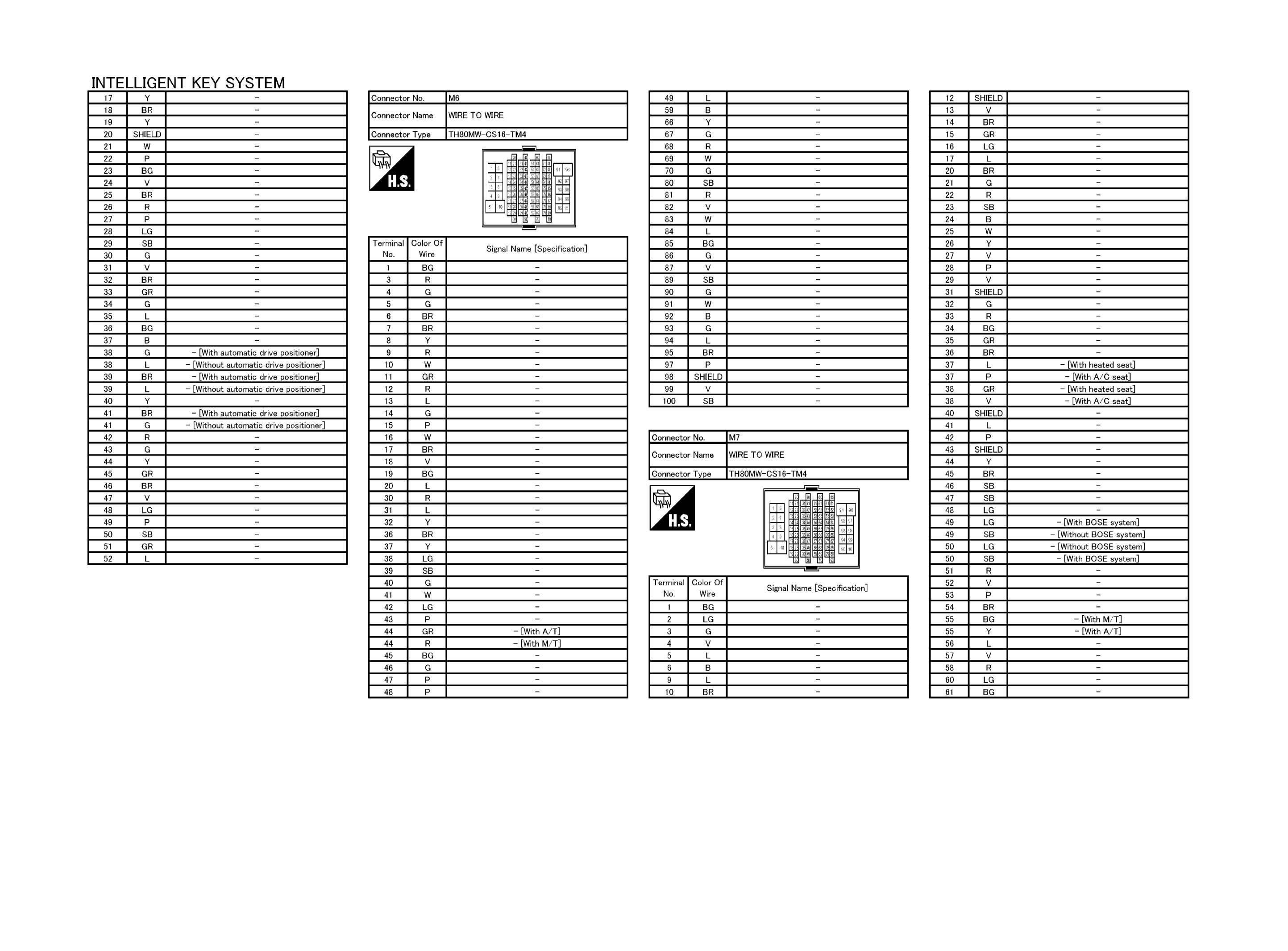

Fig 7: Intelligent Key System Connector End Views (7 Of 11)
GNSJRKWD3036GB-036Courtesy of NISSAN NORTH AMERICA, INC.

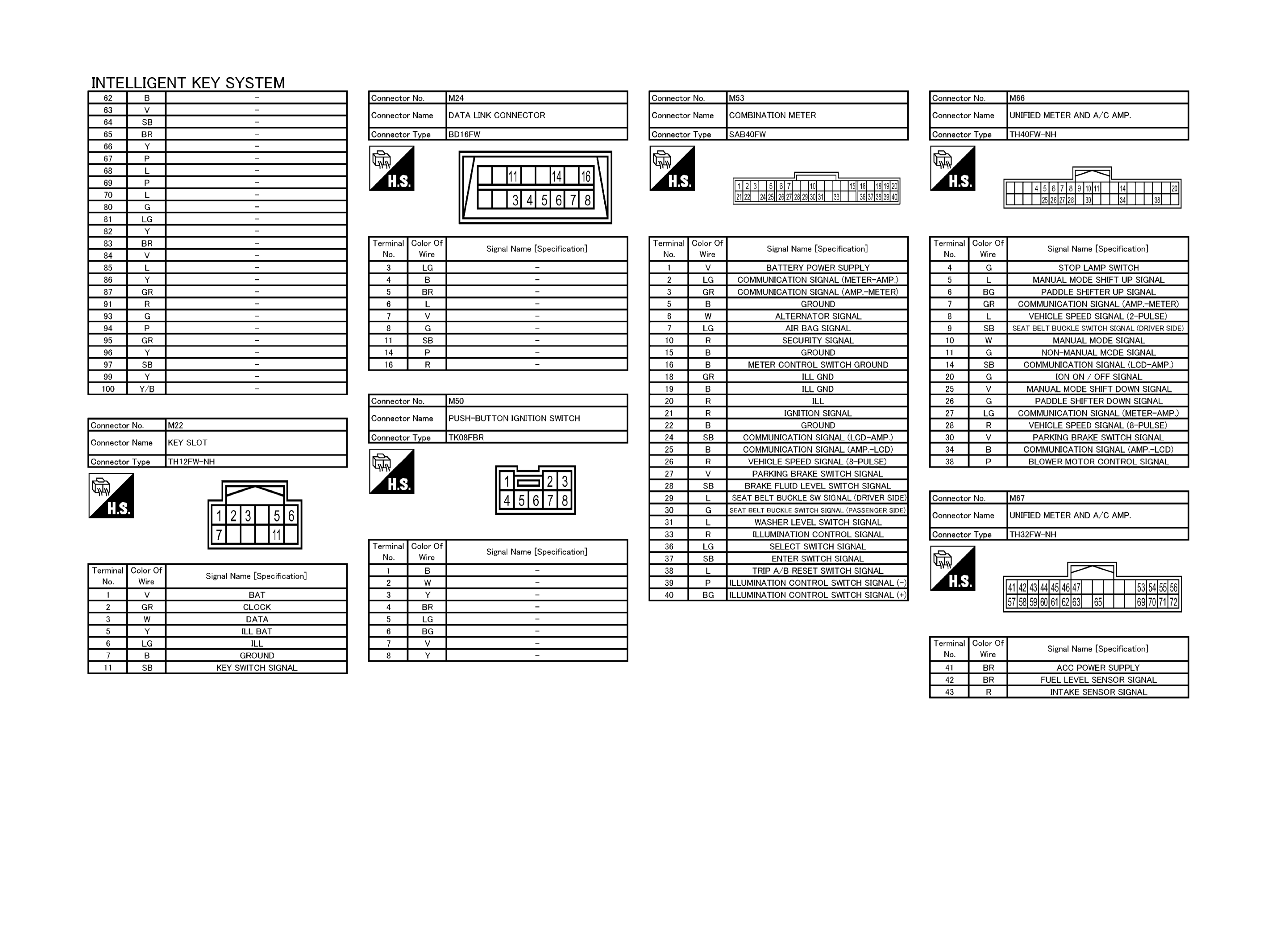

Fig 8: Intelligent Key System Connector End Views (8 Of 11)
GNSJRKWD3037GB-037Courtesy of NISSAN NORTH AMERICA, INC.

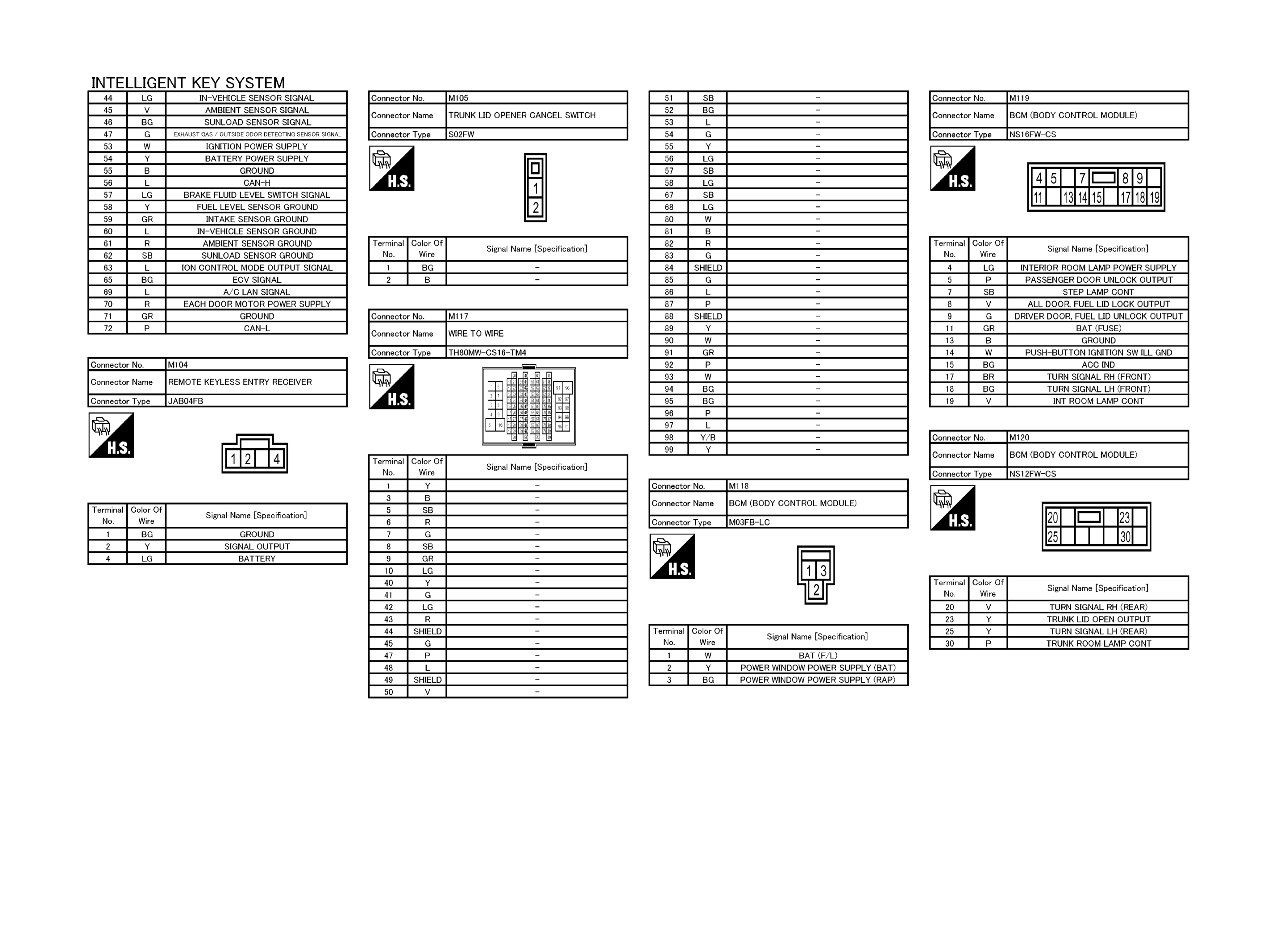

Fig 9: Intelligent Key System Connector End Views (9 Of 11)
GNSJRKWD3038GB-038Courtesy of NISSAN NORTH AMERICA, INC.

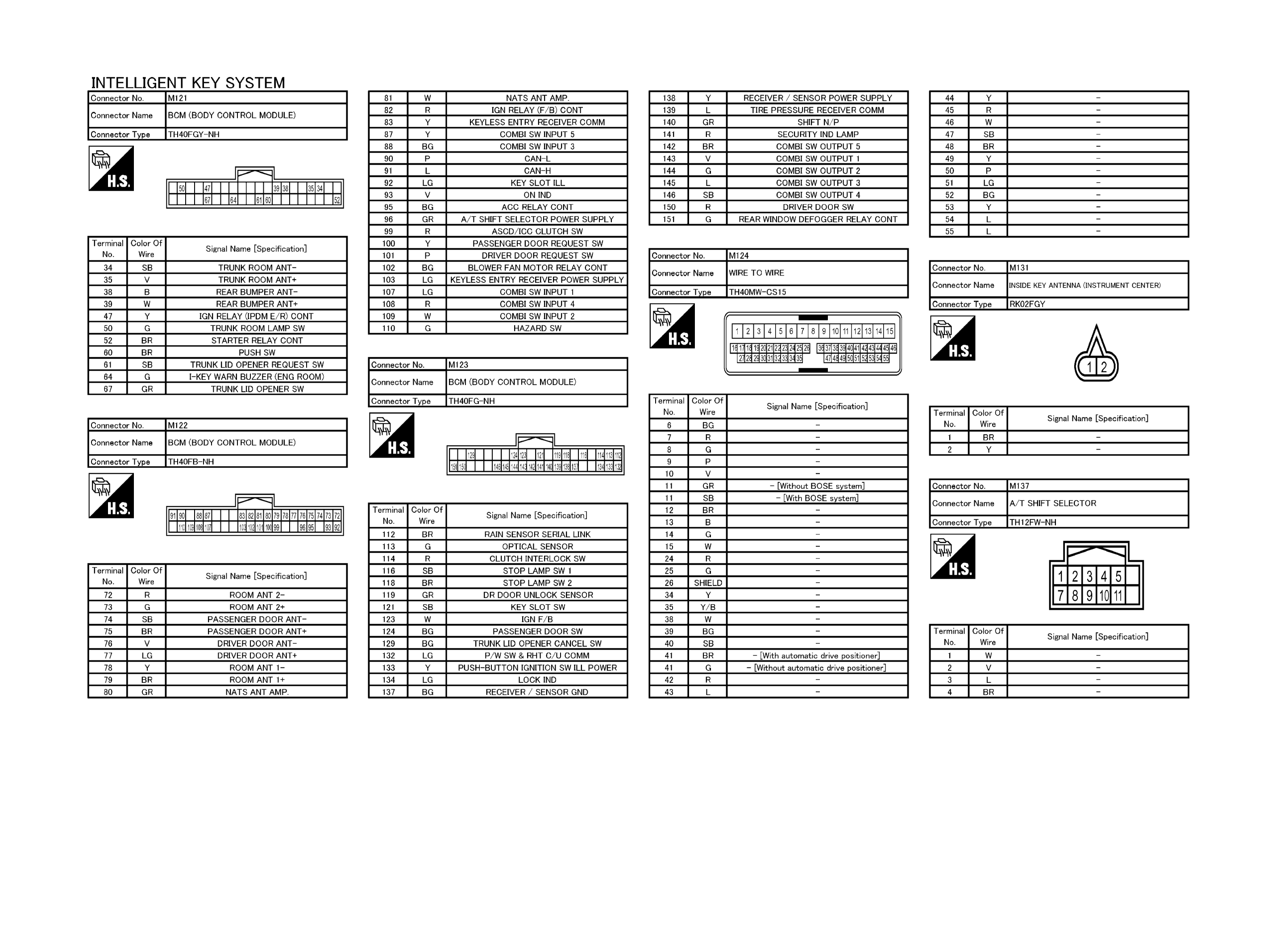

Fig 10: Intelligent Key System Connector End Views (10 Of 11)
GNSJRKWD3039GB-039Courtesy of NISSAN NORTH AMERICA, INC.

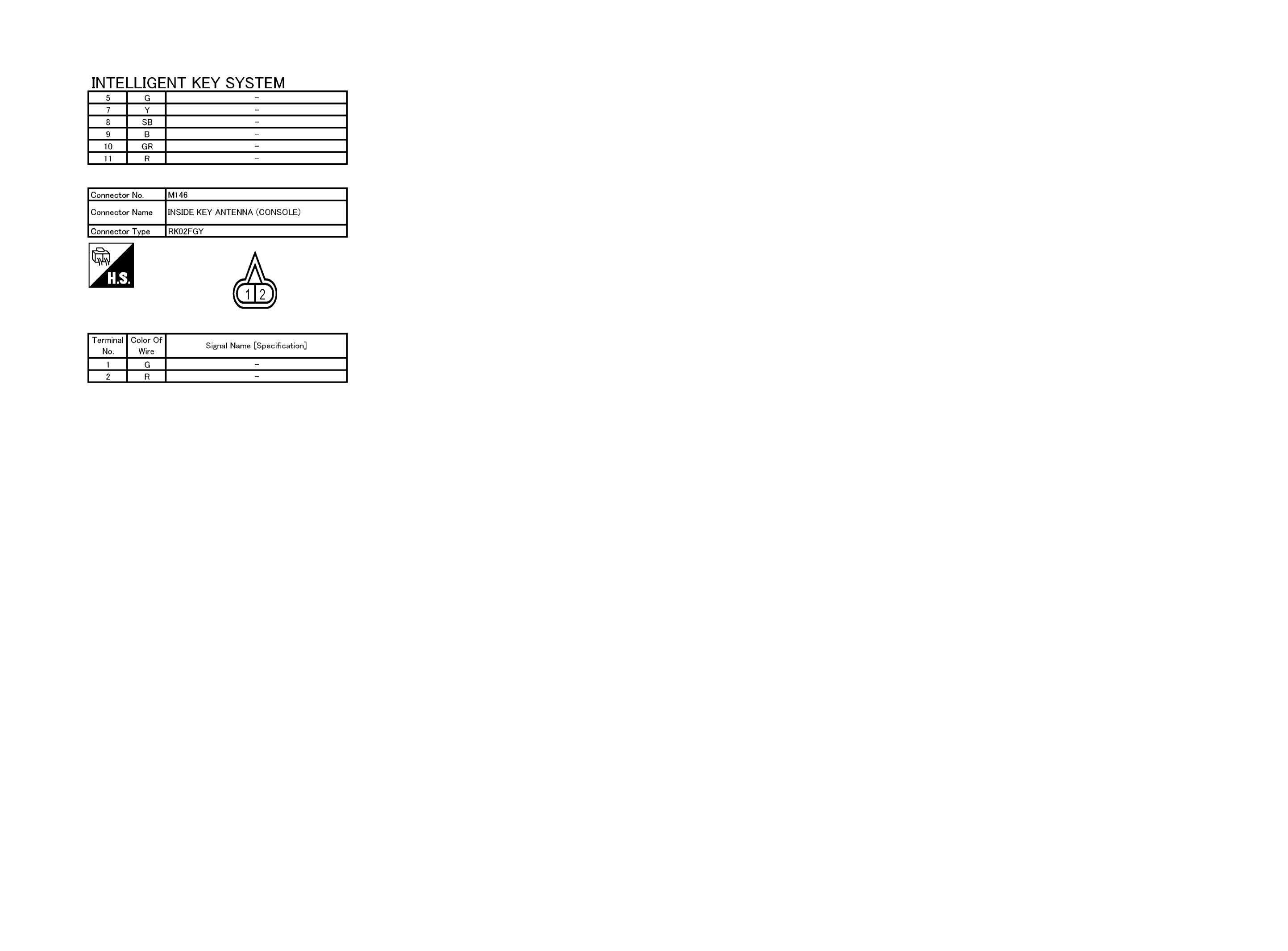

Fig 11: Intelligent Key System Connector End Views (11 Of 11)
GNSJRKWD3040GB-040Courtesy of NISSAN NORTH AMERICA, INC.
