Can System Connector End Views

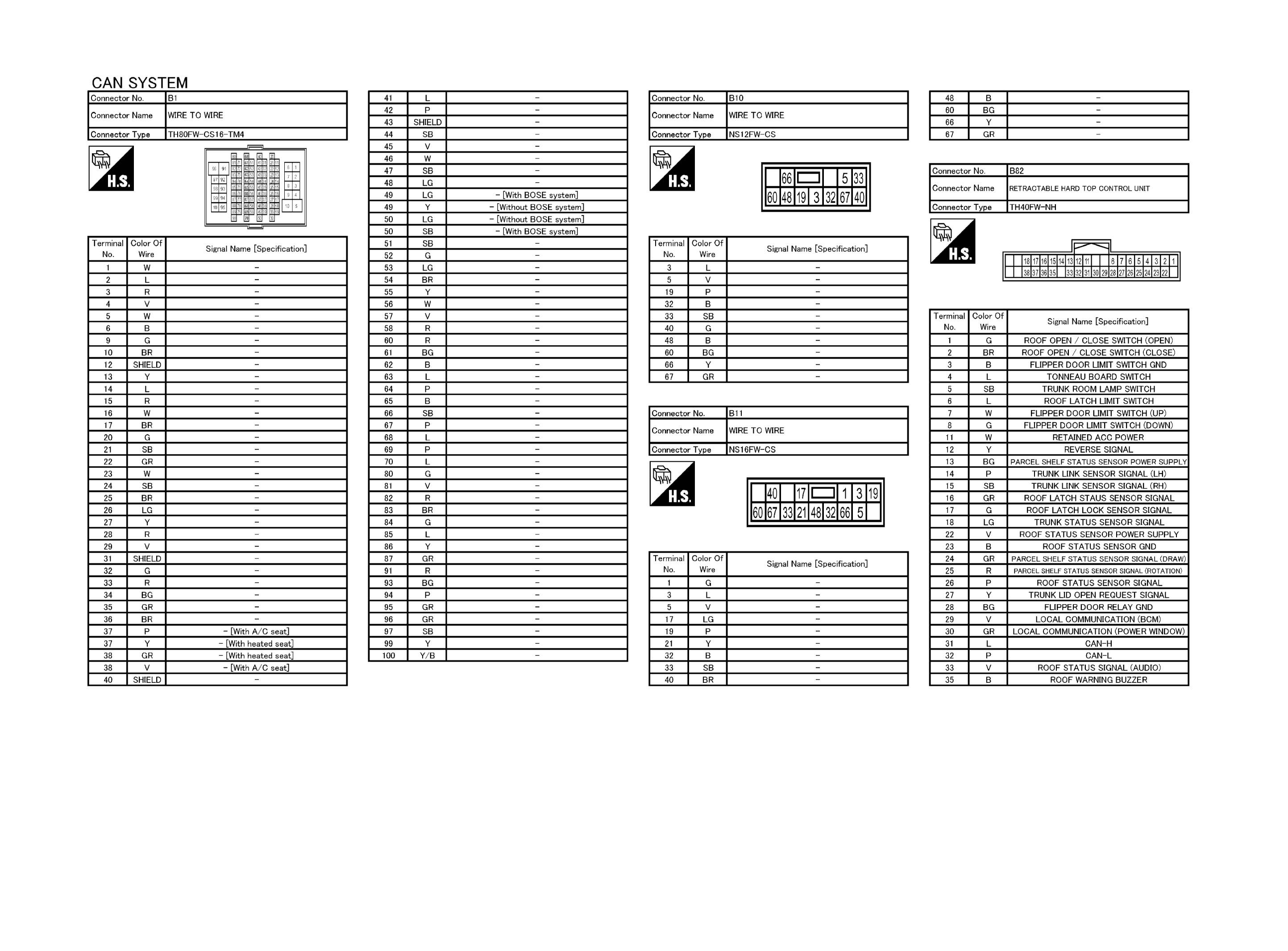

Fig 1: CAN System Connector End Views (1 Of 6)

GNSJRMWF1753GB-753

Courtesy of NISSAN NORTH AMERICA, INC.

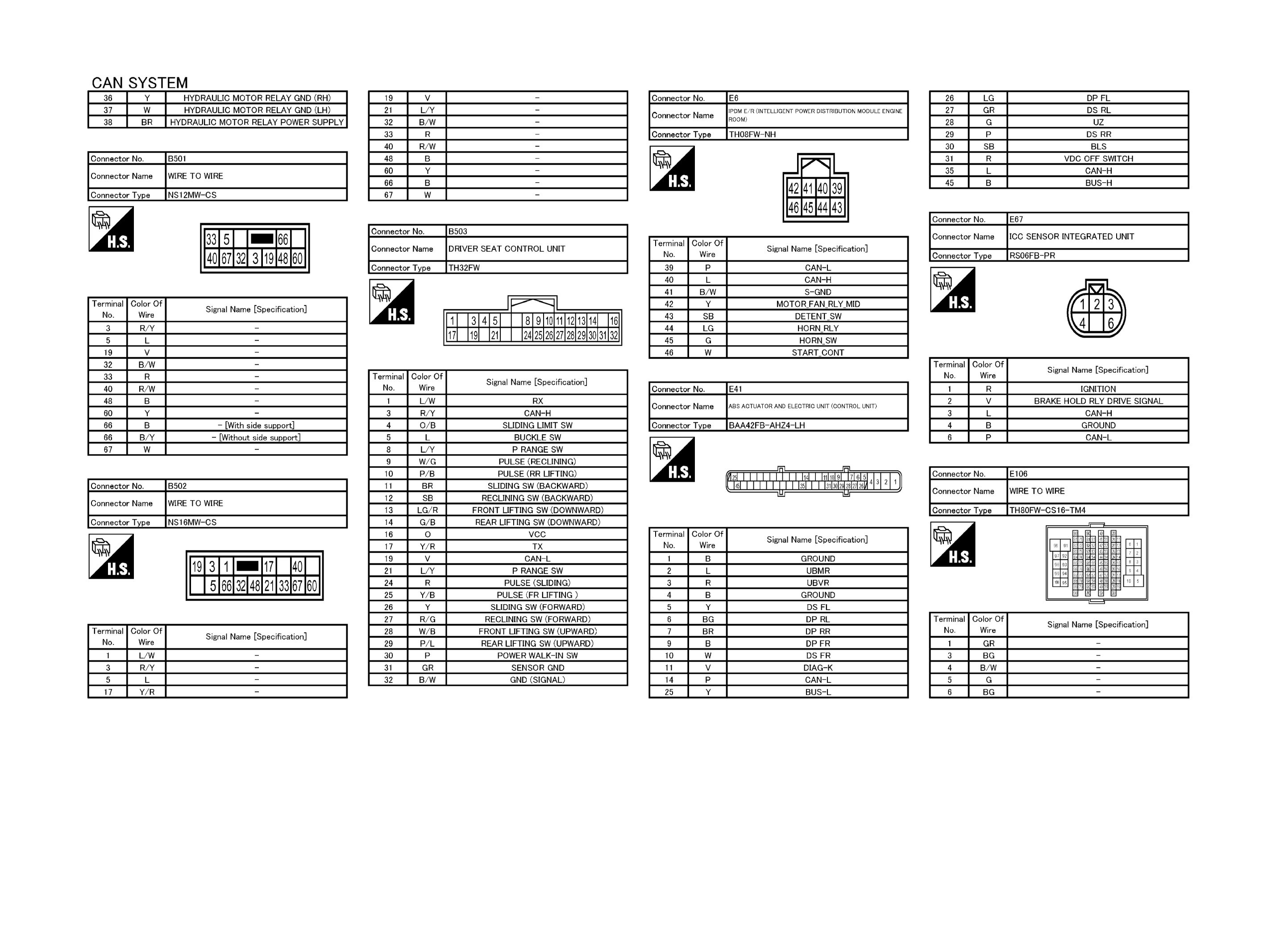

Fig 2: CAN System Connector End Views (2 Of 6)

GNSJRMWF1754GB-754

Courtesy of NISSAN NORTH AMERICA, INC.

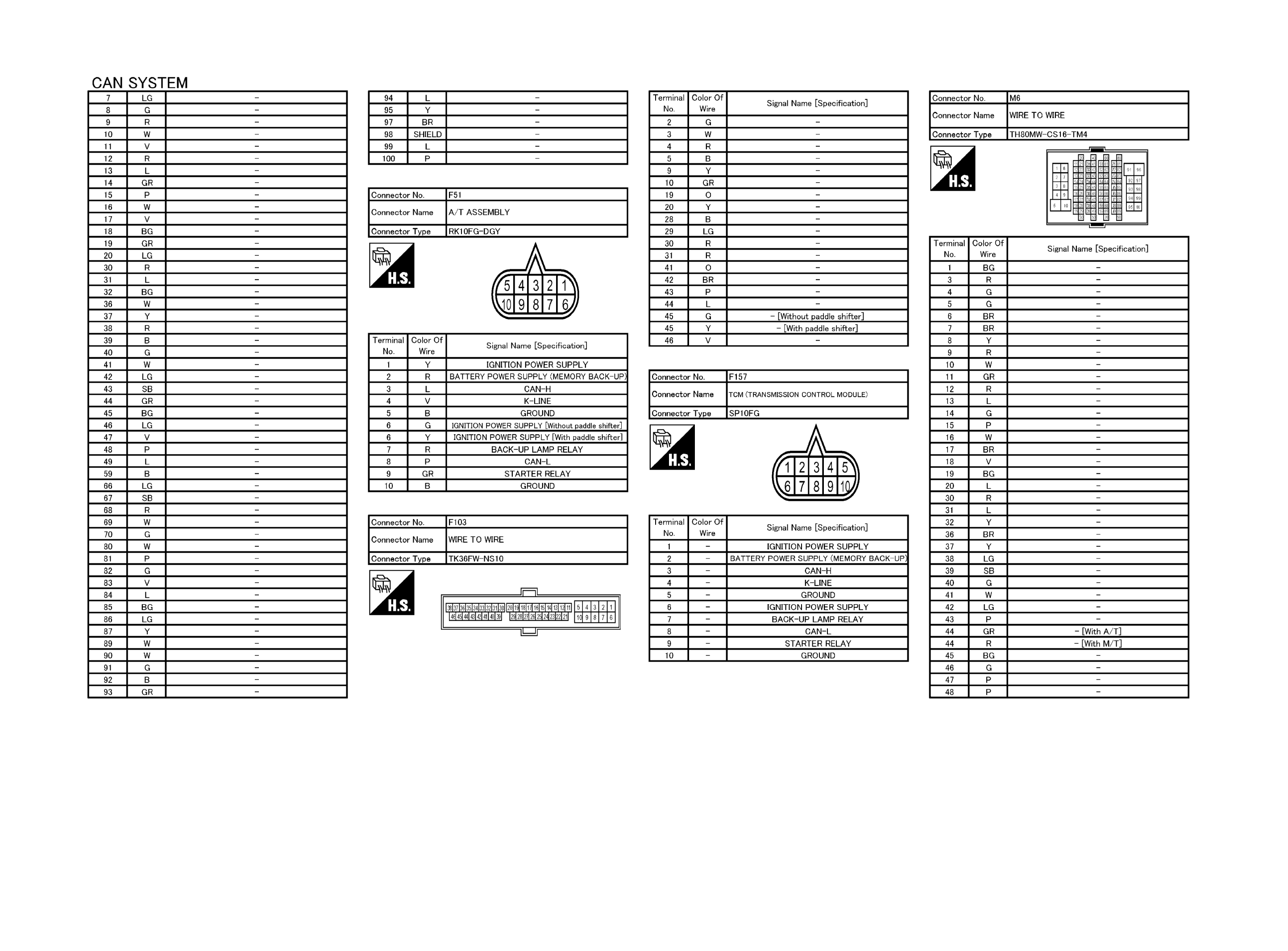

Fig 3: CAN System Connector End Views (3 Of 6)

GNSJRMWF1755GB-755

Courtesy of NISSAN NORTH AMERICA, INC.

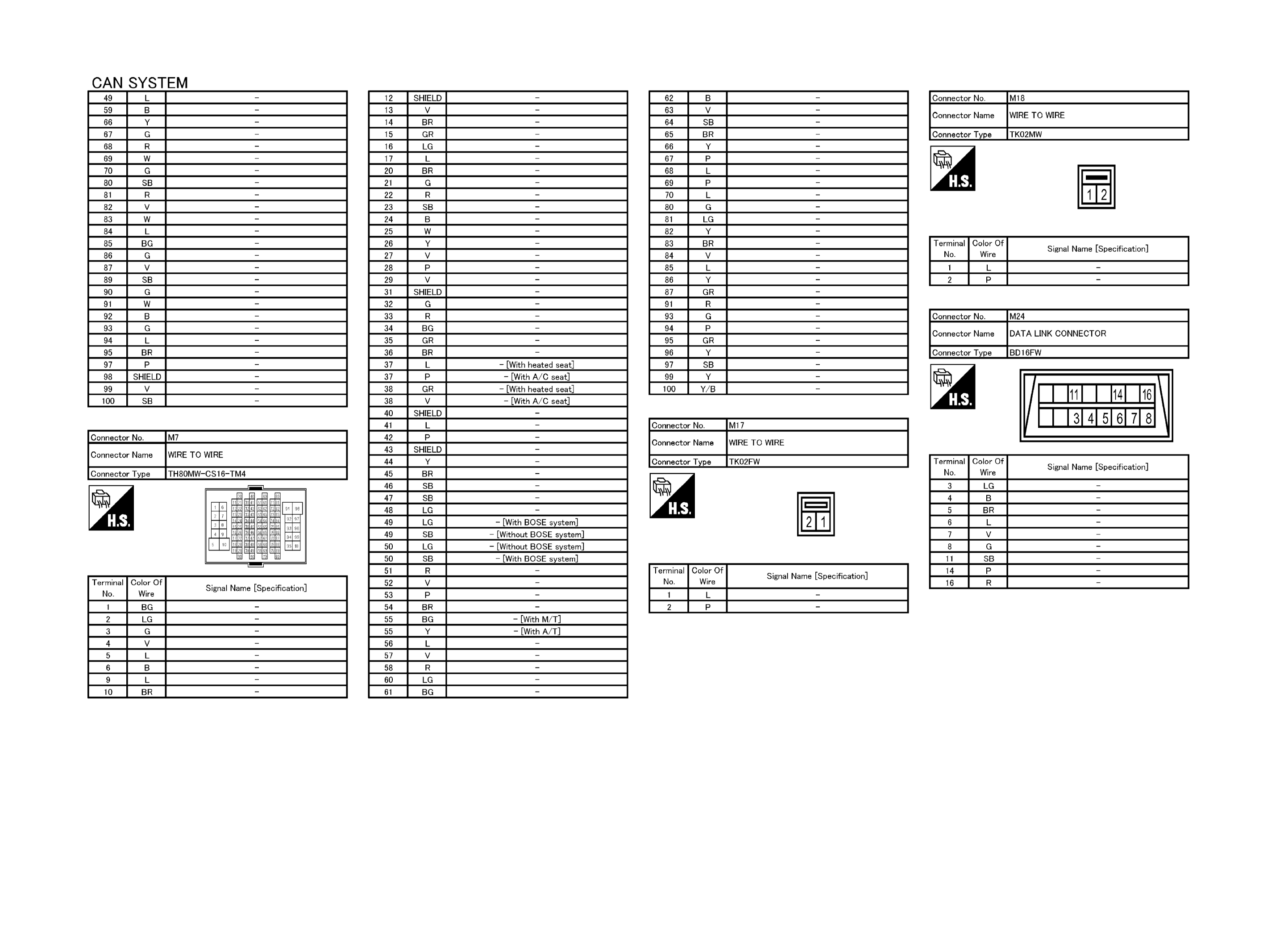

Fig 4: CAN System Connector End Views (4 Of 6)

GNSJRMWF1756GB-756

Courtesy of NISSAN NORTH AMERICA, INC.

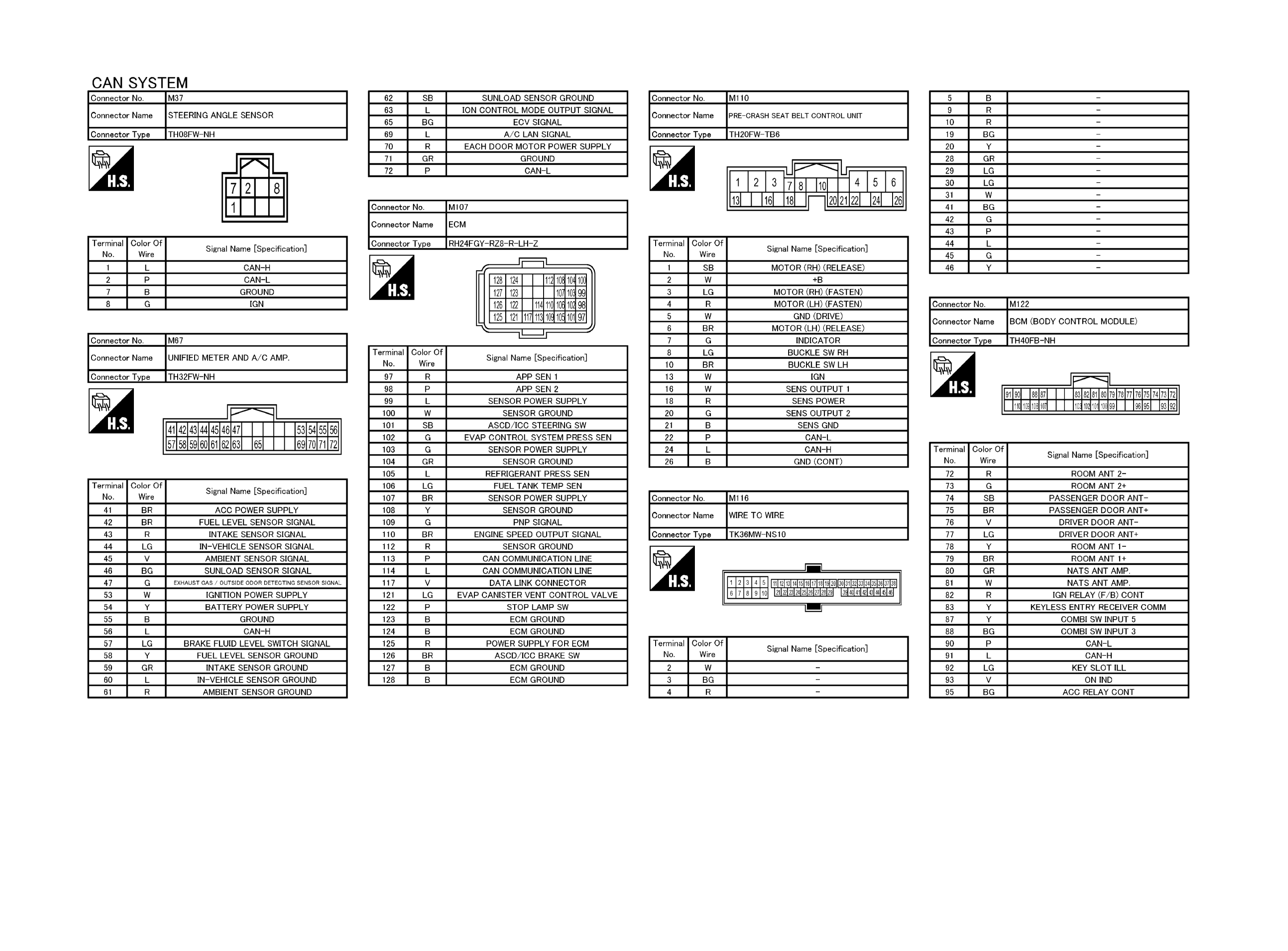

Fig 5: CAN System Connector End Views (5 Of 6)

GNSJRMWF1757GB-757

Courtesy of NISSAN NORTH AMERICA, INC.

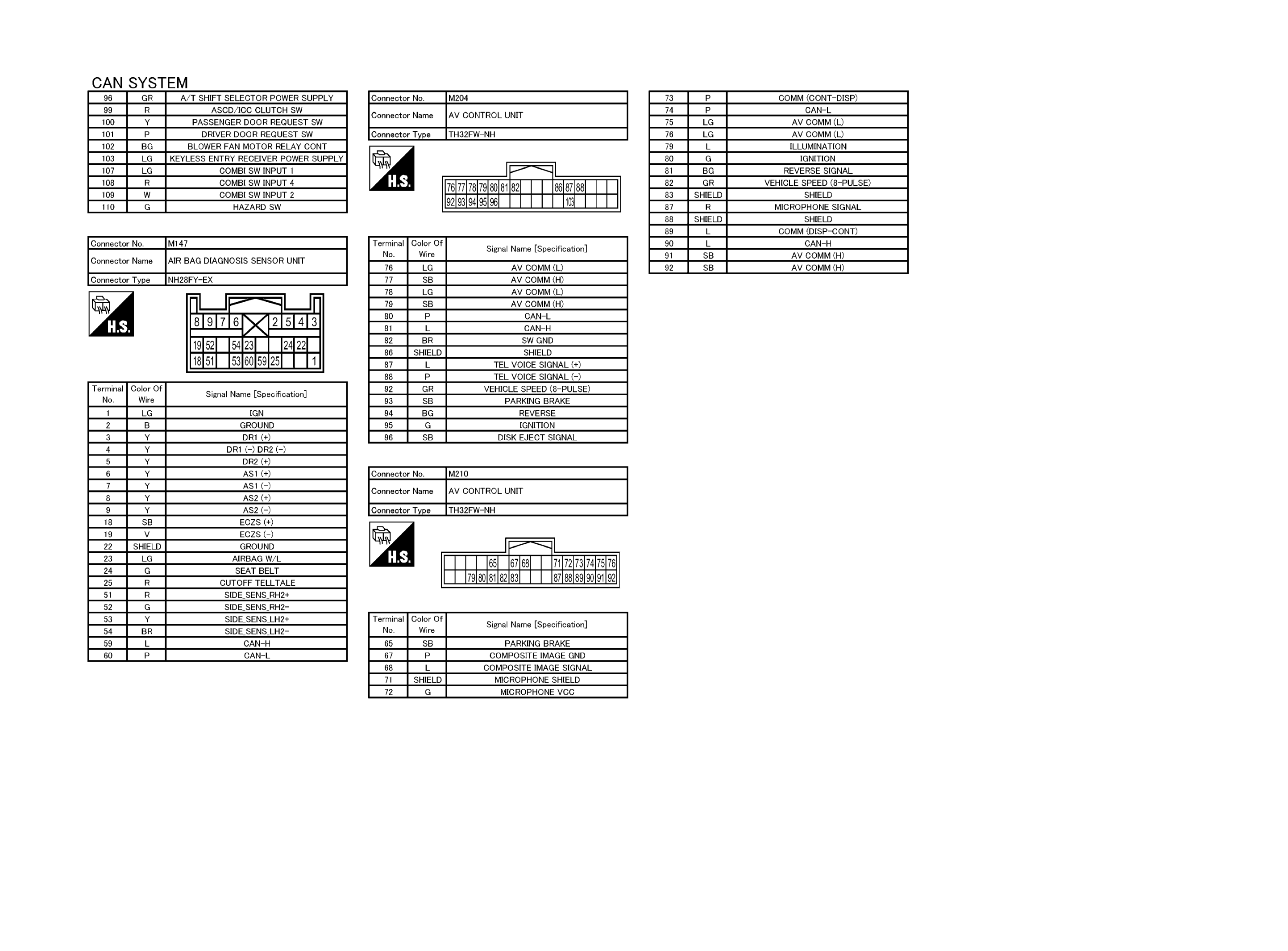

Fig 6: CAN System Connector End Views (6 Of 6)

GNSJRMWF1758GB-758

Courtesy of NISSAN NORTH AMERICA, INC.
