Physical Values

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
+	-	Signal name	Input/Output	Condition		Value (Approx.)
1 (G)	Ground	Ignition signal	Input	Ignition switch ON	-	12.0 V
2 (SB)	Ground	Sonar cancel switch signal	Input	Ignition switch ON	Turns ON while pressing sonar cancel switch ON.	2.0 V
2 (SB)	Ground	Sonar cancel switch signal	Input	Ignition switch ON	Other than while pressing sonar cancel switch ON.	12.0 V

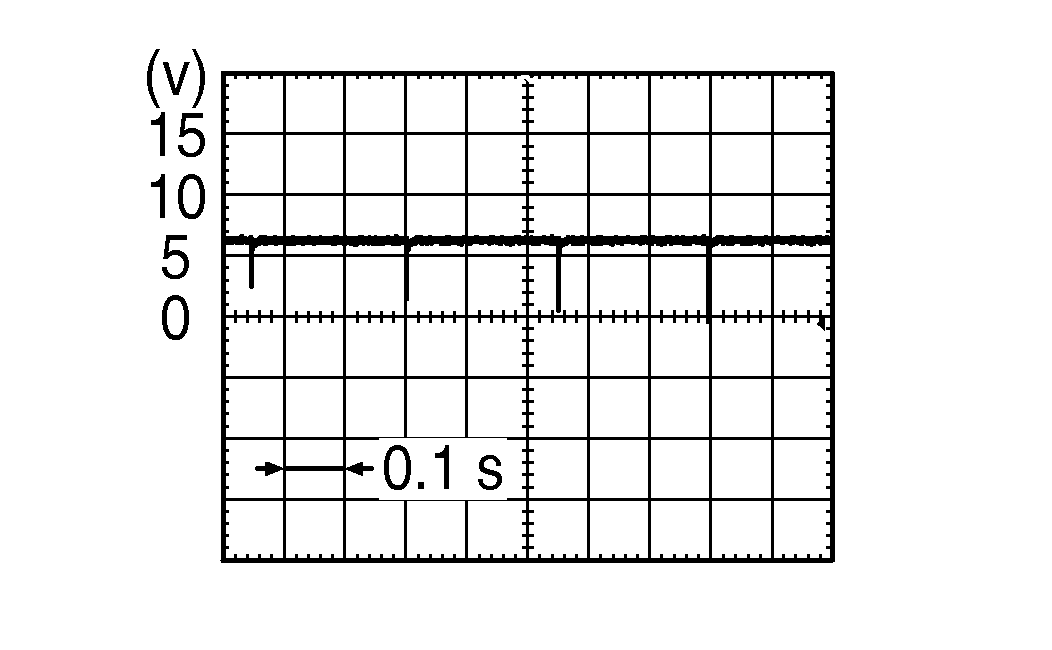

5 (LG)	12 (V)	Corner sensor signal rear LH	Input	Ignition switch ON	Shift position in reverse position.	Courtesy of NISSAN NORTH AMERICA, INC.
6 (L)	12 (V)	Corner sensor signal rear RH	Input	Ignition switch ON	Selector lever in reverse position.	Courtesy of NISSAN NORTH AMERICA, INC.
7 (BR)	12 (V)	Center sensor signal rear LH	Input	Ignition switch ON	Selector lever in R position.	Courtesy of NISSAN NORTH AMERICA, INC.
8 (GR)	12 (V)	Center sensor signal rear RH	Input	Ignition switch ON	Selector lever in R position.	Courtesy of NISSAN NORTH AMERICA, INC.
11 (BR)	Ground	Sonar cancel switch indicator signal	Output	Ignition switch ON	Sonar system ON	12.0 V
11 (BR)	Ground	Sonar cancel switch indicator signal	Output	Ignition switch ON	Sonar system OFF	0 V
13 (LG)	Ground	ACC power supply	Input	Ignition switch ACC	-	Battery voltage
17 (BG)	Ground	Reverse range signal	Input	Ignition switch ON	Shift position in R position.	12.0 V
17 (BG)	Ground	Reverse range signal	Input	Ignition switch ON	Other than shift position in R position.	0 V
18 (V)	-	K - line (CONSULT)	-	-	-	-
19 (SB)	-	AV communication signal (H)	Input/Output	-	-	-
20 (LG)	-	AV communication signal (L)	Input/Output	-	-	-
24 (GR)	Ground	Ground	-	Ignition switch ON	-	0 V
