System Diagram

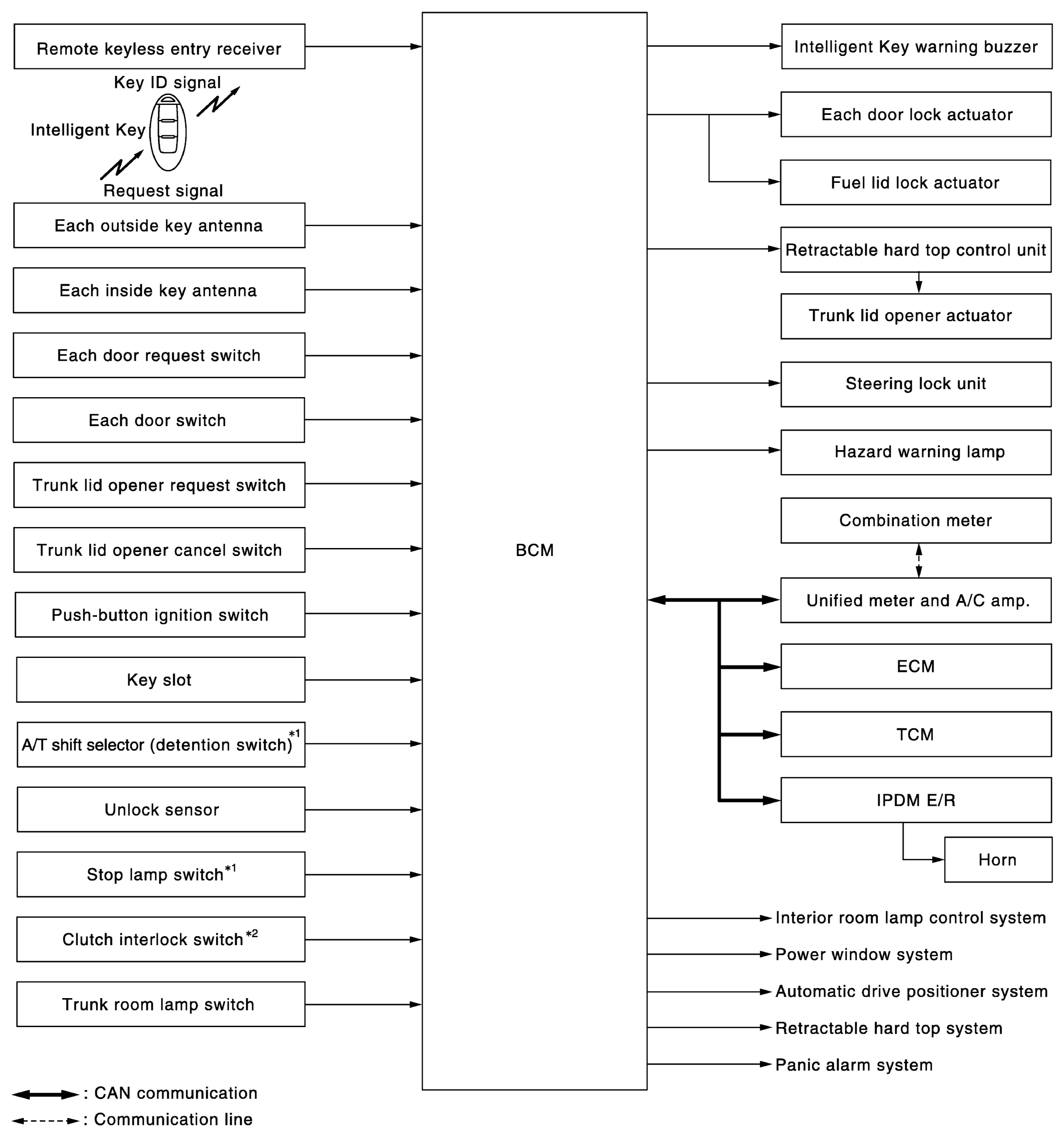

Fig 1: Intelligent Key System Diagram
G05970253Courtesy of NISSAN NORTH AMERICA, INC.

* 1 : With A/T models

* 2 : With M/T models
