Automatic Drive Positioner Control System Connector End Views

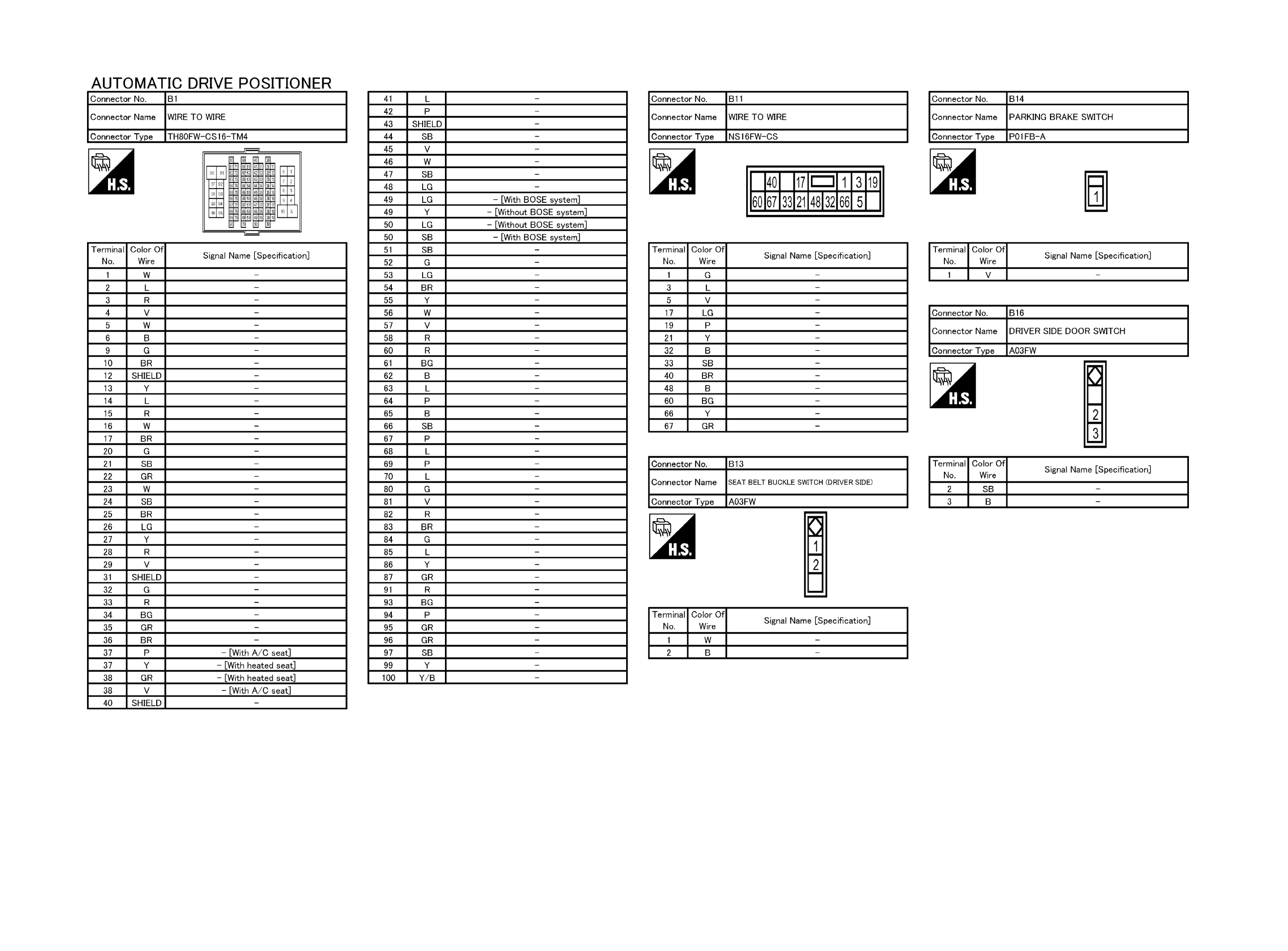

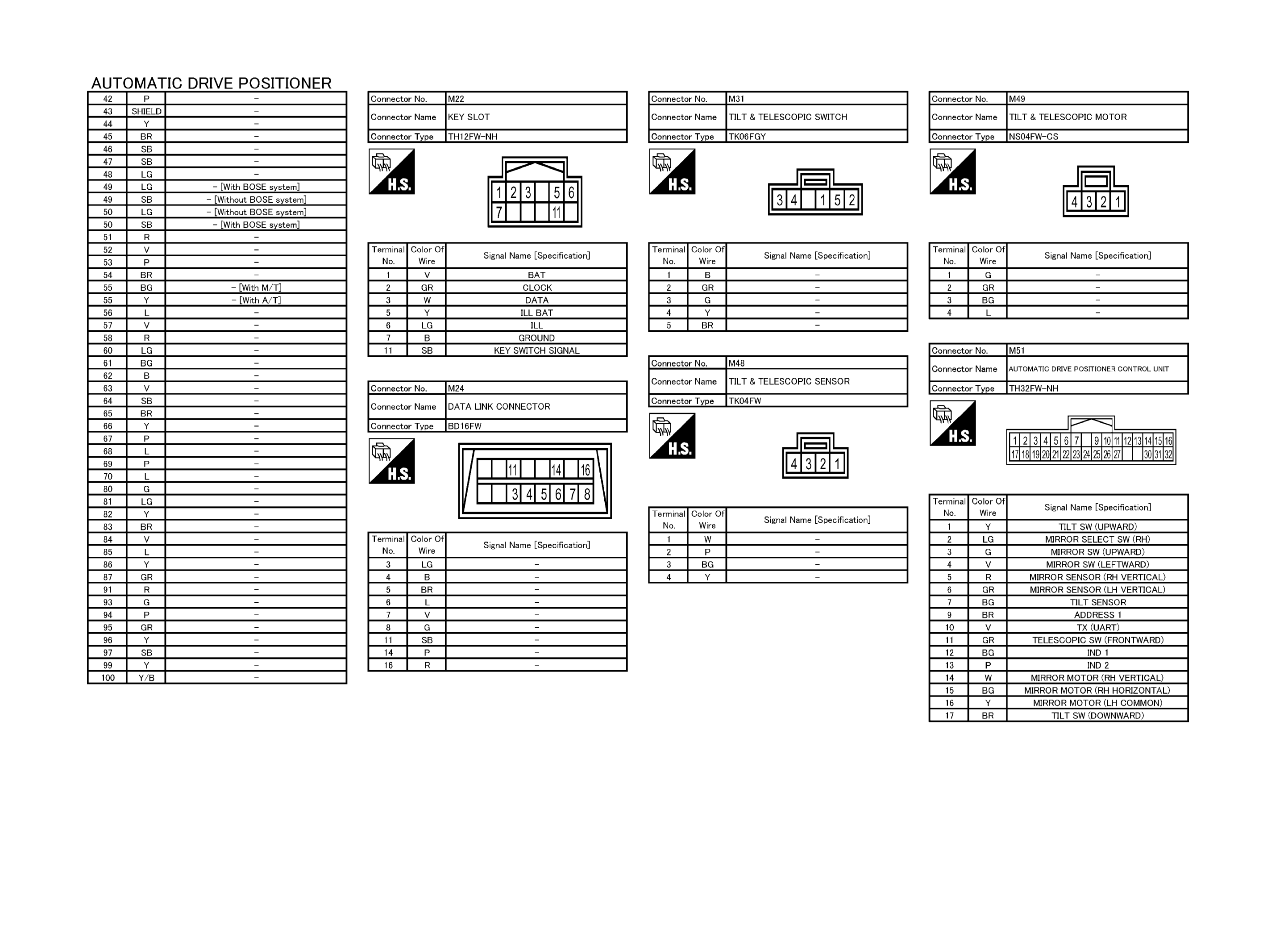

Fig 1: Automatic Drive Positioner Control System Connector End Views (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

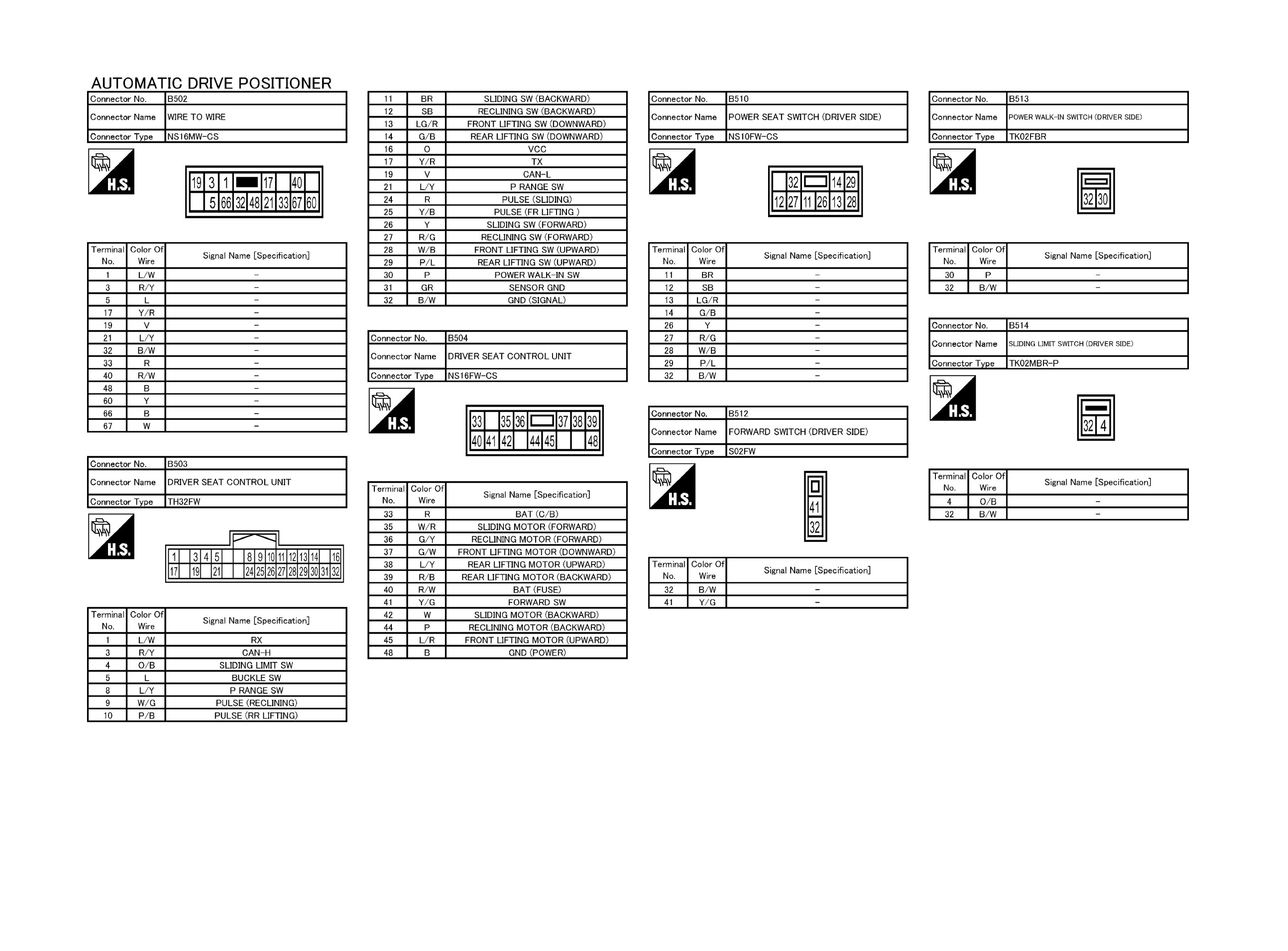

Fig 2: Automatic Drive Positioner Control System Connector End Views (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

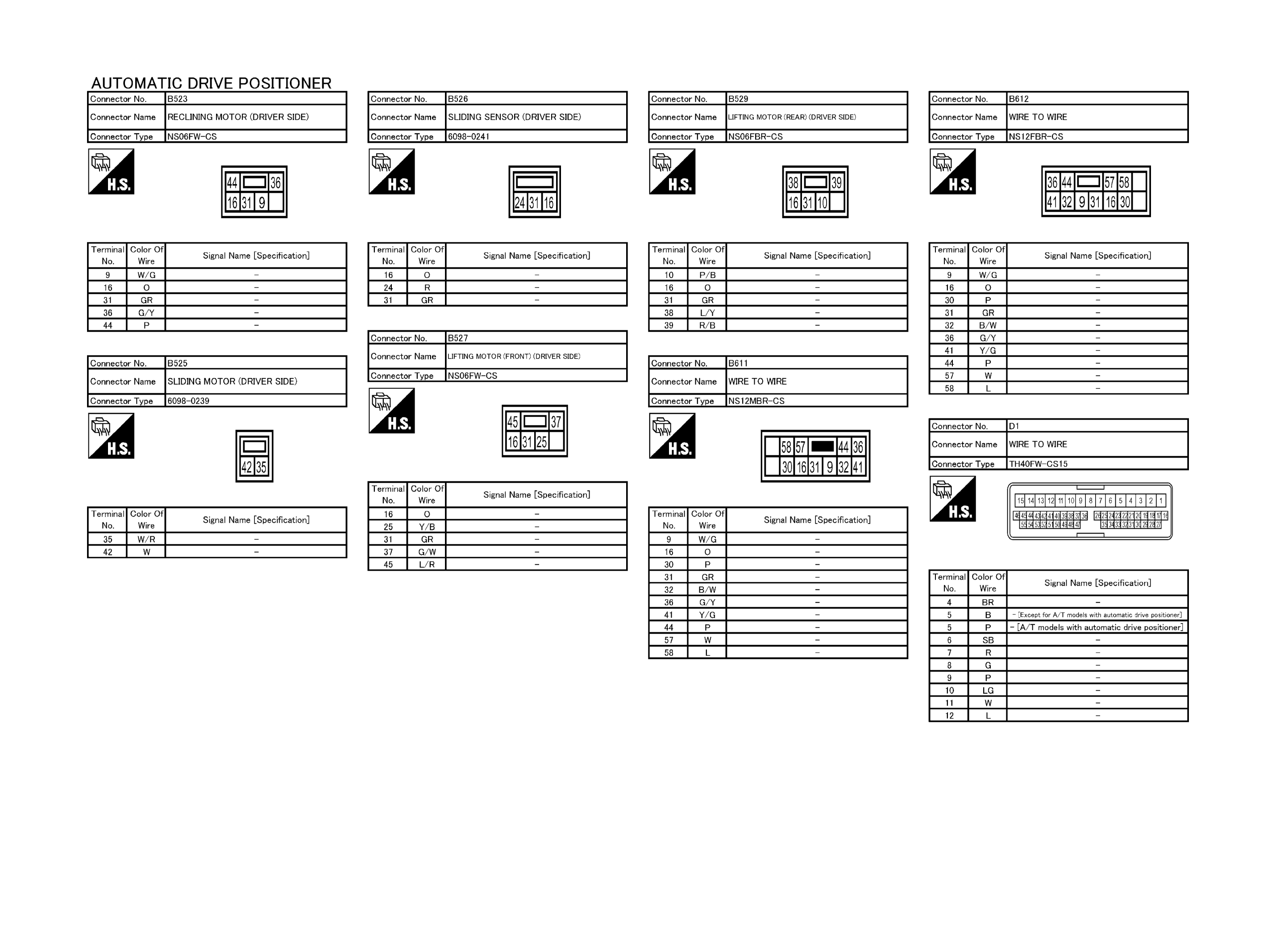

Fig 3: Automatic Drive Positioner Control System Connector End Views (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

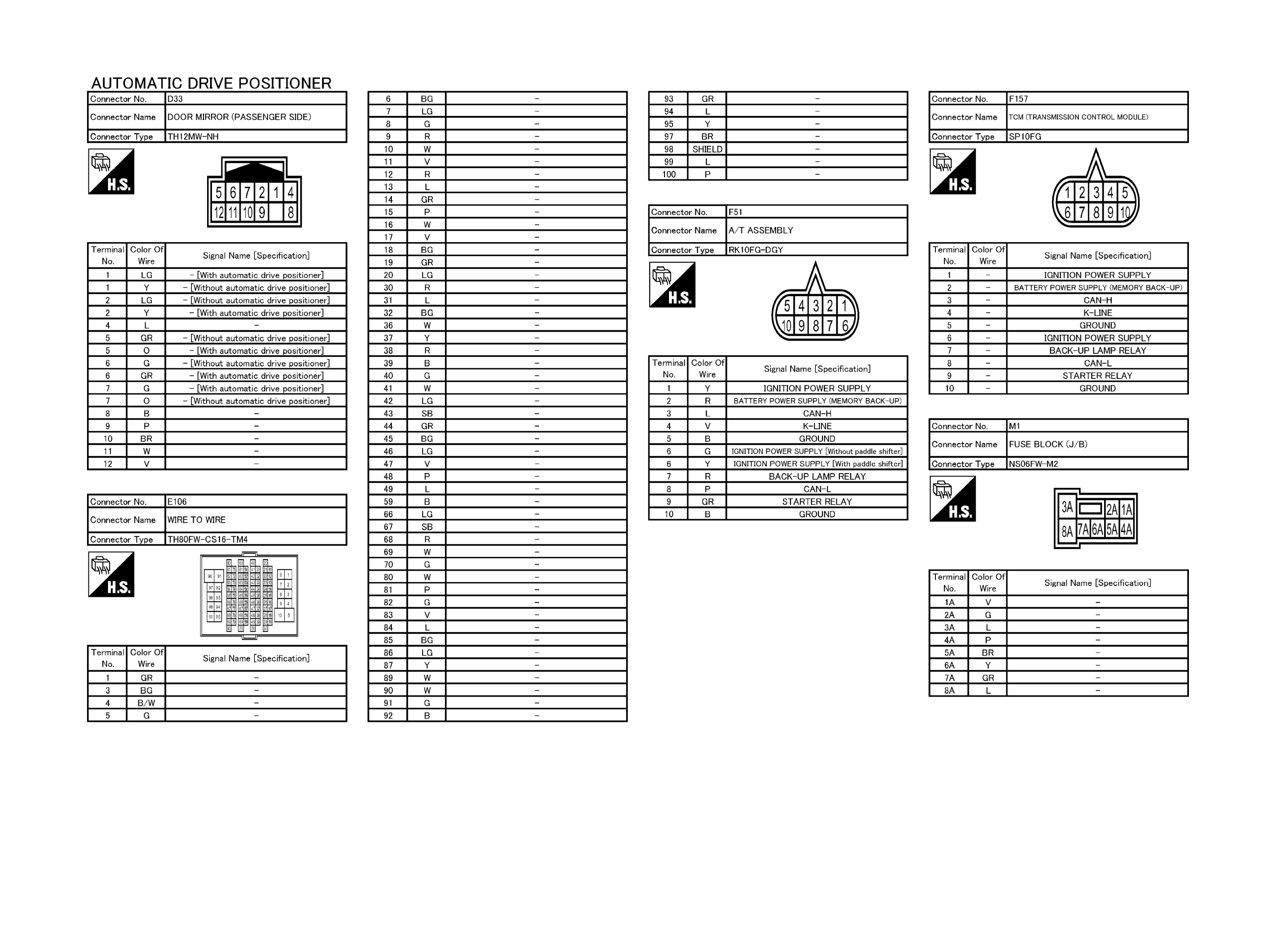

Fig 4: Automatic Drive Positioner Control System Connector End Views (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

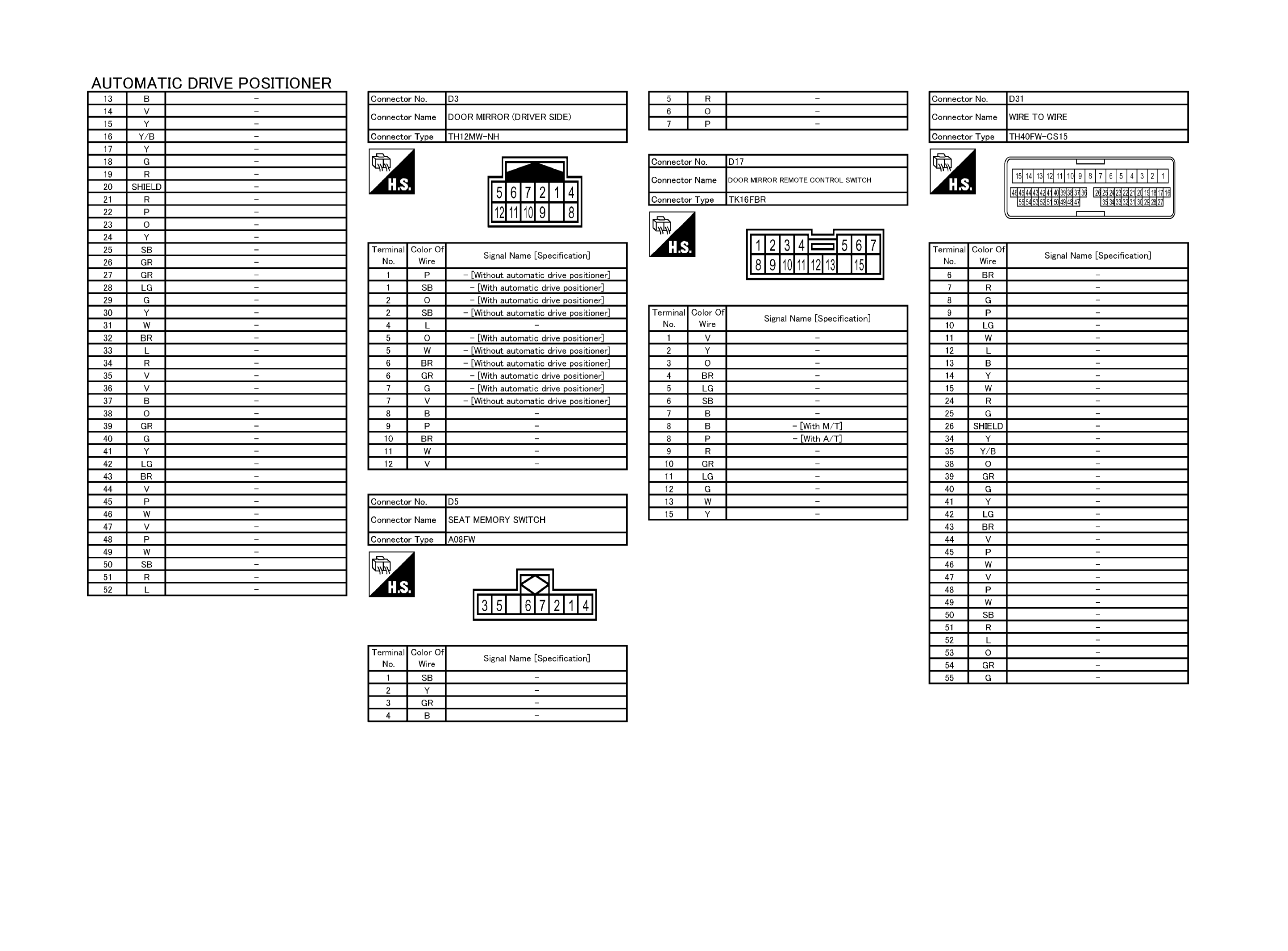

Fig 5: Automatic Drive Positioner Control System Connector End Views (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

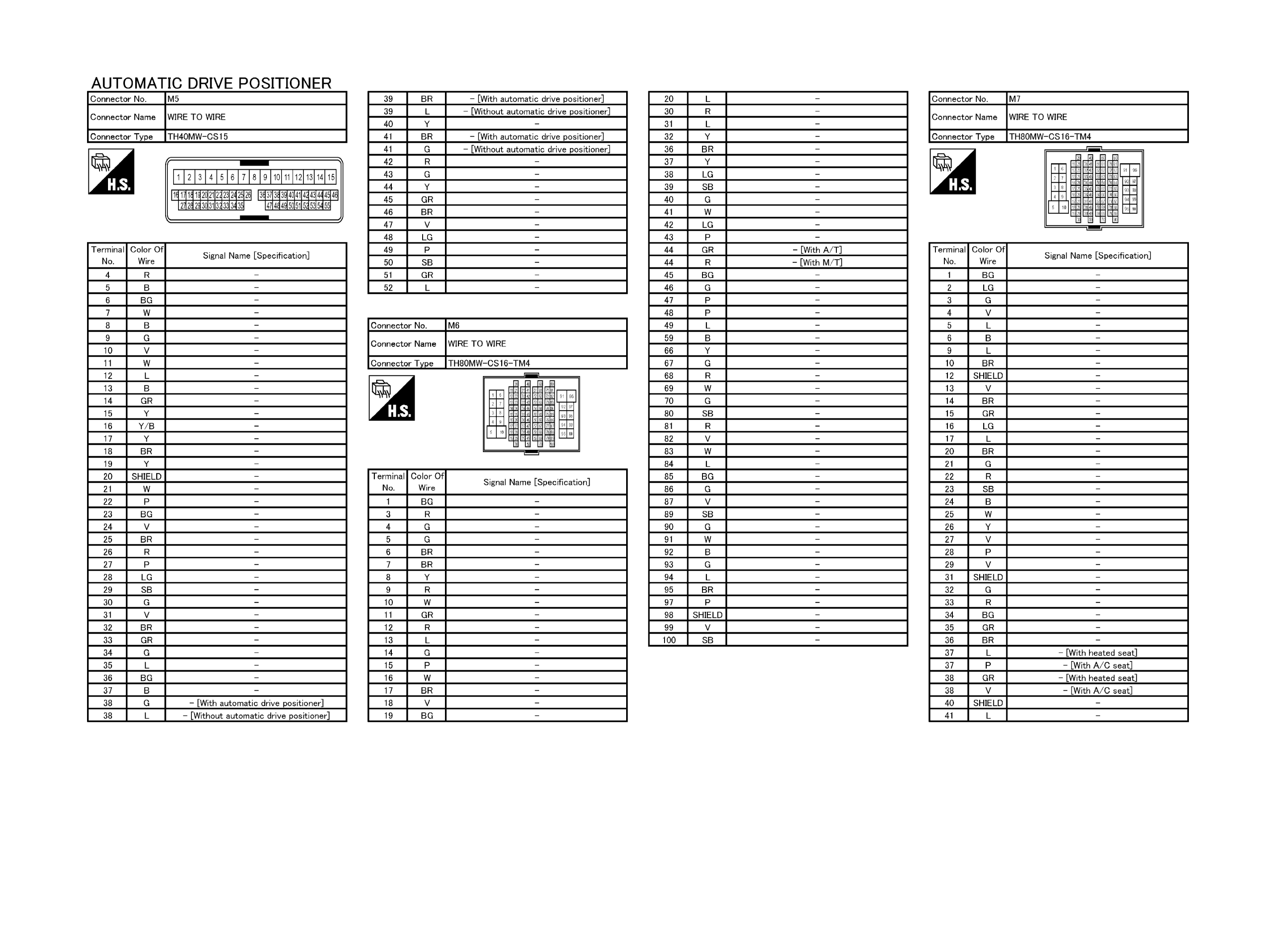

Fig 6: Automatic Drive Positioner Control System Connector End Views (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

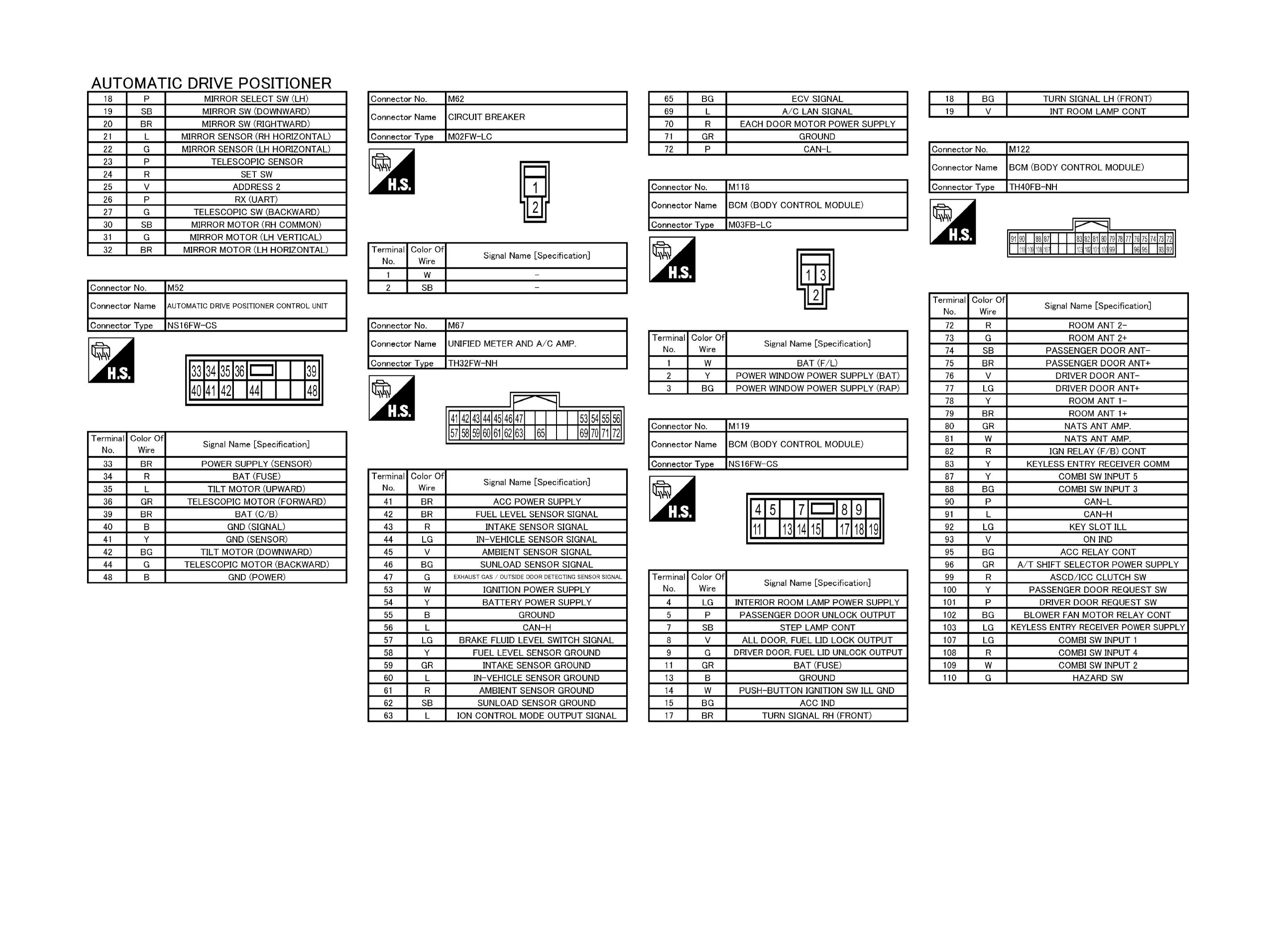

Fig 7: Automatic Drive Positioner Control System Connector End Views (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Automatic Drive Positioner Control System Connector End Views (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

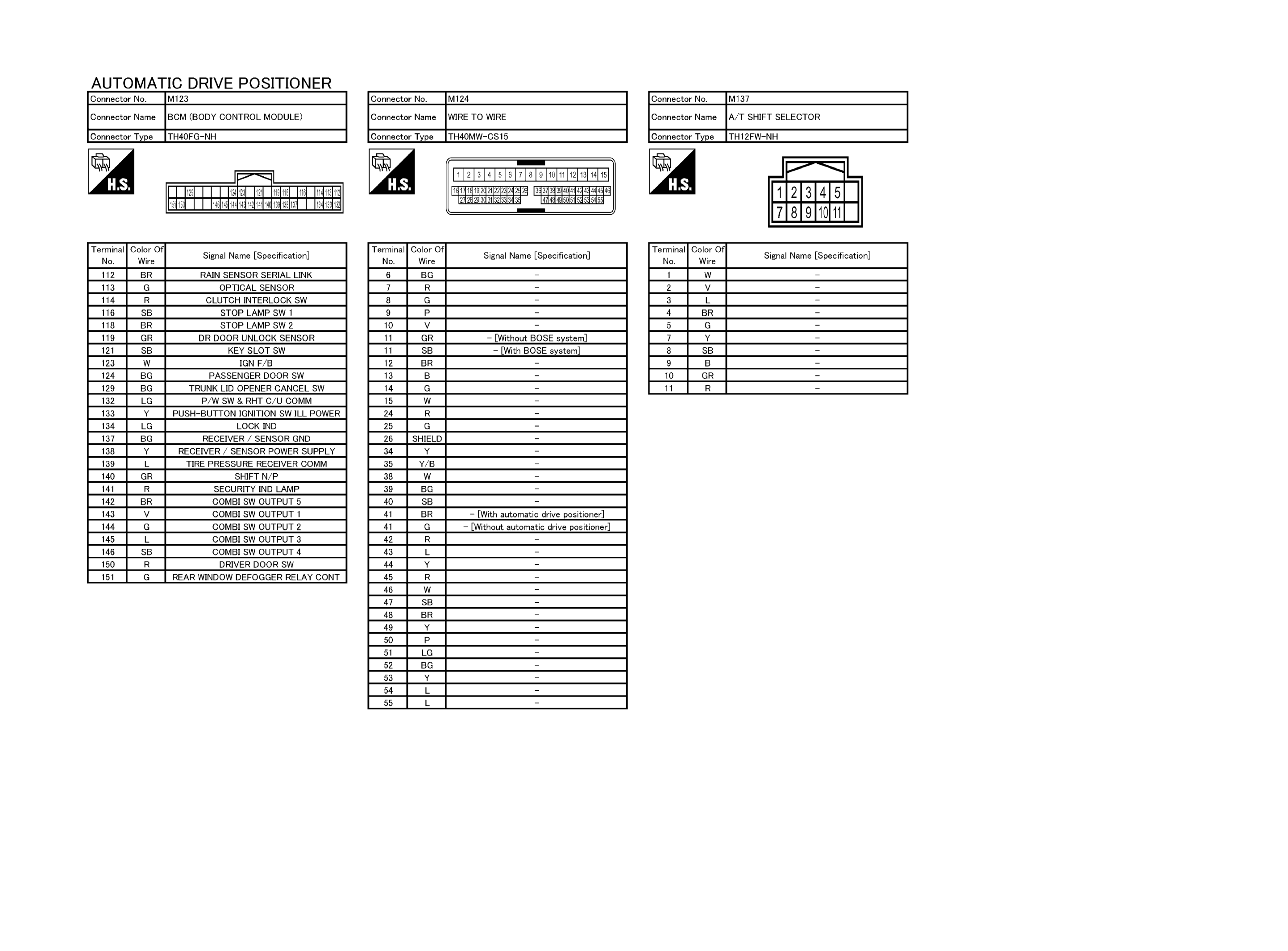

Fig 9: Automatic Drive Positioner Control System Connector End Views (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
