Exploded View With Torque Specifications

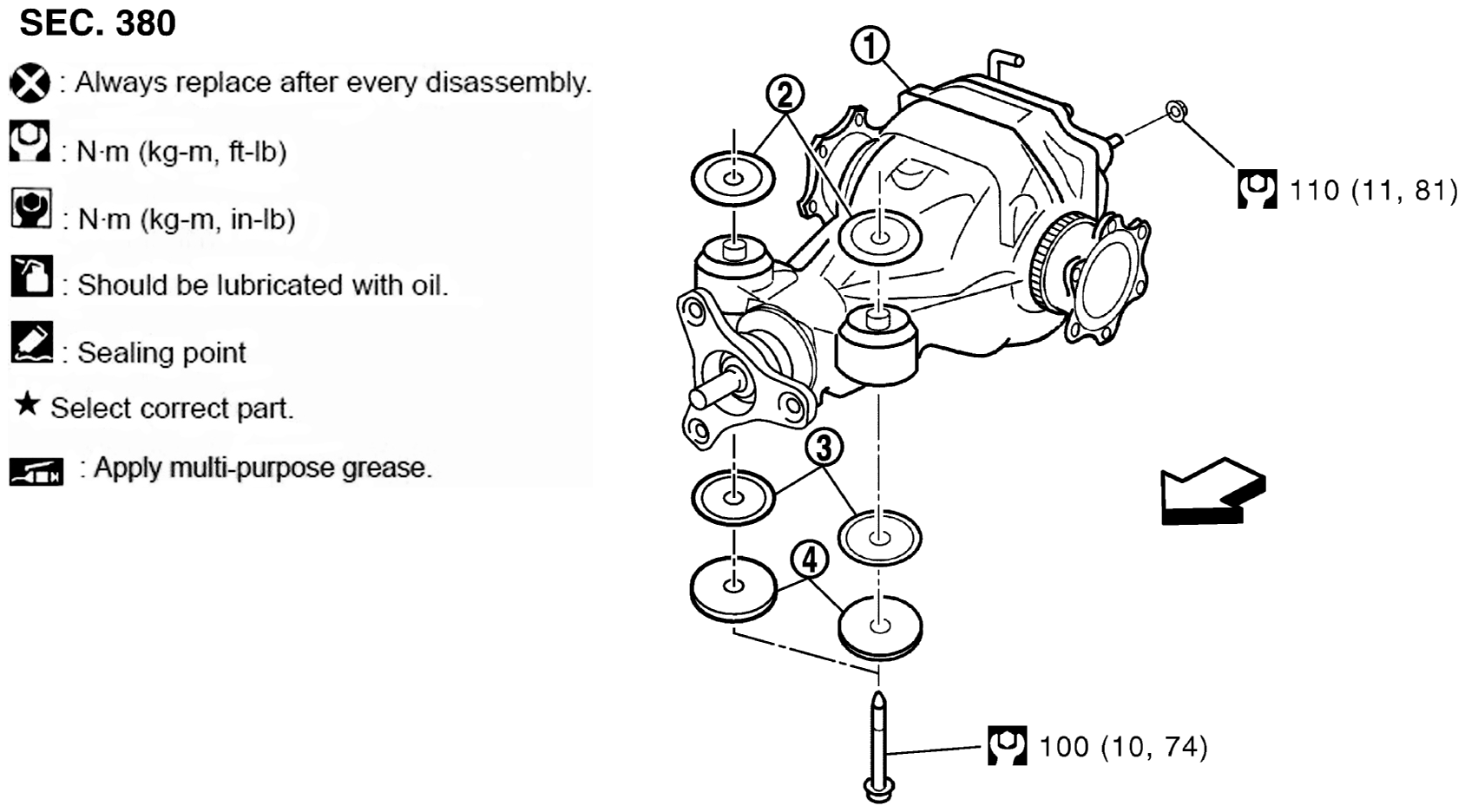

Fig 1: Exploded View Of Rear Final Drive Assembly (A/T) With Torque Specifications
G08214606Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear final drive assembly 2. Upper stopper 3. Lower stopper
4. Washer
→: Vehicle front
Refer to COMPONENTS for symbols in the figure.
