Exploded View With Torque Specifications

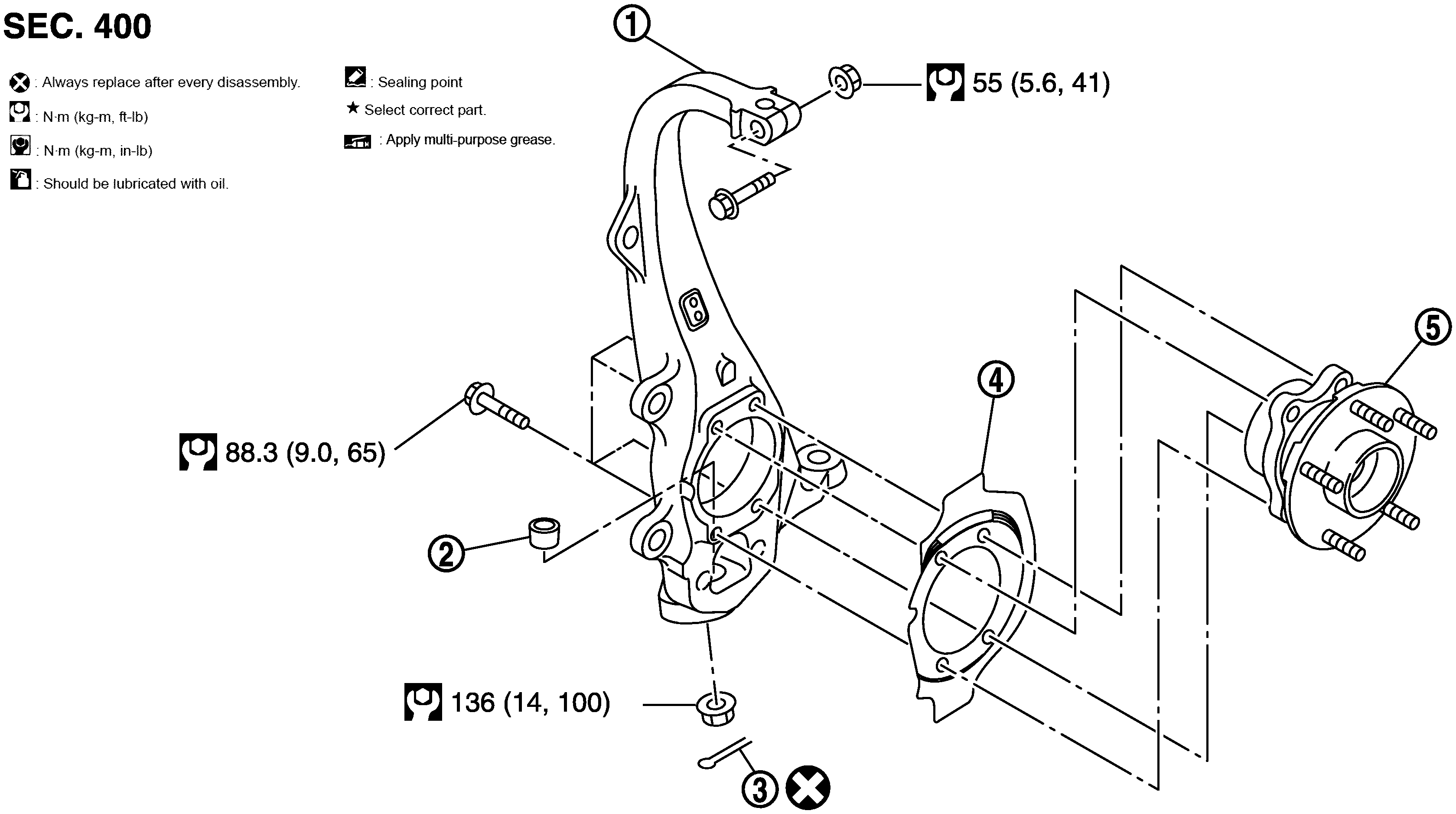

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications
GNSJPDIF0166GB-166Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering knuckle 2. Ball seat 3. Cotter pin
4. Splash guard 5. Wheel hub and bearing assembly
Refer to COMPONENTS for symbols in the figure.
