Exploded View With Torque Specifications

CENTER CONSOLE ASSEMBLY

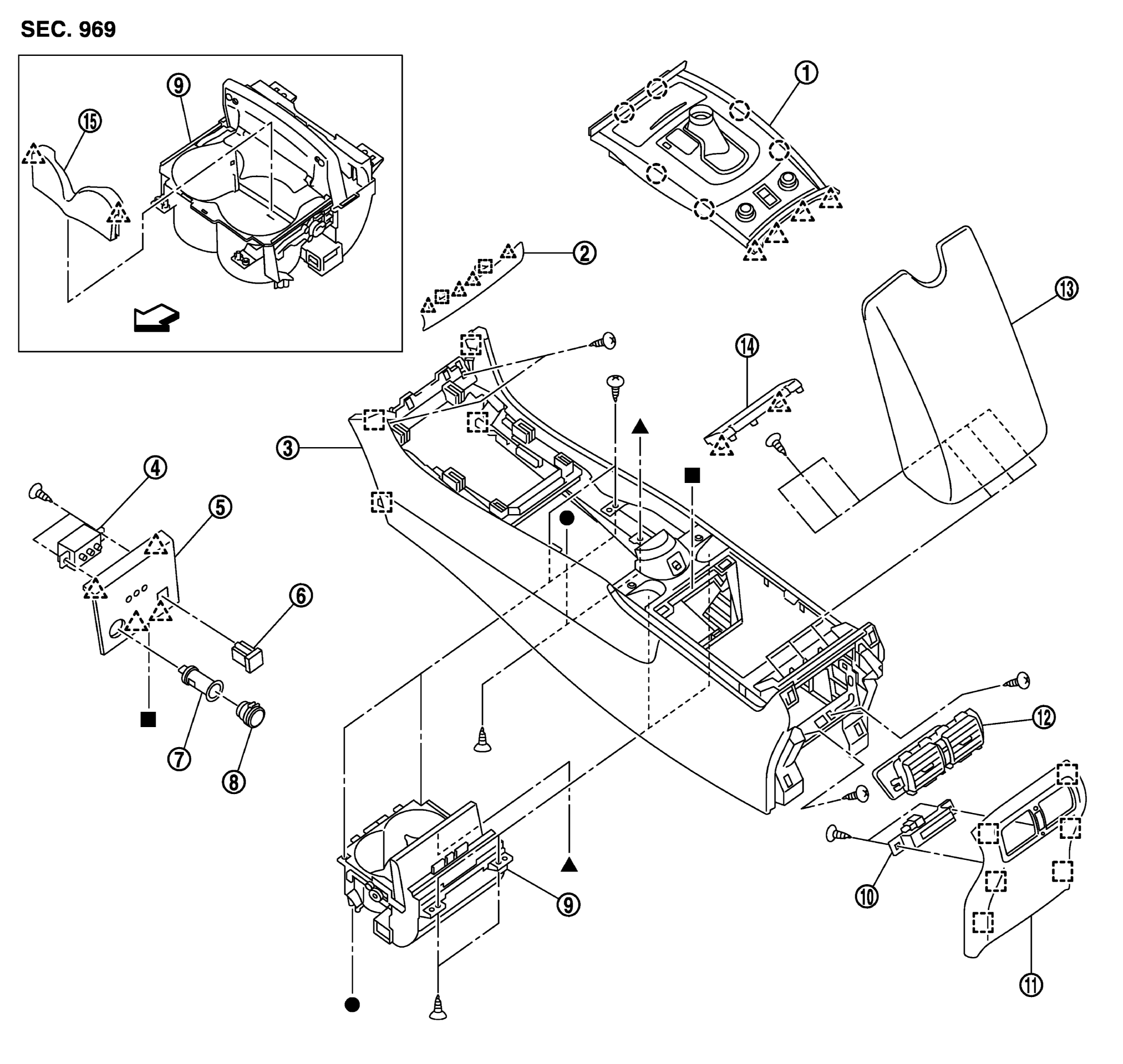

Fig 1: Exploded View Of Center Console Assembly (A/T Models)

G08450268

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Console finisher assembly	2.	Instrument finisher E	3.	Center console assembly
4.	Auxiliary input jacks (if equipped)	5.	Console center finisher	6.	USB connector (if equipped)
7.	Power socket inner case	8.	Socket knob	9.	Cup holder assembly
10.	Inside key antenna	11.	Console rear finisher	12.	Rear ventilator grille (if equipped)
13.	Console lid assembly	14.	Console mask	15.	Cup separator
◦	: Clip
Δ	: Pawl
□	: Metal clip
→	: Vehicle front
•, ■, Solid Triangle : Indicates that the part is connected at points with same symbol in actual vehicle.

CONSOLE FINISHER ASSEMBLY

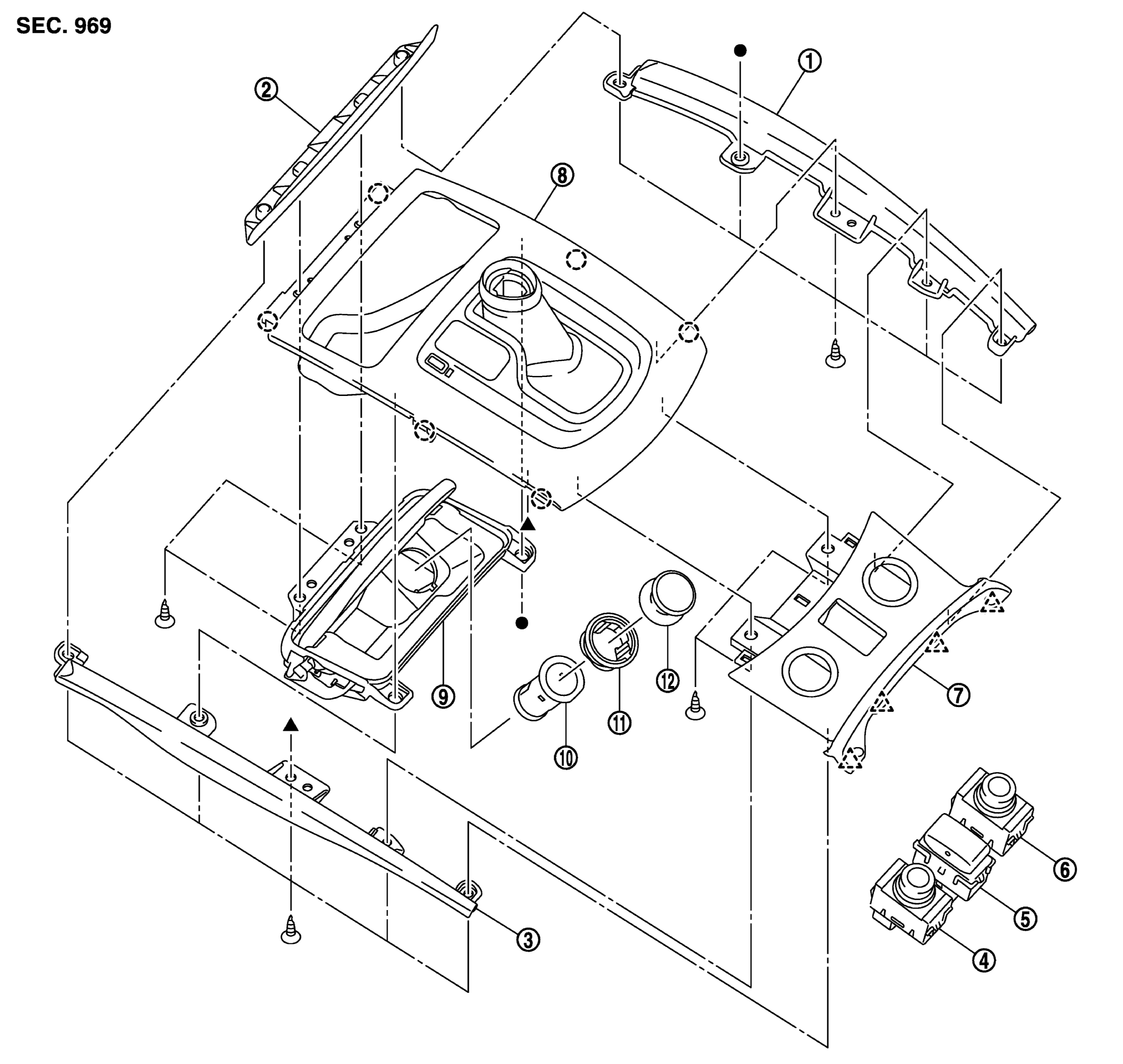

Fig 2: Exploded View Of Console Finisher Assembly

G08450269

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Console finisher escutcheon RH	2.	Console front finisher	3.	Console finisher escutcheon LH
4.	Heated seat switch (driver side) (if equipped)	5.	Switch (if equipped)	6.	Heated seat switch (passenger side) (if equipped)
7.	Switch panel	8.	AT control indicator assembly	9.	Console pocket assembly
10.	Power socket Inner case or Cigarette lighter case	11.	Socket ring	12.	Socket knob or Cigarette lighter
◦	: Clip
Δ	: Pawl
•, Solid Triangle: Indicates that the part is connected at points with same symbol in actual vehicle.
