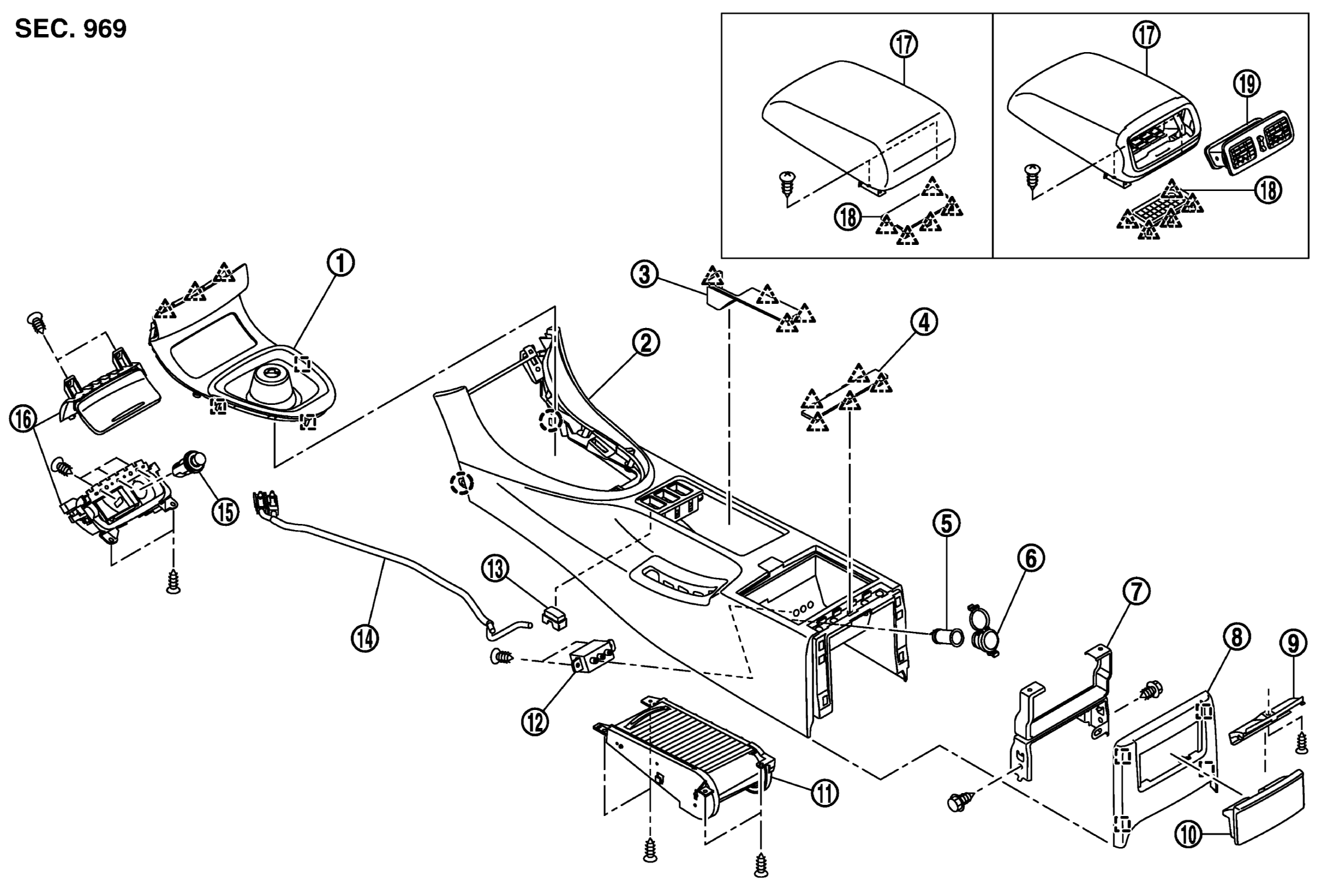

| 1. |
Console finisher assembly |
2. |
Center console assembly |
3. |
Coin pocket |
| 4. |
Console mask |
5. |
Power socket (if equipped) |
6. |
Socket knob (if equipped) |
| 7. |
Console rear bracket |
8. |
Console rear finisher |
9. |
Console ashtray bracket |
| 10. |
Console ashtray |
11. |
Cup holder assembly |
12. |
Auxiliary input jacks (if equipped) or USB connector (if equipped) |
| 13. |
Switch hole mask |
14. |
Console sub harness |
15. |
Power socket or Cigarette lighter |
| 16. |
Ashtray (front) or Coin pocket |
17. |
Console lid |
18. |
Console mask |
| 19. |
Rear ventilator grille (if equipped) |
|
|
|
|
| ◦ |
: Clip |
|
|
|
|
| Δ |
: Pawl |
|
|
|
|
| □ |
: Metal clip |
|
|
|
|
